Model
GE JVM1530DM1WW
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1530DM1WWMicrowave Or Advantium
1 diagram64 parts
Parts Sections (1)
Diagram

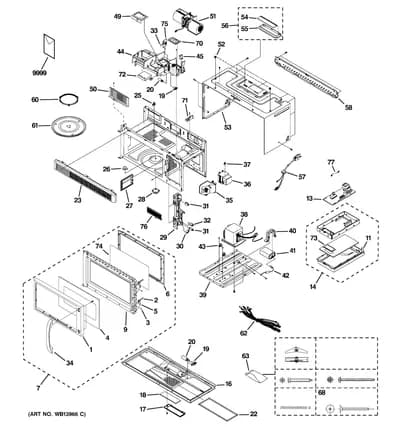

MICROWAVE
Parts in MICROWAVE
64 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WB55X10613NLA DOOR OUTER FRAME | Discontinued |
| 2 | | WB05X10005NLA LATCH PAWL | Discontinued |
| 3 |  | PIN-HINGE | - |
| 4 | | SCREEN-DOOR(B) | - |
| 5 | | SPRING-KEY | - |
| 6 | | CHOKE COVER | - |
| 7 | | ASM DOOR, WW | - |
| 9 | | ASM DOOR E | - |
| 11 | | FRAME CONTROL PANEL | - |
| 13 |  | ASM P.C.B | - |
| 14 | | ASM CONTROL PANEL | - |
| 16 | – | WB56X10735 BASE BOTTOM | - |
| 17 |  | COVER-GLASS | $20.60 RepairClinic |
| 18 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 19 |  | SOCKET LAMP | $20.52 Parts Dr |
| 20 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 22 |  | FILTER-AIR | $42.78 Part Advantage |
| 23 | | WB07X11084NLA GRILLE | Discontinued |
| 25 |  | S/W THERMO | $41.34 RepairClinic |
| 26 | | WB06X10597NLA COUPLER | Discontinued |
| 27 | | COVER-MGT | $7.95 ApplianceParts Pro |
| 28 |  | WB26X10168NLA MOTOR DRIVE | Discontinued |
| 29 |  | LATCH-BODY | $49.91 Part Advantage |
| 30 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 31 |  | WB24X829replaces WB24X10038 SWITCH | $21.93 Part Advantage |
| 32 |  | WB24X830replaces WB24X10075 SWITCH-MICRO | $23.03 Part Advantage |
| 33 |  | WB27X10928replaces WB27X10474 FUSE | $5.85 Part Advantage |
| 34 |  | HANDLE WH | $62.28 Parts Dr |
| 35 | | GUIDE AIR | - |
| 36 | | ASM - MGT | - |
| 37 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 38 | | TRANS H.V | - |
| 39 | | ASM BASE PLATE | $33.44 ApplianceParts Pro |
| 40 | | BRACKET-HVC | - |
| 41 | | C-OIL | - |
| 42 |  | WB27X10597replaces WB27X10772 H.V. DIODE | $42.18 Part Advantage |
| 43 | | WB27X10194NLA TCO HOOD | Discontinued |
| 44 | | DUCT UPPER | - |
| 45 |  | CAPACITOR- MOTOR | - |
| 49 | | BRACKET DUCT(U) | - |
| 50 | | BRACKET BARRIER | - |
| 51 | | WB26X10180NLA MOTOR VENTILATION | Discontinued |
| 52 | | PANEL-OUTER | - |
| 53 |  | NUT TOP MOUNTING | $7.08 Part Advantage |
| 54 |  | WB06X10436replaces WB06X10129 COVER-DAMPER | $33.72 Parts Dr |
| 55 | | WB06X10436replaces WB06X10133 DAMPER-MAIN | $33.72 Parts Dr |
| 56 | | HOOD DAMPER ASSY | $33.72 Parts Dr |
| 57 | | POWER CORD ASSY | $43.95 ApplianceParts Pro |
| 58 | | PLATE-MOUNTING | - |
| 60 | | ROLLER GUIDE ASSY | - |
| 61 |  | WB39X10003replaces WB49X10069 TRAY-COOKING | $85.90 Parts Dr |
| 62 | | WIRE HARNESS-A | - |
| 63 | | ASM - HARD WARE | - |
| 68 |  | BOLT-FLAT CAB MOUNTING | $9.01 Parts Dr |
| 70 | | BRACKET V/T CONNECTOR | - |
| 71 | | BRACKET V/T STOPPER | - |
| 72 | | BRACKET BARRIER | - |
| 73 | | DISPLAY WINDOW | - |
| 74 | | WB36X10068NLA FILM DOOR | Discontinued |
| 75 |  | NOISE FILTER ASM | $87.93 Parts Dr |
| 76 | | COVER FRONT | - |
| 77 |  | WIRE GND PCB | - |
| 9999 | – | 31-40067 MINI MANUAL | - |
| 9999 | – | 49-40542 USE & CARE | - |
