Model
GE JVM1533BD003
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1533BD003Microwave Or Advantium
1 diagram76 parts
Parts Sections (1)
Diagram

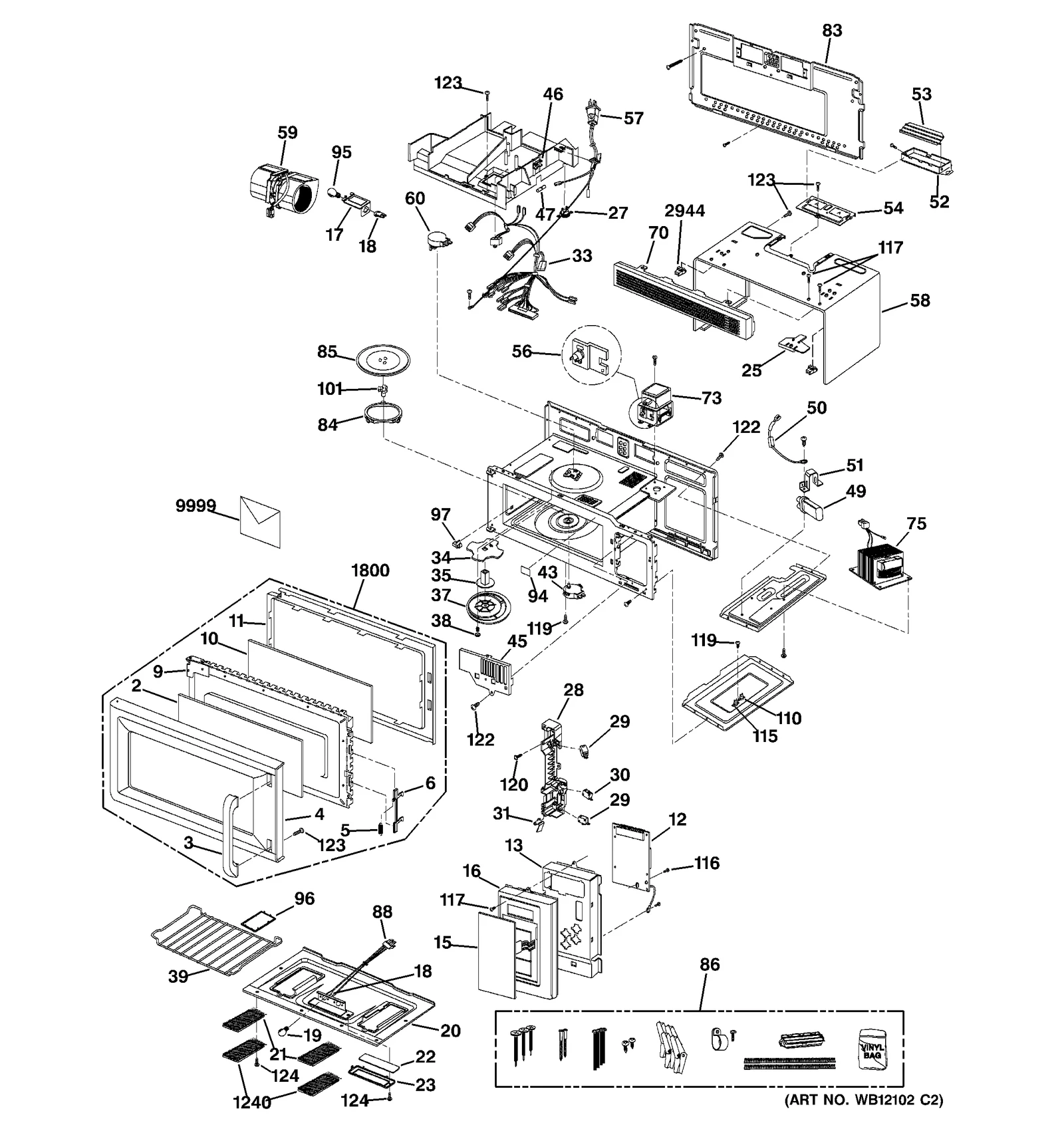

MICROWAVE
Parts in MICROWAVE
76 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | WB36X10195 OUTER GLASS,DOOR | - |
| 3 |  | HANDLE | - |
| 4 | | WB55X10723replaces WB55X10465 FRAME,OUTER DOOR | - |
| 5 | | WB09X10017NLA SPRING LATCH DOOR | Discontinued |
| 6 | | LATCH | - |
| 9 | – | WB55X10463 DOOR MAIN ASM | - |
| 10 | | FILM-DOOR | - |
| 11 | – | WB55X10460 CHOKE COVER | - |
| 12 | | SMART BOARD | - |
| 13 | | WB06X10363NLA BRACKET,CONTROL PANEL | Discontinued |
| 15 | | KEY PANEL | - |
| 16 | | WB07X10811replaces WB07X10466 CONTROL PANEL | - |
| 17 | – | WB06X10364 BRACKET-BOTTOM LAMP | - |
| 18 | | WB08X10022NLA SOCKET LAMP | Discontinued |
| 19 |  | WB36X10328replaces WB36X10132 LAMP | $12.61 Part Advantage |
| 20 | – | WB56X10236 BASE-BOTTOM | - |
| 21 |  | FILTER GREASE | $36.58 Part Advantage |
| 22 |  | WB36X10293replaces WB36X10197 GLASS COOKTOP LAMP | - |
| 23 | – | WB06X10372 BRACKET,COOKTOP GLASS | - |
| 25 | | WB06X10367NLA BRACKET ASM | Discontinued |
| 27 | | WB27X10789replaces WB27X10502 THERMOSTAT,BIMETAL | $6.43 Parts Dr |
| 28 |  | WB02X32720replaces WB06X10256 BOARD - LATCH | $8.84 Part Advantage |
| 29 |  | WB24X10047replaces WB24X0815 SWITCH MICRO | $25.95 Part Advantage |
| 30 |  | WB24X25397replaces WB24X0817 SWITCH MICRO | $18.38 Part Advantage |
| 31 | | WB06X10259NLA LEVER SWITCH-LOWER | Discontinued |
| 33 | – | WB18X10158 LEAD WIRE ASM | - |
| 34 | | BLADE-STIRRER | - |
| 35 | | WB02X10610NLA HOLDER,STIRRER FAN | Discontinued |
| 37 | | WB63X10018NLA COVER,STIRRER FAN | Discontinued |
| 38 |  | WB01X45506replaces WB01X10055 RIVET ASSY ALL | $12.85 PartSelect |
| 39 | – | WB48X10018 SHELF | - |
| 43 | | MOTOR SYNCHRONOUS | Discontinued |
| 45 | – | WB06X10369 PROTECTOR (MECH) | - |
| 46 | | FUSE HOLDER | - |
| 47 |  | WB27X10928replaces WB27X10388 FUSE | $5.85 Part Advantage |
| 49 | – | WB27X10418 CAPACITOR | - |
| 50 |  | DIODE-CABLE ASSY | $19.97 Part Advantage |
| 51 | – | WB06X10362 BRACKET[CAPACITOR] | - |
| 52 |  | WB02X32715replaces WB06X10371 EXHAUST ADAPTER | $9.51 Parts Dr |
| 53 |  | WB06X10565replaces WB06X10370 EXHAUST DAMPER | $12.15 Parts Dr |
| 54 | | MOUNT | - |
| 56 | | BRACKET ASM | - |
| 57 | | POWER CORD ASM | - |
| 58 | | WB56X10523replaces WB56X10235 OUTER CASE | - |
| 59 | | MOTOR VENTILATION | - |
| 60 | | STIRRER MOTOR | - |
| 70 | – | WB07X10465 GRILLE | - |
| 73 | | MAGNETRON | - |
| 75 | | WB27X10499NLA H.V.TRANSFORMER | Discontinued |
| 83 | | WB56X10233NLA PLATE MOUNTING ASM | Discontinued |
| 84 | | ROTATING RING ASM | - |
| 85 |  | WB49X10129replaces WB49X10067 COOKING TRAY | $70.26 Part Advantage |
| 86 | | WB01X10132NLA HARDWARE INSTALLATION | Discontinued |
| 88 | – | WB18X10159 LEAD WIRE ASM | - |
| 94 | – | 49-40204 LABLE COOKING GUIDE | - |
| 95 | | WB36X10294replaces WB36X10198 LAMP[OVEN/BASELESS] | - |
| 96 | | CANOPY,[RESIN] | - |
| 97 | | HOLDER | - |
| 101 | | WB06X10255NLA SHAFT- TURN TABLE | Discontinued |
| 110 |  | WB21X10148replaces WB20X10020 THERMOSTAT- BIMETAL | $14.13 Part Advantage |
| 115 | | THERMOSTAT,BIMETAL | - |
| 116 |  | WB02X10729replaces WB01X10122 SCREW HANDLE | - |
| 117 |  | SCREW TAPPING PAN HEAD | $7.95 ApplianceParts Pro |
| 119 | | SCREW - HAND | - |
| 120 | – | 4B70188B SPECIAL SCREW-D | - |
| 122 |  | WB1X1514replaces WB01X1514 SCREW TAPPING | $5.36 ApplianceParts Pro |
| 123 |  | WB1X1515replaces WB01X1515 SCREW TAPPING | $8.86 Parts Dr |
| 124 |  | PANEL-CONTROL MOUNTING | $11.42 RepairClinic |
| 1240 |  | WB02X33061replaces WB02X10776 CHARCOAL FILTER | $26.98 Part Advantage |
| 1800 | | DOOR ASM | - |
| 2944 |  | NUT ASSY | $15.09 Parts Dr |
| 9999 | – | 31-20965 MINI - MANUAL | - |
| 9999 | – | 49-40191-2 REAR WALL TEMPLATE | - |
| 9999 | – | 49-40191-3 MANUAL,OWNERS | - |
| 9999 | – | 49-40192 TOP CABINET TEMPLATE | - |
| 9999 | – | 49-40193-2 MANUAL,INSTALLATION | - |
