Model
GE JVM1540LM4CS
Microwave Or Advantium
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1540LM4CSMicrowave Or Advantium
7 diagrams68 parts
Parts Sections (7)
Diagram

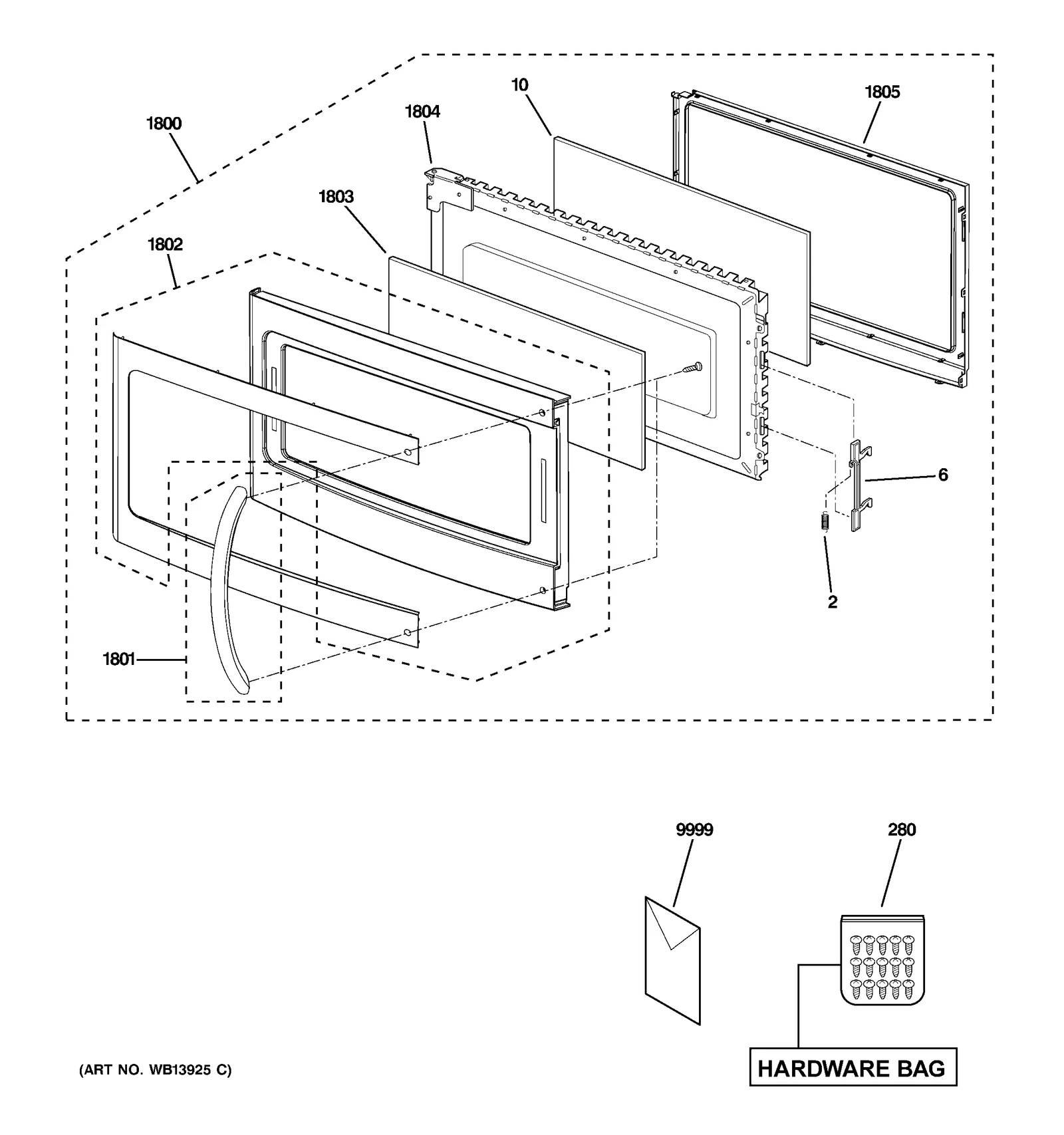

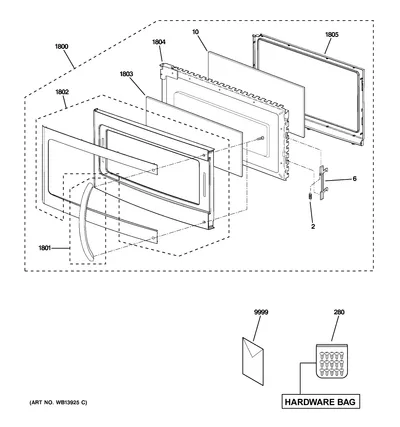

DOOR PARTS
Parts in DOOR PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WB09X10017NLA SPRING LATCH DOOR | Discontinued |
| 6 |  | LATCH | $18.74 RepairClinic |
| 10 | | WB36X10318NLA SEAL TAPE | Discontinued |
| 280 |  | WB02X32722replaces WB01X10305 OTR HARDWARE ASM BAG | $13.95 ApplianceParts Pro |
| 1800 | | WB56X26608replaces WB56X10707 DOOR ASM | - |
| 1801 |  | WB15X24435replaces WB15X10216 HANDLE ASM | - |
| 1802 | | DOOR PANEL | - |
| 1803 | | WB36X10329NLA WINDOW | Discontinued |
| 1804 | | DOOR FRAME ASM | - |
| 1805 | | COVER CHOKE | - |
| 9999 | – | 31-41050 MINI MANUAL | - |
| 9999 | – | 49-40528 USE & CARE | - |
| 9999 | – | 49-40529 INSTRUCTIONS INSTALL | - |
| 9999 |  | WB02X33061replaces WB02X10776 CHARCOAL FILTER | $26.98 Part Advantage |
