Model
GE JVM1630CK01
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1630CK01Microwave Or Advantium
1 diagram71 parts
Parts Sections (1)
Diagram

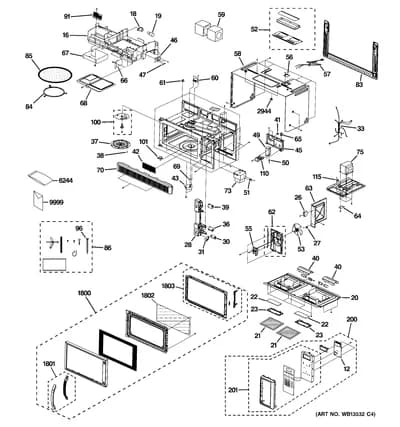

MICROWAVE
Parts in MICROWAVE
71 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 12 |  | PCB ASM | - |
| 16 | – | WB06X10678 AIR DUCT | - |
| 18 | | WB08X10049NLA LAMP HOLDER | Discontinued |
| 19 |  | WB36X10003replaces WB36X10306 LAMP | $8.37 Part Advantage |
| 20 | – | WB56X10624 BASE PLATE | - |
| 21 |  | GREASE FILTER | $53.39 Part Advantage |
| 22 | – | WB36X10307 LAMP GLASS | - |
| 23 | – | WB06X10609 LAMP BRACKET | - |
| 26 | – | WB27X10845 MOTOR CONDENSER | - |
| 27 |  | WB27X11213replaces WB27X10846 THERMOSTAT (MOTOR TCO) | $21.82 Part Advantage |
| 28 |  | LATCH BOARD | $36.26 Part Advantage |
| 30 |  | MICRO SWITCH(STAND ON) | $25.11 Part Advantage |
| 31 | – | WB06X10611 RELEASE LEVER | - |
| 33 | – | WB18X10280 LEAD WIRE ASM | - |
| 36 |  | WB24X10205replaces WB24X10147 MICRO SWITCH(STAND CLOSE | $41.31 Part Advantage |
| 37 | – | WB06X10612 STIRRER COVER | - |
| 38 | | RIVET | - |
| 39 |  | WB24X10204replaces WB24X10148 MICRO SWITCH(STAND ON) | $46.40 Part Advantage |
| 40 | – | WB06X10614 LAMP COVER-BASE | - |
| 41 | – | WB06X10615 POWER CORD HOLDER | - |
| 42 | – | WB06X10616 PROTECTOR-RIGHT | - |
| 43 |  | WB26X32190replaces WB26X10176 TURN TABLE MOTOR | $39.89 Part Advantage |
| 45 | – | WB06X10617 AIR BRACKET | - |
| 46 | | NOISE FILTER | - |
| 47 | | WB27X10847NLA FUSE | Discontinued |
| 49 | | HVCAPACITOR | - |
| 50 |  | WB26X28935replaces WB27X10849 HVDIODE | $36.44 Parts Dr |
| 51 | | THERMOSTAT (MGT TCO) | - |
| 52 | – | WB06X10620 VENT MOTOR COVER ASM | - |
| 53 | | FAN | - |
| 55 | | FAN MOTOR | - |
| 56 | – | WB06X10621 POWER CORD BRACKET | - |
| 57 | – | WB18X10281 POWER CORD | - |
| 58 | – | WB56X10627 OUTER CASE | - |
| 59 | | VENT MOTOR | - |
| 60 |  | STIRRER FAN MOTOR | - |
| 61 |  | WB27X11208replaces WB27X10851 THERMOSTAT (OVEN TCO) | $9.24 Part Advantage |
| 62 | – | WB06X10622 FAN GUIDE ASM | - |
| 63 | – | WB06X10623 AIR GUIDE-R | - |
| 64 | – | WB06X10618 LEAD WIRE BACKET | - |
| 65 | – | WB02X11258 WIRE HOLDER | - |
| 66 | – | WB01X10310 NOISE BRACKET | - |
| 67 | – | WB06X10677 AIR BRACKET LT | - |
| 68 | – | WB06X10624 CAVITY LAMP COVER | - |
| 69 | – | WB02X11259 WATER SEAL | - |
| 70 | – | WB07X10901 VENT GRILLE | - |
| 73 | | WB27X10852NLA MAGNETRON | Discontinued |
| 75 | | HIGH VOLTAGE TRANSFORMER | - |
| 83 | | MOUNTING PLATE | - |
| 84 |  | ROTATING RING ASM | $21.63 Parts Dr |
| 85 |  | GLASS TRAY | - |
| 86 |  | INSTALLATI0N HARDWARE | - |
| 91 | – | WB06X10626 AIR PROTECTOR | - |
| 96 | | MOUNTING SCREW | - |
| 100 | – | WB06X10627 STIRRER FAN ASM | - |
| 101 | | WB06X10628NLA TURN TABLE SHAFT | Discontinued |
| 110 | – | WB06X10629 HVC BRACKET | - |
| 115 |  | WB27X11212replaces WB27X10854 THERMOSTAT (BOTTOM TCO) | $21.82 Part Advantage |
| 200 | – | WB07X10956 CONTROL PANEL ASM BQ | - |
| 201 | – | WB27X10884 CTRL PANEL SUB ASM BQ | - |
| 1800 | | DOOR ASM | - |
| 1801 | – | WB15X10182 HANDLE ASM BQ | - |
| 1802 | – | WB55X10811 SEAL TAPE | - |
| 1803 | | DOOR SUB ASM | - |
| 2944 | – | WB01X10300 MOUNTING NUT | - |
| 6244 | – | WB01X10301 SCREW ASM BAG | - |
| 9999 | – | 49-40443-1 INSTALLATION INSTRUCTION | - |
| 9999 | – | 49-40448 MINI MANUAL | - |
| 9999 | – | 49-40451 USE & CARE | - |
| 9999 | – | 49-40460 REAR WALL TEMPLATE | - |
| 9999 | – | 49-40461 TOP CABINET TEMPLATE | - |
