Model
GE JVM1630WB02
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1630WB02Microwave Or Advantium
1 diagram73 parts
Parts Sections (1)
Diagram

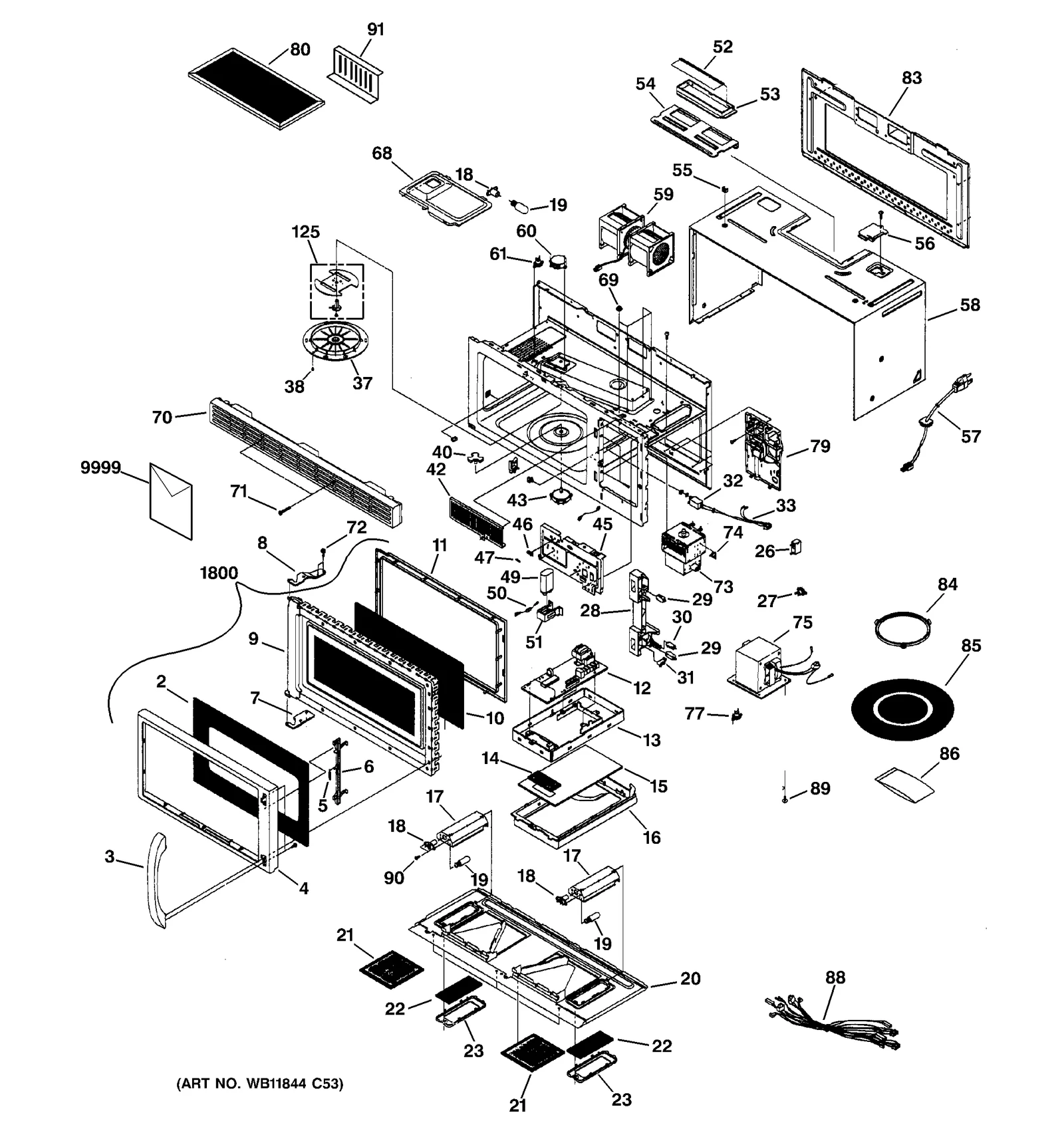

MICROWAVE
Parts in MICROWAVE
73 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WB36X10099NLA SCREEN-DOOR(B) | Discontinued |
| 3 |  | HANDLE | $55.10 Part Advantage |
| 4 | | WB55X10142NLA DOOR A | Discontinued |
| 5 | | SPRING, LATCH DOOR | - |
| 6 | | WB10X10012NLA DOOR KEY | Discontinued |
| 7 | | HINGE- LOWER | - |
| 8 | | HINGE- UPPER | - |
| 9 | | DOOR-E ASS'Y | - |
| 10 | | WB36X10068NLA FILM DOOR | Discontinued |
| 11 | | DOOR -C | - |
| 12 | | ASSY PCB | - |
| 13 | | BRACKET-CONTROL PANEL | - |
| 14 | | DISPLAY WINDOW | - |
| 15 | | SWITCH MEMBRANE | - |
| 16 | | CONTROL PANEL | $38.81 Parts Dr |
| 17 | | BRACKET-BOTTOM LAMP | - |
| 18 |  | WB08X10016replaces WB08X10011 SOCKET-LAMP | $20.52 Parts Dr |
| 19 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 20 | – | WB56X10112 BASE-BOTTOM | - |
| 21 |  | WB6X486replaces WB06X10125 FILTER-AIR | $61.31 Part Advantage |
| 22 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 23 |  | COVER LAMP | - |
| 26 |  | CAPACITOR- MOTOR | - |
| 27 | | WB27X10194NLA TCO HOOD | Discontinued |
| 28 | | LATCH-BODY | - |
| 29 |  | WB24X829replaces WB24X0829 SWITCH-MICRO | $21.93 Part Advantage |
| 30 |  | WB24X830replaces WB24X0830 SWITCH-MICRO | $23.03 Part Advantage |
| 31 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 32 | | SOCKET-PROBE | - |
| 33 | | WIRE HARNESS-B | - |
| 37 | | WB06X10130NLA COVER-STIRRER | Discontinued |
| 38 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 40 | | COUPLER | - |
| 42 | | WB06X10132NLA COVER-FRONT | Discontinued |
| 43 |  | MOTOR-SYNCHRONOUS | $16.41 Part Advantage |
| 45 | | BRACKET-AIR GUIDE "A" | - |
| 46 | | WB06X10050NLA FUSE-HOLDER | Discontinued |
| 47 |  | WB27X10928replaces WB27X1159 FUSE | $5.85 Part Advantage |
| 49 |  | CAPACITOR 2100V/0.86 MICROF | $92.35 Parts Dr |
| 50 |  | DIODE ASSY | $79.64 Part Advantage |
| 51 | | BRACKET-H V C | - |
| 52 |  | WB06X10436replaces WB06X10129 COVER-DAMPER | $33.72 Parts Dr |
| 53 | | WB06X10436replaces WB06X10133 DAMPER-MAIN | $33.72 Parts Dr |
| 54 | | BRACKET-V/T MOTOR | - |
| 55 |  | NUT TOP MOUNTING | $7.08 Part Advantage |
| 56 | | BRACKET-POWER CORD | - |
| 57 | | POWER CORD ASS'Y | - |
| 58 | – | WB56X10146 PANEL-OUTER | - |
| 59 | | WB26X10042NLA MOTOR-VENTILATION | Discontinued |
| 60 |  | MOTOR-DRIVE | $16.49 Parts Dr |
| 61 |  | S/W THERMO | $41.34 RepairClinic |
| 68 | | BRACKET-DUCT UPPER ASSY | - |
| 69 |  | NUT MAGNETRON | - |
| 70 | | WB07X10286NLA GRILLE ASS'Y | Discontinued |
| 71 | | SCREW-TAP PH | - |
| 72 | | BOLT-FLANGE | - |
| 73 |  | WB49X10226replaces WB27X10489 MAG/STIR KIT | - |
| 74 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 75 | | TRANS-H.V | - |
| 77 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 79 |  | WB26X10105replaces WB26X10051 COVER MOTOR ASS'Y | $125.51 Parts Dr |
| 83 | | WB56X10084NLA PLATE-MOUNTING | Discontinued |
| 84 |  | ROLLER GUIDE RING | $58.93 RepairClinic |
| 85 |  | WB39X10003replaces WB49X10002 COOKING-TRAY | $85.90 Parts Dr |
| 86 | | HARD WARE ASS'Y | - |
| 88 | | WIRE HARNESS A | - |
| 89 |  | SCREW WASHER | $7.37 ApplianceParts Pro |
| 90 | | WB01X10063NLA SCREW-SPECIAL | Discontinued |
| 91 | | BRACKET-FILTER | - |
| 125 |  | WB06X10416replaces WB06X10333 STIRRER ASS'Y | $27.37 ApplianceParts Pro |
| 1800 | | DOOR COMPLETE WH | - |
| 9999 | – | 31-20927 MINI-MANUAL | - |
| 9999 | – | 49-40081 USE&CARE | - |
