Model
GE JVM1631WJ01
Microwave Or Advantium
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1631WJ01Microwave Or Advantium
7 diagrams71 parts
Parts Sections (7)
Diagram

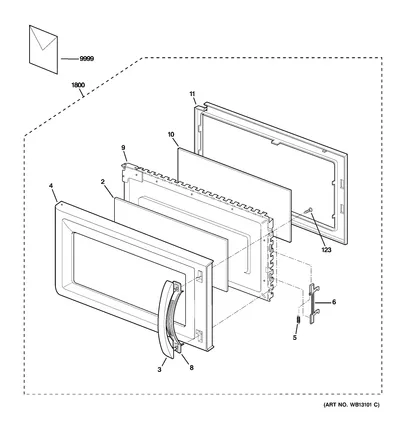

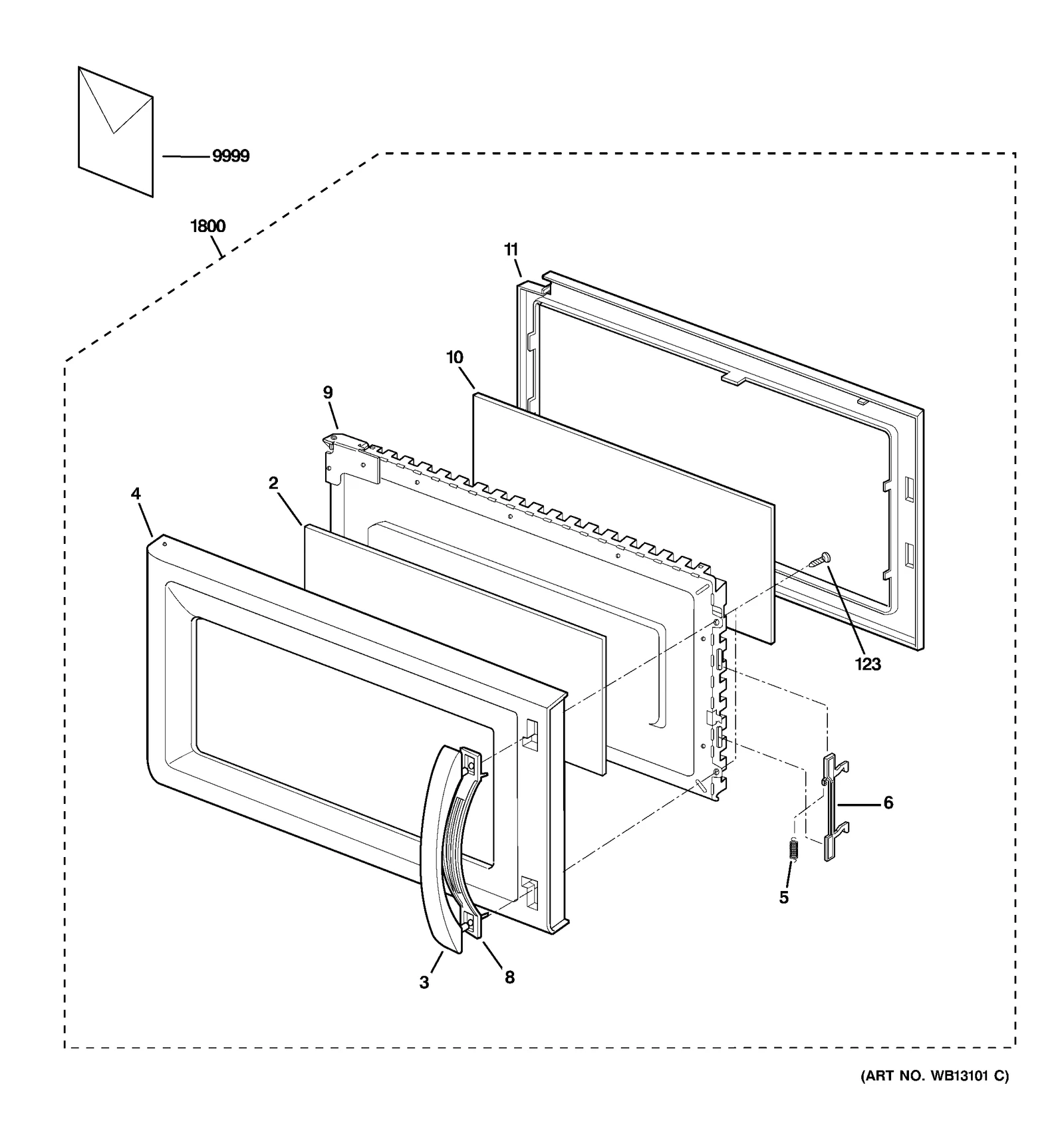

DOOR PARTS
Parts in DOOR PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WB36X10256NLA OUTER GLASS,DOOR | Discontinued |
| 3 | | WB15X10122NLA HANDLE,DOOR -L | Discontinued |
| 4 |  | WB55X10828replaces WB55X10655 PANEL,DOOR | - |
| 5 | | SPRING | - |
| 6 |  | WB02X11096replaces WB02X10717 LATCH | $18.74 RepairClinic |
| 8 | | HANDLE,DOOR -R | - |
| 9 | – | WB55X10459 DOOR MAIN ASM | - |
| 10 | | FILM-DOOR | - |
| 11 | – | WB55X10460 CHOKE COVER | - |
| 123 |  | WB1X1515replaces WB01X1515 SCREW TAPPING | $8.86 Parts Dr |
| 1800 | | WB56X10433NLA DOOR ASM WH | Discontinued |
| 9999 | – | 31-40307 MINI-MANUAL | - |
| 9999 | – | 49-40369 USE & CARE | - |
| 9999 | – | 49-40409 MANUAL,INSTALLATION | - |
| 9999 | – | 49-40410 TOP CABINET TEMPLATE | - |
