Model
GE JVM1640CJ01
Microwave Or Advantium
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1640CJ01Microwave Or Advantium
7 diagrams78 parts
Parts Sections (7)
Diagram

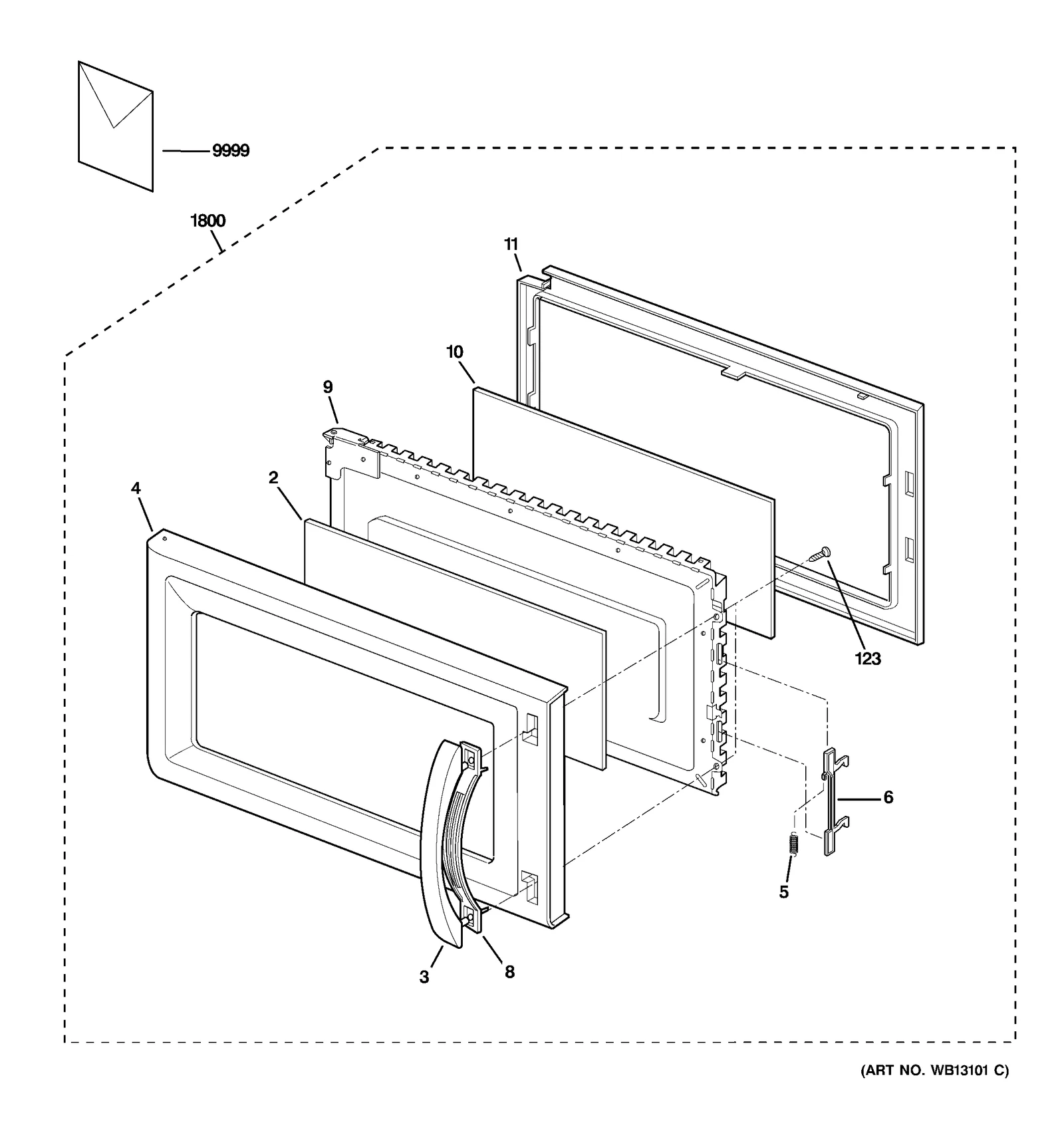

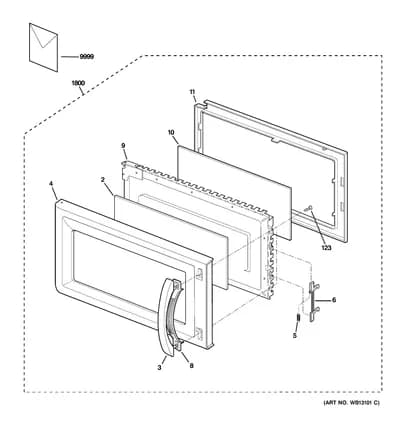

DOOR PARTS
Parts in DOOR PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | WB36X10257 OUTER GLASS,DOOR | - |
| 3 |  | HANDLE,DOOR -L | - |
| 4 | | WB55X10656NLA PANEL,DOOR | Discontinued |
| 5 | | SPRING | - |
| 6 |  | WB02X11096replaces WB02X10717 LATCH | $18.74 RepairClinic |
| 8 | | HANDLE,DOOR -R | - |
| 9 | | WB55X10815replaces WB55X10657 DOOR MAIN ASM | - |
| 10 | | SEAL TAPE | - |
| 11 | – | WB55X10460 CHOKE COVER | - |
| 123 |  | WB1X1515replaces WB01X1515 SCREW TAPPING | $8.86 Parts Dr |
| 1800 | | WB56X10435NLA DOOR ASSEMBLY BQ | Discontinued |
| 9999 | – | 31-40306 MINI-MANUAL | - |
| 9999 | – | 49-40370 USE & CARE | - |
| 9999 | – | 49-40409 MANUAL,INSTALLATION | - |
| 9999 | – | 49-40410 TOP CABINET TEMPLATE | - |
