Model
GE JVM172G01
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM172G01Microwave Or Advantium
2 diagrams110 parts
Parts Sections (2)

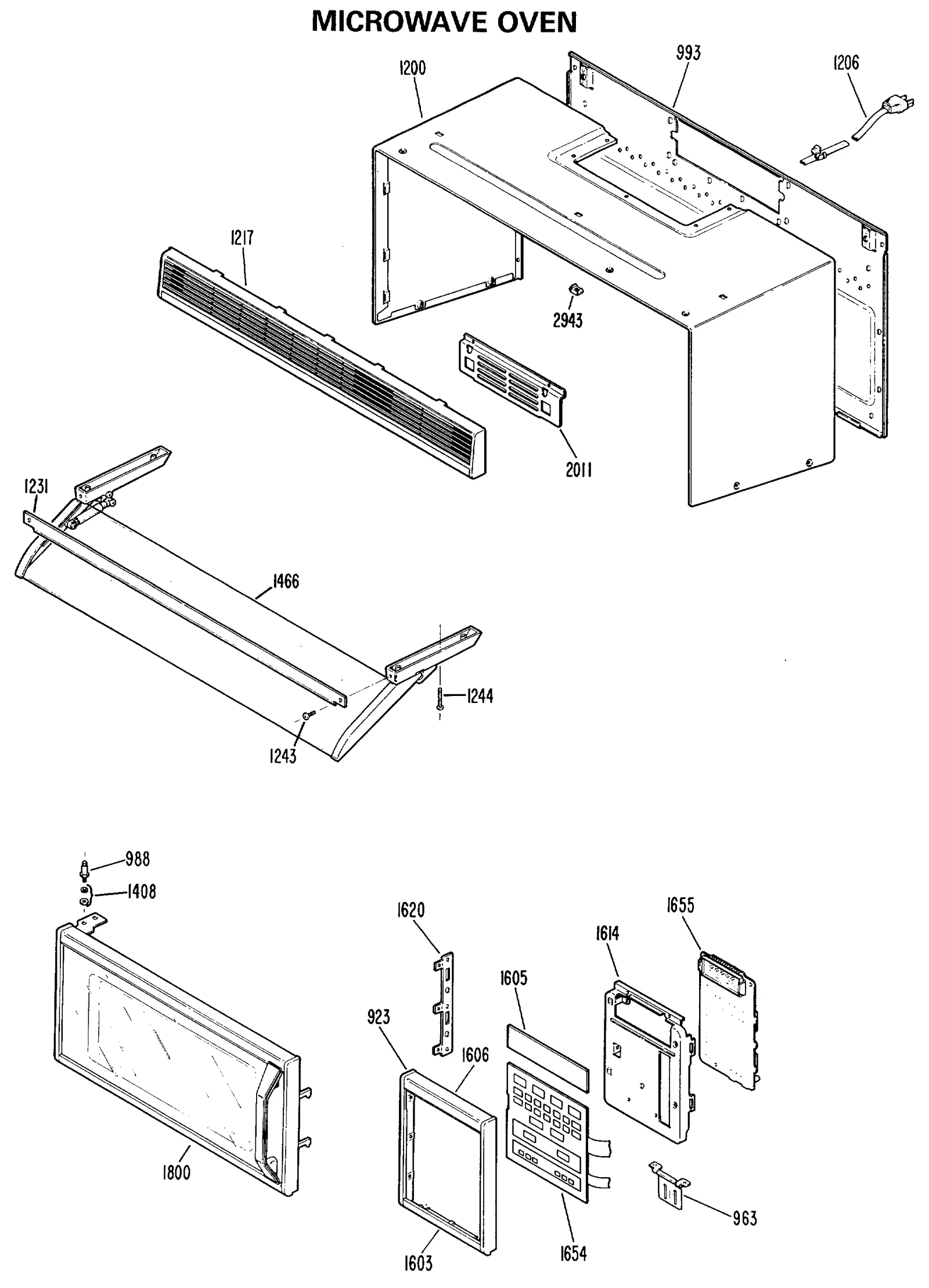

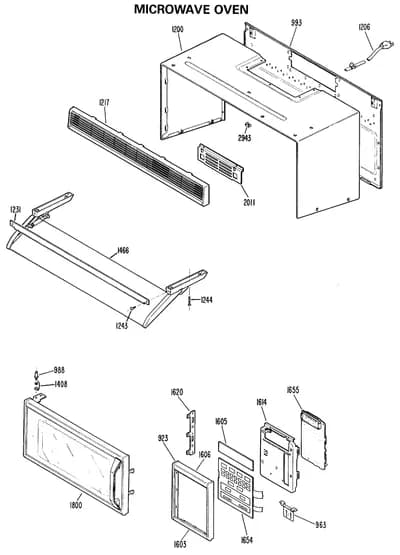

Diagram
MICROWAVE OVEN
Parts in MICROWAVE OVEN
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 923 | – | WB07X1610 CONTROL PANEL | - |
| 963 | – | WB14X0124 HINGE ASSEMBLY | - |
| 988 | – | WB01X0715 BOLT HINGE | - |
| 993 | – | WB56X1946 PLATE-BACK | - |
| 1200 | – | WB56X1936 OUTER CASE | - |
| 1206 | – | WB18X0345 POWER CORD ASS'Y | - |
| 1217 | – | WB07X1368 GRILLE | - |
| 1231 | – | WB02X4787 REFLECTOR-AIR | - |
| 1236 |  | WB2X4260replaces WB02X4260 CAM | - |
| 1243 | – | WB01X0867 SCREW | - |
| 1244 | – | WB01X0937 SCREW | - |
| 1408 | | WB01X0655NLA WASHER-SMOOTH | Discontinued |
| 1408 | – | WB01X0838 WASHER-TOOTHED | - |
| 1466 | – | WB49X0583 FLIPPER ASSEMBLY | - |
| 1603 | – | WB07X1422 TRIM-CONTROL PANEL-LOWER | - |
| 1605 | – | WB36X0676 CRYSTAL | - |
| 1606 | – | WB07X1421 TRIM-CONTROL PANEL-UPPER | - |
| 1614 | | WB2X9320replaces WB02X9320 BRACKET-CONTROL PANEL | - |
| 1620 | – | WB02X4264 BRACKET-FRONT PANEL | - |
| 1654 | – | WB27X0457 KEY PANEL ASM | - |
| 1655 | – | WB27X0453 SMART BOARD & DISPLAY | - |
| 1800 | – | WB55X0512 DOOR ASSEMBLY | - |
| 2011 | – | WB02X4266 BARRIER-FRONT | - |
| 2309 | – | WB27X0282 CAPACITOR | - |
| 2943 | – | WB01X0799 NUT HOLDER ASSEMBLY | - |
| 9999 | – | 49-4887 USE AND CARE BOOK | - |
| 32767 | – | 31-0687 INSTALLATION INSTRUCTION | - |
| 32767 | – | 31-0688 UNDER CABINET TEMPLATE | - |
| 32767 | – | 31-0689 WALL MOUNT TEMPLATE | - |
| 32767 | – | 49-4664 COOKBOOK | - |
| 32767 | | WB2X9339replaces WB02X9339 INSTALLATION HARDWARE | - |
| 32767 | | TOUCH UP-CAVITY (SPRAY) | - |
| 32767 | | TOUCH UP CAVITY (BRUSH) | - |
