Model
GE JVM172G02
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM172G02Microwave Or Advantium
2 diagrams117 parts
Parts Sections (2)
Diagram

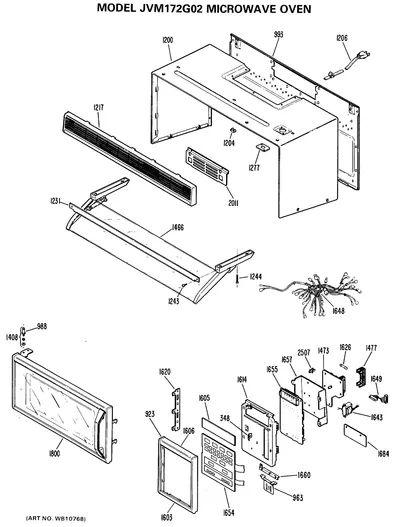

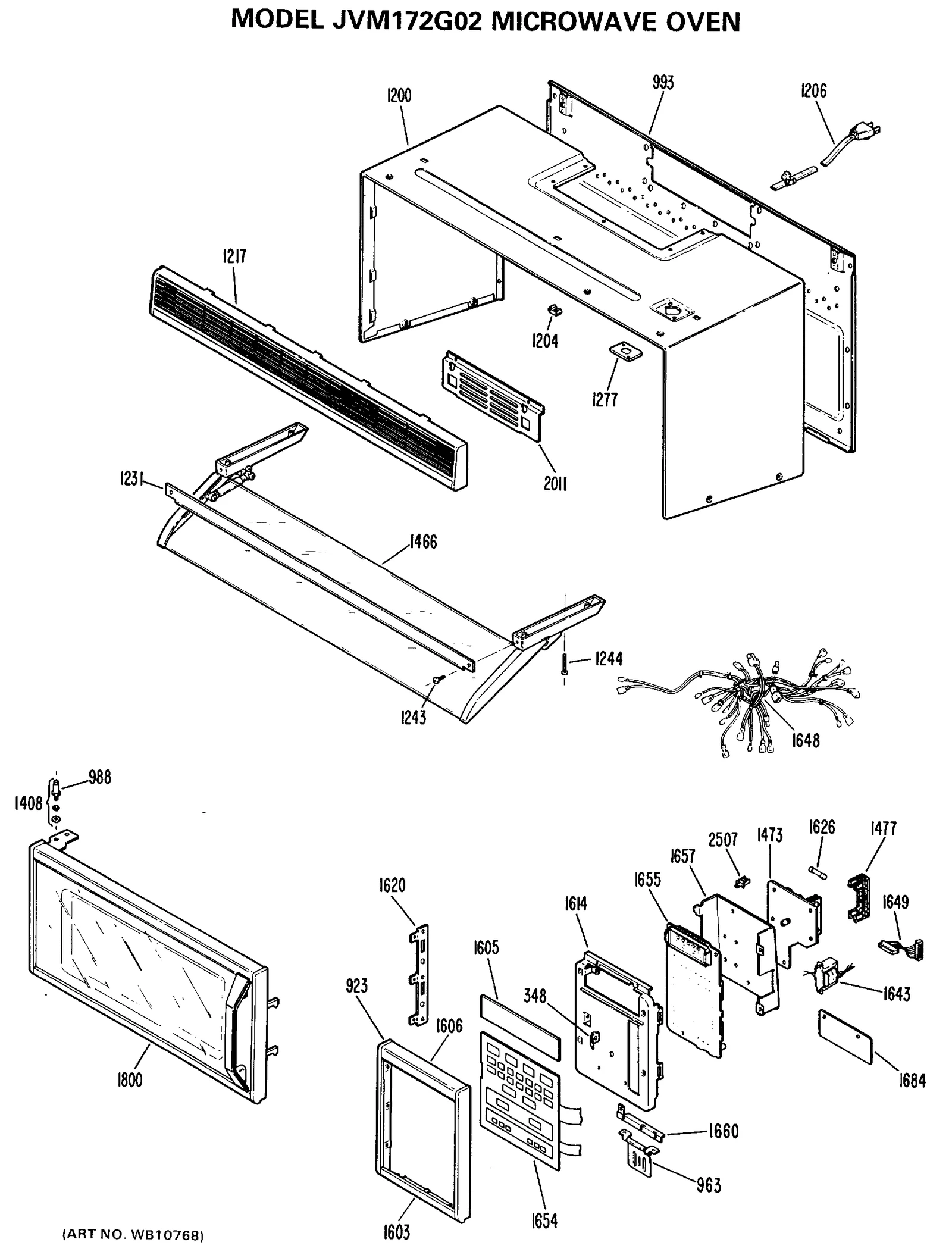

MICROWAVE OVEN
Parts in MICROWAVE OVEN
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 348 | – | WB02X4229 PLATE GROUND | - |
| 923 | – | WB01X0800 SCREW MTG TRIM | - |
| 923 | – | WB07X1369 TRIM CONTROL | - |
| 963 | – | WB14X0046 HINGE | - |
| 988 | – | WB01X0715 BOLT HINGE | - |
| 993 | – | WB56X1683 PLATE MOUNTING | - |
| 1200 | – | WB56X1684 CASE OUTER | - |
| 1204 | – | WB01X0799 NUT HOLDER ASSEMBLY | - |
| 1206 | – | WB18X5054 CORD POWER | - |
| 1217 | – | WB01X0796 SCREW-GRILLE MOUNTING | - |
| 1217 | – | WB07X1368 GRILLE | - |
| 1231 | – | WB02X4787 REFLECTOR-AIR | - |
| 1243 | – | WB01X0867 SCREW | - |
| 1244 | – | WB01X0937 SCREW | - |
| 1277 | – | WB02X4223 BRACKET-POWER CORD | - |
| 1408 |  | WB01X0655NLA WASHER-SMOOTH | Discontinued |
| 1408 | – | WB01X0838 WASHER-TOOTHED | - |
| 1439 |  | WB27X1160replaces WB27X0330 DIODE | $79.64 Part Advantage |
| 1466 | – | WB49X0583 FLIPPER ASSEMBLY | - |
| 1473 | – | WB27X0280 POWER CONTROL BOARD | - |
| 1477 | – | WB02X7065 SHIELD | - |
| 1603 | – | WB07X1422 TRIM-CONTROL PANEL-LOWER | - |
| 1605 | – | WB36X0676 CRYSTAL | - |
| 1606 | – | WB07X1421 TRIM-CONTROL PANEL-UPPER | - |
| 1614 | – | WB02X4225 BRACKET-CONTROL PANEL | - |
| 1620 | – | WB02X4264 BRACKET-FRONT PANEL | - |
| 1621 | | WB02X4627NLA FUSE HOLDER | Discontinued |
| 1626 |  | WB27X7replaces WB27X0007 FUSE | $7.92 Parts Dr |
| 1643 | – | WB27X0292 TRANSFORMER | - |
| 1648 | – | WB18X0217 WIRING HARNESS | - |
| 1649 | – | WB18X0296 HARNESS | - |
| 1654 | – | WB27X0288 KEY PANEL ASM | - |
| 1655 | – | WB27X0290 SMART BOARD & DISPLAY | - |
| 1657 | – | WB02X4226 SHIELD CASE | - |
| 1660 | – | WB02X4224 SUPPORT | - |
| 1684 | – | WB02X4228 BARRIER | - |
| 1800 | – | WB55X0512 DOOR ASSEMBLY | - |
| 2011 | – | WB02X4266 BARRIER-FRONT | - |
| 2507 | – | WB01X0716 SPACER | - |
| 32767 | – | 31-0615 INSTALL INSTRUCTIONS | - |
| 32767 | – | 31-0616 TEMPLATE TOP CABINET | - |
| 32767 | – | 49-4664 COOKBOOK | - |
| 32767 | – | 49-4783 MANUAL USERS | - |
| 32767 | – | WB02X4265 INTALLATION HARDWARE KIT | - |
