Model
GE JVM172J01
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM172J01Microwave Or Advantium
2 diagrams100 parts
Parts Sections (2)

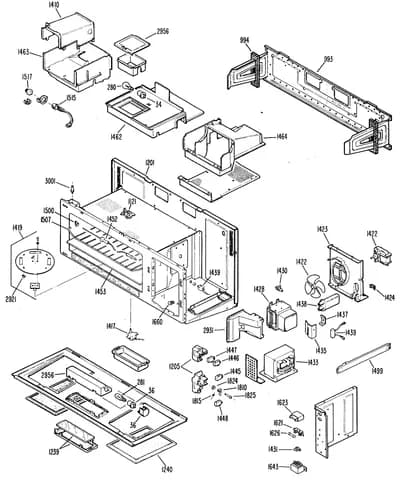

Diagram
Parts List
Parts in Parts List
70 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 34 | – | WB08X0275 SOCKET LAMP | - |
| 36 | – | WB08X0300 SOCKET-LAMP | - |
| 280 |  | WB36X10003replaces WB36X0822 LAMP | $8.37 Part Advantage |
| 281 | | WB36X10003replaces WB36X0821 COOKTOP LAMP | $8.37 Part Advantage |
| 993 |  | MOUNTING PLATE | - |
| 994 | – | WB06X0178 MOUNTING CUSHION | - |
| 1121 | | WB20X0146NLA UNKNOWN | Discontinued |
| 1201 | – | WB63X0443 UNKNOWN | - |
| 1205 | – | WB02X4890 LATCH BODY-LOWER | - |
| 1205 | – | WB02X9324 LATCH BODY-UPPER | - |
| 1210 | – | WB06X0304 BRACKET CASE | - |
| 1225 | – | WB07X1887 GRILLE ASSEMBLY | - |
| 1238 | | WB36X830replaces WB36X0830 BRACKET, COOKTOP GLASS | - |
| 1239 | – | WB36X0820 GLASS-COOKTOP LAMP | - |
| 1240 | | WB2X4263replaces WB02X4263 FILTER-AIR-BOTTOM | - |
| 1401 | – | NOT AVAIL CAVITY | - |
| 1410 | – | WB38X0129 DUCT EXHAUST LF. SIDE | - |
| 1417 | | WB26X0142NLA STIRRER MOTOR | Discontinued |
| 1419 | | WB2X242replaces WB06X0180 UNKNOWN | - |
| 1422 | – | WB26X0143 UNKNOWN | - |
| 1423 | – | WB63X0444 UNKNOWN | - |
| 1424 | – | WB06X0184 UNKNOWN | - |
| 1428 |  | WB27X10585replaces WB27X0706 MAGNETRON | $59.47 PartSelect |
| 1430 | – | WB21X0486 THERMOSTAT | - |
| 1431 |  | WB27X709replaces WB27X0709 THERMOSTAT | $24.09 Part Advantage |
| 1433 | – | WB27X0707 UNKNOWN | - |
| 1435 | – | WB02X4247 BARRIER | - |
| 1437 | – | WB06X0185 UNKNOWN | - |
| 1438 |  | WB27X10240replaces WB27X0598 CAPACITOR HV | $92.35 Parts Dr |
| 1439 |  | WB27X1160replaces WB27X0330 DIODE | $79.64 Part Advantage |
| 1445 | – | WB24X0328 SWITCH-MONITOR | - |
| 1446 |  | WB24X829replaces WB24X0426 SWITCH-PRIMARY | $21.93 Part Advantage |
| 1447 | – | WB24X0787 UNKNOWN | - |
| 1448 | | WB24X829replaces WB24X0414 SWITCH-SECONDARY | $21.93 Part Advantage |
| 1452 | | WB27X10178replaces WB20X0147 UNKNOWN | - |
| 1453 | – | WB49X0672 BOTTOM TRAY ASM | - |
| 1454 | – | WB20X0145 PROBE SOCKET ASSEMBLY | - |
| 1455 | – | WB06X0182 AIR GUIDE | - |
| 1462 | – | WB38X0126 MAIN DUCT | - |
| 1463 | – | WB38X0127 DUCT UPPER LEFT | - |
| 1464 | – | WB38X0128 DUCT UPPER RIGHT | - |
| 1499 | – | WB02X4257 BRACKET | - |
| 1500 | – | WB02X9934 SUPPORT RACK | - |
| 1507 | – | WB48X0223 WIRE RACK | - |
| 1515 | – | WB27X5392 SENSOR SOCKET ASSEMBLY | - |
| 1517 |  | WB27X1170replaces WB02X4513 GAS SENSOR ASSEMBLY | - |
| 1621 | | WB02X4627NLA FUSE HOLDER | Discontinued |
| 1623 |  | WB27X10170replaces WB27X0705 CAPACITOR MOTOR | - |
| 1626 |  | WB27X7replaces WB27X0696 FUSE | $7.92 Parts Dr |
| 1643 |  | WB27X708replaces WB27X0708 UNKNOWN | - |
| 1660 | – | WB02X9323 CABLE CLAMP | - |
| 1810 | – | WB10X0279 LATCH DOOR | - |
| 1812 | – | WB06X0300 BRACKET KEY DOOR | - |
| 1815 | | WB9X282replaces WB09X0282 SPRING LATCH DOOR | - |
| 1817 | – | WB14X0161 HINGE, UPPER | - |
| 1824 | – | WB06X0175 SUPPORT RING | - |
| 1825 | – | WB06X0174 PIN LATCH DOOR | - |
| 1827 | – | WB55X0762 OUTER DOOR | - |
| 1828 | – | WB07X1885 TRIM DOOR UPPER | - |
| 1829 | – | WB07X1886 TRIM DOOR LOWER | - |
| 1835 | | WB07X1892NLA COVER HANDLE (BLACK) | Discontinued |
| 2921 | – | WB06X0181 UNKNOWN | - |
| 2956 | – | WB06X0177 COVER LAMP | - |
| 3005 | – | WB01X1435 INSTALLATION HARDWARE | - |
| 3010 | | WB01X0894NLA SCREW SPECIAL | Discontinued |
| 7128 | – | WB01X1460 SCREW TRUSS HD. 4X12MM | - |
| 9999 | – | 31-0893 INSTALLATION INSTRUCTION | - |
| 9999 | – | 31-0897 TOP CABINET TEMPLATE | - |
| 9999 | – | 49-8078 COOKBOOK | - |
| 9999 | – | 49-8103 USE & CARE BOOK | - |
