Model
GE JVM1752SP1SS
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1752SP1SSMicrowave Or Advantium
1 diagram65 parts
Parts Sections (1)
Diagram

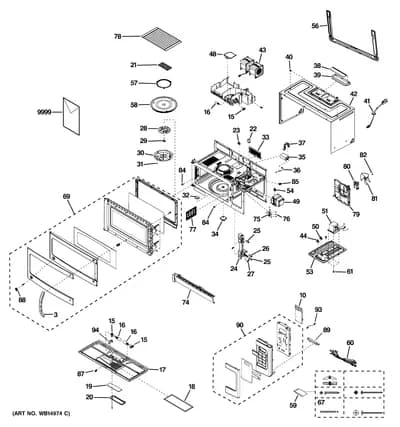

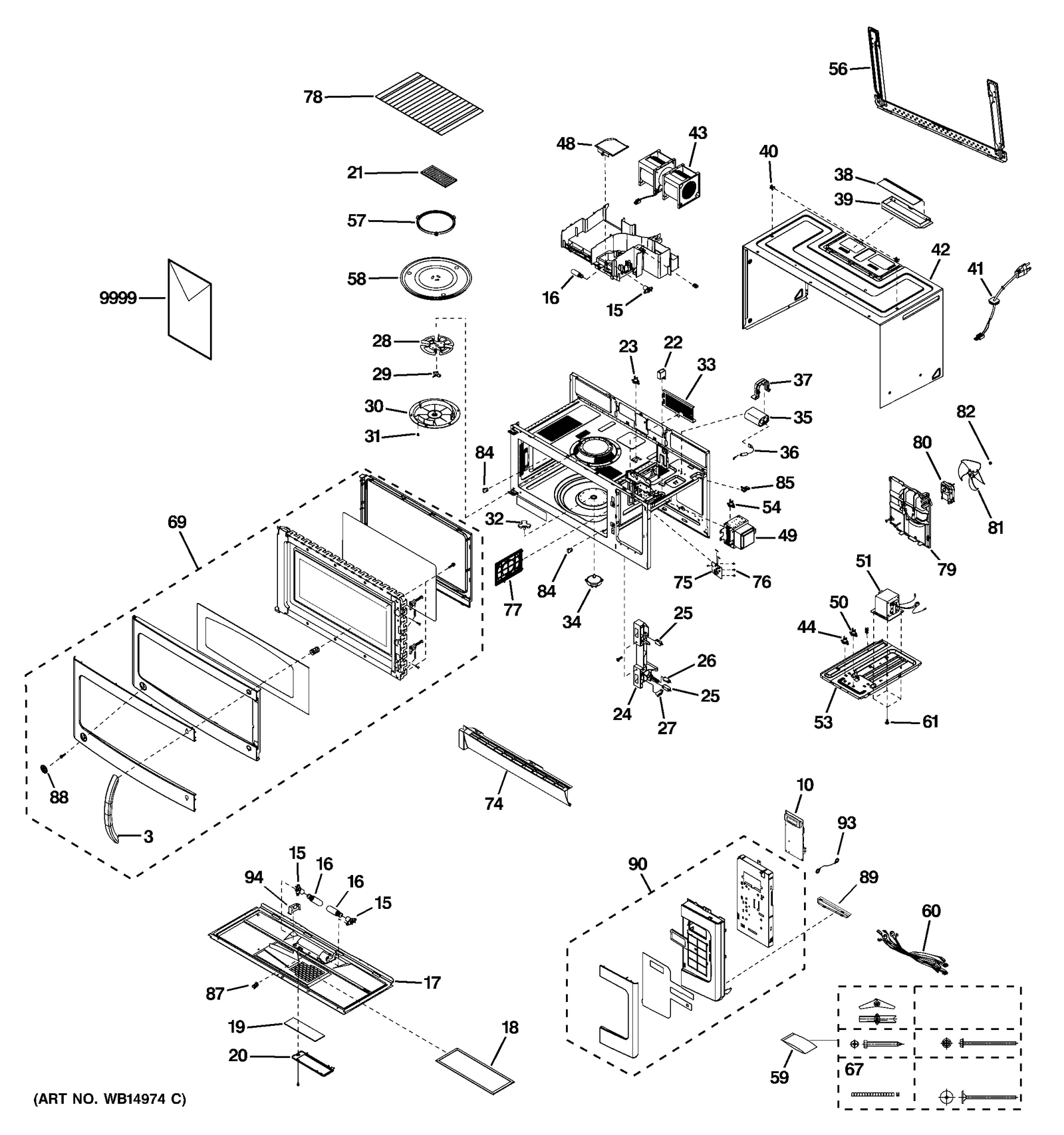

MICROWAVE
Parts in MICROWAVE
65 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | HANDLE ASM, SS | - |
| 10 | | WB27X11080NLA SMART BOARD | Discontinued |
| 15 |  | SOCKET LAMP | $20.52 Parts Dr |
| 16 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 17 | | BASE BOTTOM | - |
| 18 |  | FILTER-AIR | $42.78 Part Advantage |
| 19 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 20 |  | COVER-GLASS | $22.95 ApplianceParts Pro |
| 22 |  | CAPACITOR- MOTOR | - |
| 23 |  | S/W THERMO | $41.34 RepairClinic |
| 24 |  | LATCH-BODY | $49.91 Part Advantage |
| 25 |  | WB24X829replaces WB24X10038 SWITCH | $21.93 Part Advantage |
| 26 |  | WB24X830replaces WB24X10075 SWITCH-MICRO | $23.03 Part Advantage |
| 27 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 28 |  | BLADE-STIRRER | - |
| 29 |  | HOLDER-STIRRER | - |
| 30 |  | COVER-STIRRER | - |
| 31 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 32 |  | COUPLER | $41.83 Part Advantage |
| 33 | | COVER-FRONT | - |
| 34 |  | TURNTABLE, MOTOR | $27.23 Part Advantage |
| 35 |  | CAPACITOR 2100V/0.91 MICROF | $73.56 Part Advantage |
| 36 |  | WB27X10597replaces WB27X10817 H.V. DIODE | $42.18 Part Advantage |
| 37 |  | BRACKET-HVC | - |
| 38 | | COVER-DAMPER | $44.01 Parts Dr |
| 39 |  | WB06X10436replaces WB06X10133 DAMPER-MAIN | $33.72 Parts Dr |
| 40 |  | NUT TOP MOUNTING | $7.08 Part Advantage |
| 41 |  | POWER CORD ASM | - |
| 42 | | PANEL-OUTER, BB | - |
| 43 | | MOTOR-VENTILATION | - |
| 44 |  | WB27X709replaces WB27X0709 THERMOSTAT | $24.09 Part Advantage |
| 48 |  | COVER-LAMP | - |
| 49 |  | MAGNETRON ASM | $102.95 Part Advantage |
| 50 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 51 |  | TRANS-H.V | $86.02 RepairClinic |
| 53 | | BASE PLATE SUB ASM | - |
| 54 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 56 |  | PLATE MOUNTING ASM | $90.13 Parts Dr |
| 57 |  | GUIDE ROLLER, TT | - |
| 58 |  | WB49X10224replaces WB49X10222 TRAY-COOKING | $48.42 Parts Dr |
| 59 | | WB01X10405NLA HARDWARE ASM | Discontinued |
| 60 | | WIRE HARNESS-A | - |
| 61 |  | SCREW WASHER | $7.37 ApplianceParts Pro |
| 67 |  | BOLT-FLAT CAB MOUNTING | $9.01 Parts Dr |
| 69 | | WB55X10947NLA DOOR ASM SS | Discontinued |
| 74 | | WB07X11268NLA GRILLE | Discontinued |
| 75 |  | NOISE FILTER ASM | $87.93 Parts Dr |
| 76 |  | WB4X175replaces WB04X0175 SUPPORTER-PCB | $2.95 ApplianceParts Pro |
| 77 |  | COVER-MGT | - |
| 78 | | WB48X10070NLA RACK-WIRE | Discontinued |
| 79 |  | WB34X21786replaces WB26X10235 COVER-MOTOR | - |
| 80 | | MOTOR,FAN | - |
| 81 | | BLADE-FAN | - |
| 82 |  | SPRING-BLADE | - |
| 84 | | WB06X10824NLA HOLDER-RACK | Discontinued |
| 85 |  | HOLDER-WIRE | $3.30 RepairClinic |
| 87 | | WIRE-SADDLE | - |
| 88 | | BADGE LOGO | - |
| 89 | | CONTROL PANEL SUB | - |
| 90 | | WB07X11290NLA CONTROL PANEL ASM, SS | Discontinued |
| 93 |  | WIRE GND PCB | - |
| 94 | | BRACKET LAMP | - |
| 9999 | – | 31-41030 MINI MANUAL | - |
| 9999 | – | 49-40612 USE & CARE | - |
| 9999 | – | 49-40616 INSRTUCTION INSTALL | - |
