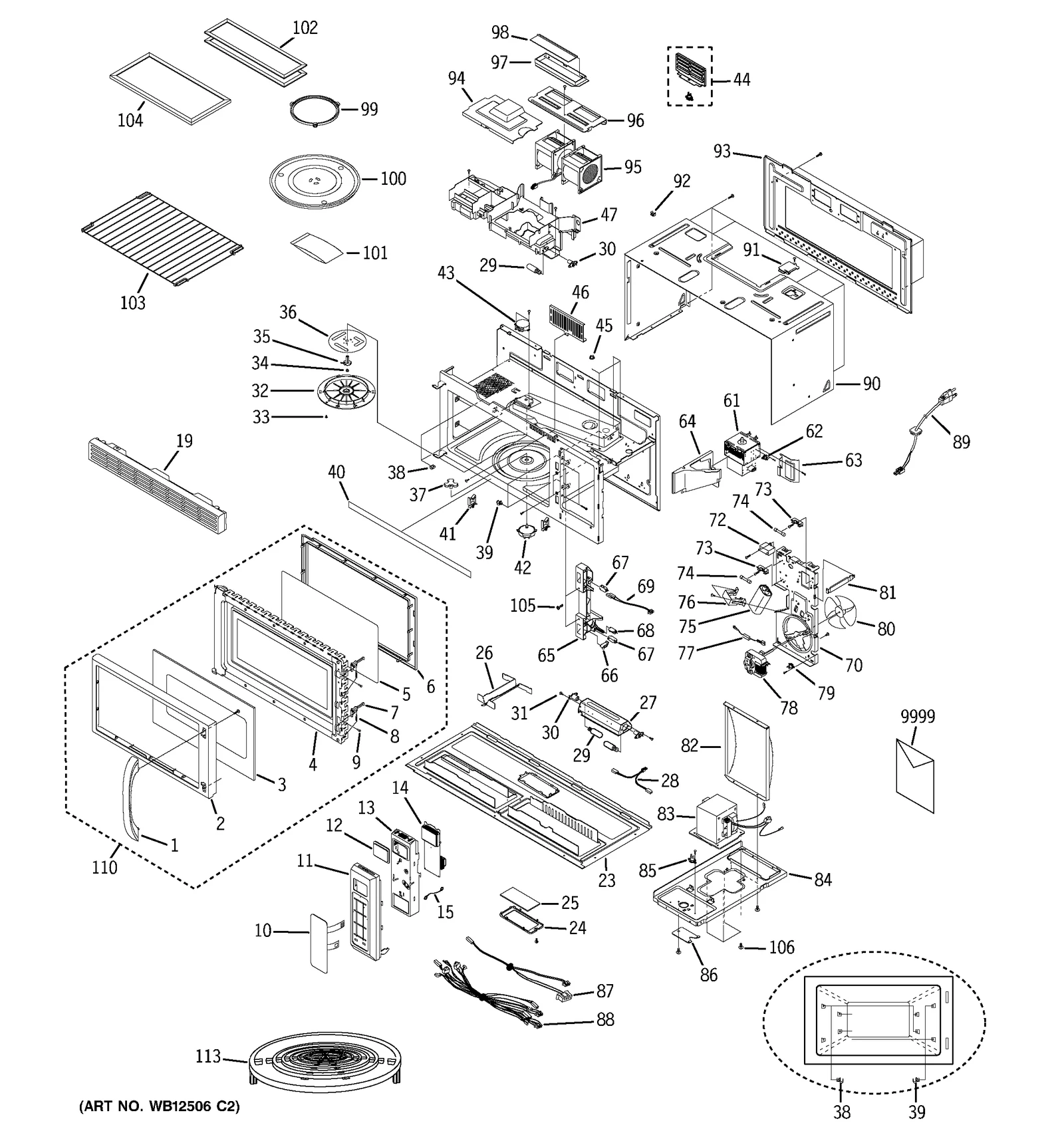

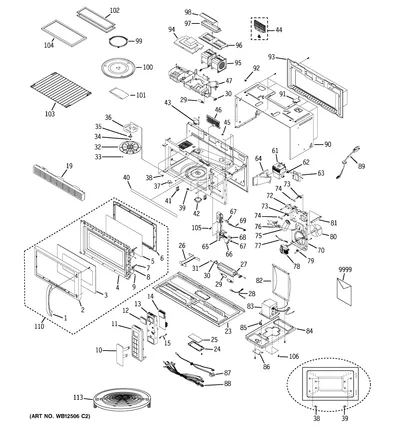

MICROWAVE
Parts in MICROWAVE
95 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | HANDLE ASS'Y | - |
| 2 | | WB55X10474NLA DOOR OUTER FRAME | Discontinued |
| 3 | | WB36X10201NLA SCREEN-DOOR(B) | Discontinued |
| 4 | | DOOR MAIN ASSY | - |
| 5 | | WB06X10332NLA FILM-DOOR | Discontinued |
| 6 | | CHOKE COVER | - |
| 7 | | WB05X10005NLA LATCH PAWL | Discontinued |
| 8 | | SPRING-KEY | - |
| 9 |  | PIN-HINGE | - |
| 10 | – | WB27X10641 SWITCH MEMBRANE | - |
| 11 |  | FRAME CONTROL PANEL | - |
| 12 | | WINDOW-DISPLAY | - |
| 13 | | BKT C/PANEL ASSY | - |
| 14 | | WB27X10602NLA SMARTBOARD | Discontinued |
| 15 | | WIRE GND PCB | - |
| 19 | | WB07X10423NLA GRILLE ASM | Discontinued |
| 23 | – | WB56X10287 BASE BOTTOM SUB ASM | - |
| 24 |  | COVER-GLASS | $20.60 RepairClinic |
| 25 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 26 | – | WB06X10444 BRACKET-ENCLOSURE | - |
| 27 | | WB06X10445NLA BRACKET-BOTTOM LAMP | Discontinued |
| 28 | | WIRE HARNESS-D | - |
| 29 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 30 |  | SOCKET LAMP | $20.52 Parts Dr |
| 31 | | WB01X10063NLA SCREW-SPECIAL | Discontinued |
| 32 | | WB06X10130NLA COVER-STIRRER | Discontinued |
| 33 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 34 | – | WB06X10340 WB06X10124 | - |
| 35 | | WB06X10286NLA HOLDER-STIRRER | Discontinued |
| 36 |  | WB06X10416replaces WB06X10172 BLADE-STIRRER | $27.37 ApplianceParts Pro |
| 37 | | WB06X10144NLA COUPLER-TT | Discontinued |
| 38 | | WB06X10223NLA RACK HOLDER LF/RR | Discontinued |
| 39 | | HOLDER-RACK-B | - |
| 40 | – | 49-40173-1 LABEL-COOKING GUIDE | - |
| 41 |  | WIRE SADDLE | - |
| 42 |  | MOTOR-SYNCHRONOUS | $16.41 Part Advantage |
| 43 |  | MOTOR-DRIVE | $16.49 Parts Dr |
| 44 | | KIT 110DEG TCO/ BKT/SCR | - |
| 45 |  | NUT MAGNETRON | - |
| 46 | | COVER-FRONT | - |
| 47 | | DUCT-UPPER | - |
| 61 |  | WB27X10735replaces WB27X10370 MAGNETRON ASM | $88.59 Parts Dr |
| 62 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 63 | | BRACKET-MGT | - |
| 64 | | GUIDE AIR ASSY | - |
| 65 | | WB06X10289NLA LATCH-BODY | Discontinued |
| 66 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 67 |  | WB24X829replaces WB24X0829 SWITCH-MICRO | $21.93 Part Advantage |
| 68 |  | WB24X830replaces WB24X0830 SWITCH-MICRO | $23.03 Part Advantage |
| 69 | | WIRE HARNESS-B | - |
| 70 | | COVER MOTOR ASM | - |
| 72 |  | CAPACITOR- MOTOR | - |
| 73 | | WB06X10050NLA FUSE-HOLDER | Discontinued |
| 74 |  | WB27X10928replaces WB27X10474 FUSE | $5.85 Part Advantage |
| 75 |  | CAPACITOR 2100V/0.91 MICROF | $73.56 Part Advantage |
| 76 | | BRACKET-HVC | - |
| 77 |  | DIODE ASSY | $79.64 Part Advantage |
| 78 |  | WB26X10089NLA MOTOR-FAN | Discontinued |
| 79 | | WB27X10194NLA TCO HOOD | Discontinued |
| 80 | | BLADE-FAN | - |
| 81 | | SUPPORTER-CAVITY | - |
| 82 | | DUCT REAR ASSY | - |
| 83 | | TRANS-H V | - |
| 84 | | BASE PLATE ASM | - |
| 85 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 86 | | COVER TCO-BOTTOM | - |
| 87 | | WIRE HARNESS-C | - |
| 88 | – | WB18X10197 WIRE HARNESS-A | - |
| 89 | | POWER CORD ASS'Y | - |
| 90 | – | WB56X10196 CASE OUTER | - |
| 91 | | BRACKET-POWER CORD | - |
| 92 |  | NUT TOP MOUNTING | $7.08 Part Advantage |
| 93 | | WB56X10260NLA MOUNTING PLATE | Discontinued |
| 94 | | BKT DUCT UPPER ASSY | $26.95 ApplianceParts Pro |
| 95 | | WB26X10042NLA MOTOR-VENTILATION | Discontinued |
| 96 | | BRACKET-V/T MOTOR | - |
| 97 |  | WB06X10436replaces WB06X10133 DAMPER-MAIN | $33.72 Parts Dr |
| 98 | | WB06X10436replaces WB06X10129 COVER-DAMPER | $33.72 Parts Dr |
| 99 |  | WB02X29743replaces WB06X10291 GUIDE ROLLER ASSY | $19.33 Parts Dr |
| 100 |  | TRAY-COOKING | $80.82 PartSelect |
| 101 | | HARD WARE ASS'Y | - |
| 102 |  | FILTER GREASE | $18.41 Part Advantage |
| 103 | | RACK WIRE ASSY | - |
| 104 |  | CHARCOAL FILTER | $45.51 Part Advantage |
| 105 | | SCREW-TAPPING | - |
| 106 |  | SCREW WASHER | $7.37 ApplianceParts Pro |
| 110 | | WB55X10409NLA DOOR ASM | Discontinued |
| 113 | | RACK-DEFROST | - |
| 9999 | – | 31-40005 MINI MANUAL | - |
| 9999 | – | 49-40137-1 TEMPLATE TOP | - |
| 9999 | – | 49-40151-1 FILLER PANEL KIT INSTALL | - |
| 9999 | – | 49-40154-2 CHARCOAL FILTER INSTALL | - |
| 9999 | – | 49-40171-5 USE & CARE MANUAL | - |
| 9999 | – | 49-40239-1 REAR WALL TEMPLATE | - |
| 9999 | – | 49-40247 INSTALLATION INSTRUCTION | - |
