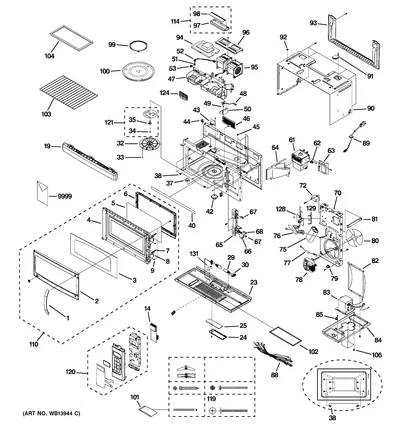

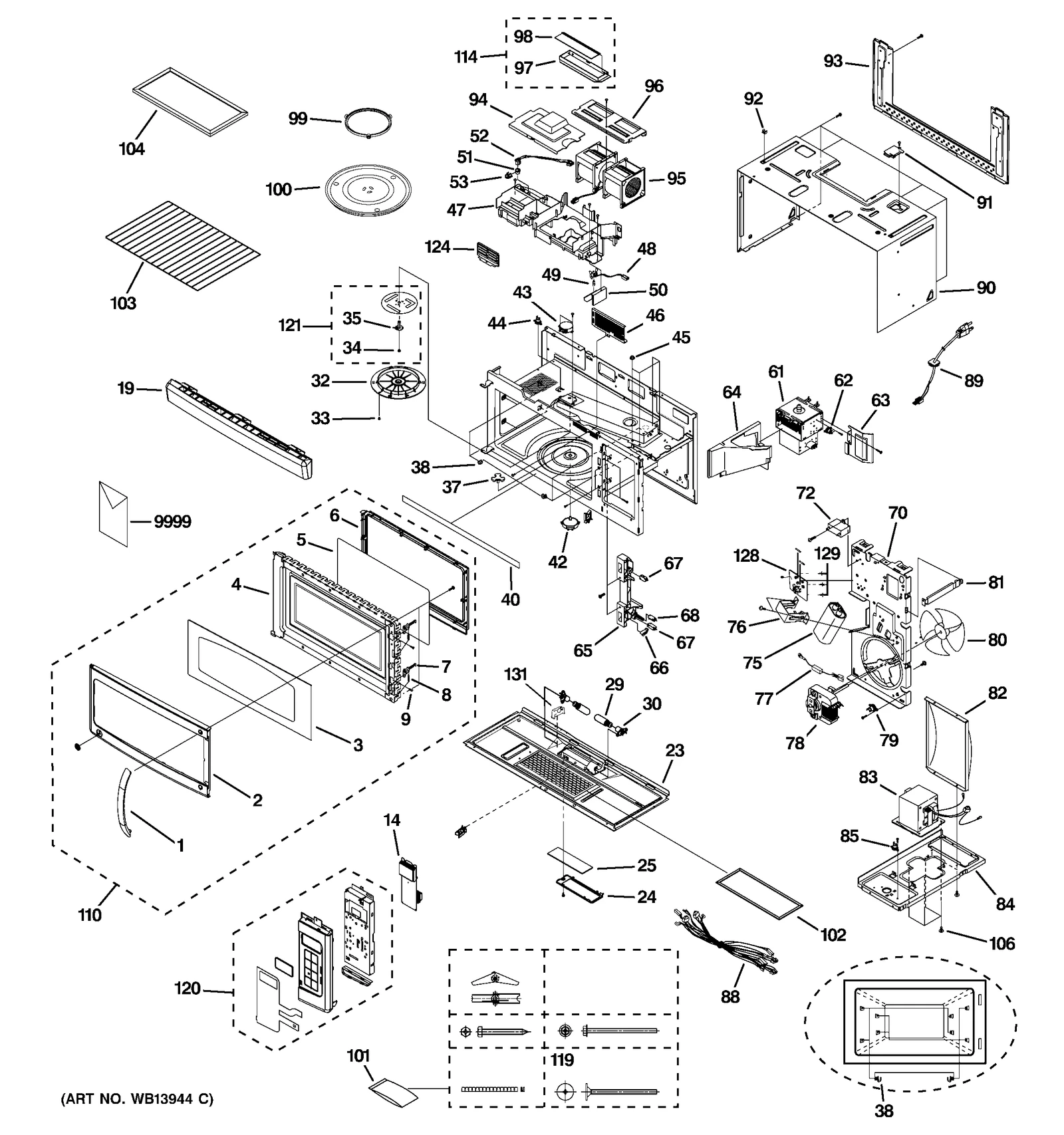

MICROWAVE
Parts in MICROWAVE
88 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WB15X10221NLA HANDLE BQ | Discontinued |
| 2 | | DOOR A | - |
| 3 | | SCREEN DOOR(B) | - |
| 4 | | DOOR MAIN ASSY | - |
| 5 | | WB06X10332NLA FILM-DOOR | Discontinued |
| 6 | | DOOR C | - |
| 7 | | WB05X10005NLA LATCH PAWL | Discontinued |
| 8 | | SPRING-KEY | - |
| 9 |  | PIN-HINGE | - |
| 14 | | WB27X10948NLA SMART BOARD | Discontinued |
| 19 | – | WB07X11023 GRILLE | - |
| 23 | | BASE BOTTOM | - |
| 24 |  | COVER-GLASS | $20.60 RepairClinic |
| 25 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 29 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 30 |  | SOCKET LAMP | $20.52 Parts Dr |
| 32 | | WB06X10130NLA COVER-STIRRER | Discontinued |
| 33 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 34 | – | WB06X10340 WB06X10124 | - |
| 35 | | WB06X10286NLA HOLDER-STIRRER | Discontinued |
| 37 | | WB06X10144NLA COUPLER-TT | Discontinued |
| 38 |  | HOLDER-RACK | $14.97 RepairClinic |
| 40 | – | 49-40174-1 LABEL-COOKING GUIDE | - |
| 42 |  | TURNTABLE, MOTOR | $27.23 Part Advantage |
| 43 |  | MOTOR-DRIVE | $16.49 Parts Dr |
| 44 | | THERMOSTAT | - |
| 45 |  | NUT MAGNETRON | - |
| 46 | | COVER-FRONT | - |
| 47 | | DUCT-UPPER | - |
| 48 | | SOCKET HAL/LAMP ASS'Y | - |
| 49 |  | BULB HALOGEN (120V 20W) | $10.94 Part Advantage |
| 50 | | COVER-HALOGEN LAMP | $4.28 RepairClinic |
| 51 |  | WB24X799replaces WB24X0799 SENSOR-GAS | $126.78 Part Advantage |
| 52 | | WIRE HARNESS "S" | - |
| 53 |  | WB6X549replaces WB06X0549 HOLDER-SENSOR | $3.47 RepairClinic |
| 61 |  | ASM-MAGNETRON | $135.68 Part Advantage |
| 62 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 63 |  | BRACKET-MGT | - |
| 64 | | GUIDE AIR ASSY | - |
| 65 |  | LATCH-BODY | $49.91 Part Advantage |
| 66 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 67 |  | WB24X829replaces WB24X10038 SWITCH | $21.93 Part Advantage |
| 68 |  | WB24X830replaces WB24X10075 SWITCH-MICRO | $23.03 Part Advantage |
| 70 | | COVER MOTOR ASS'Y | $58.48 ApplianceParts Pro |
| 72 |  | CAPACITOR- MOTOR | - |
| 75 |  | CAPACITOR 2100V/0.91 MICROF | $73.56 Part Advantage |
| 76 | | BRACKET-HVC | - |
| 77 |  | WB27X10597replaces WB27X10817 H.V. DIODE | $42.18 Part Advantage |
| 78 |  | WB26X10089NLA MOTOR-FAN | Discontinued |
| 79 | | WB27X10194NLA TCO HOOD | Discontinued |
| 80 | | BLADE-FAN | - |
| 81 | | SUPPORTER-CAVITY | - |
| 82 | | DUCT REAR ASSY | - |
| 83 |  | TRANS H.V | $216.36 Part Advantage |
| 84 | | BASE PLATE ASM | - |
| 85 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 88 | | WIRE HARNESS - A | - |
| 89 | | POWER CORD ASSY | $43.95 ApplianceParts Pro |
| 90 | | CASE OUTER | - |
| 91 | | BRACKET-POWER CORD | - |
| 92 |  | NUT TOP MOUNTING | $7.08 Part Advantage |
| 93 | | WB56X10260NLA MOUNTING PLATE | Discontinued |
| 94 | | BKT DUCT UPPER ASSY | $26.95 ApplianceParts Pro |
| 95 |  | MOTOR VENTILATION | - |
| 96 | | BRACKET-V/T MOTOR | - |
| 97 |  | WB06X10436replaces WB06X10133 DAMPER-MAIN | $33.72 Parts Dr |
| 98 | | COVER-DAMPER | $44.01 Parts Dr |
| 99 | | WB06X10001NLA GUIDE ROLLER ASSY | Discontinued |
| 100 |  | TRAY-COOKING | $80.82 PartSelect |
| 101 | | WB01X10181NLA MOUNTING HARDWARE ASM | Discontinued |
| 102 |  | FILTER-AIR | $42.78 Part Advantage |
| 103 | | WIRE RACK ASM | - |
| 104 |  | CHARCOAL FILTER | $45.51 Part Advantage |
| 106 |  | SCREW WASHER | $7.37 ApplianceParts Pro |
| 110 | | DOOR BQ | - |
| 114 | | ASM HOOD DAMPER | - |
| 119 |  | BOLT-FLAT CAB MOUNTING | $9.01 Parts Dr |
| 120 | | CONTOL PANEL ASM BQ | - |
| 121 | | STIRRER ASSY | - |
| 124 | | BRACKET BARRIER | - |
| 128 | | NOISE FILTER | - |
| 129 |  | WB4X175replaces WB04X0175 SUPPORTER-PCB | $2.95 ApplianceParts Pro |
| 131 | | BRACKET LAMP | - |
| 9999 | – | 31-41022 MINI MANUAL | - |
| 9999 | – | 49-40137-1 TEMPLATE TOP | - |
| 9999 | – | 49-40336 TEMPLATE REAR | - |
| 9999 | – | 49-40537 USE & CARE | - |
| 9999 | – | 49-40538 INSTRUCTIONS INSTALL | - |
