Model
GE JVM1851CH06
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1851CH06Microwave Or Advantium
1 diagram81 parts
Parts Sections (1)
Diagram

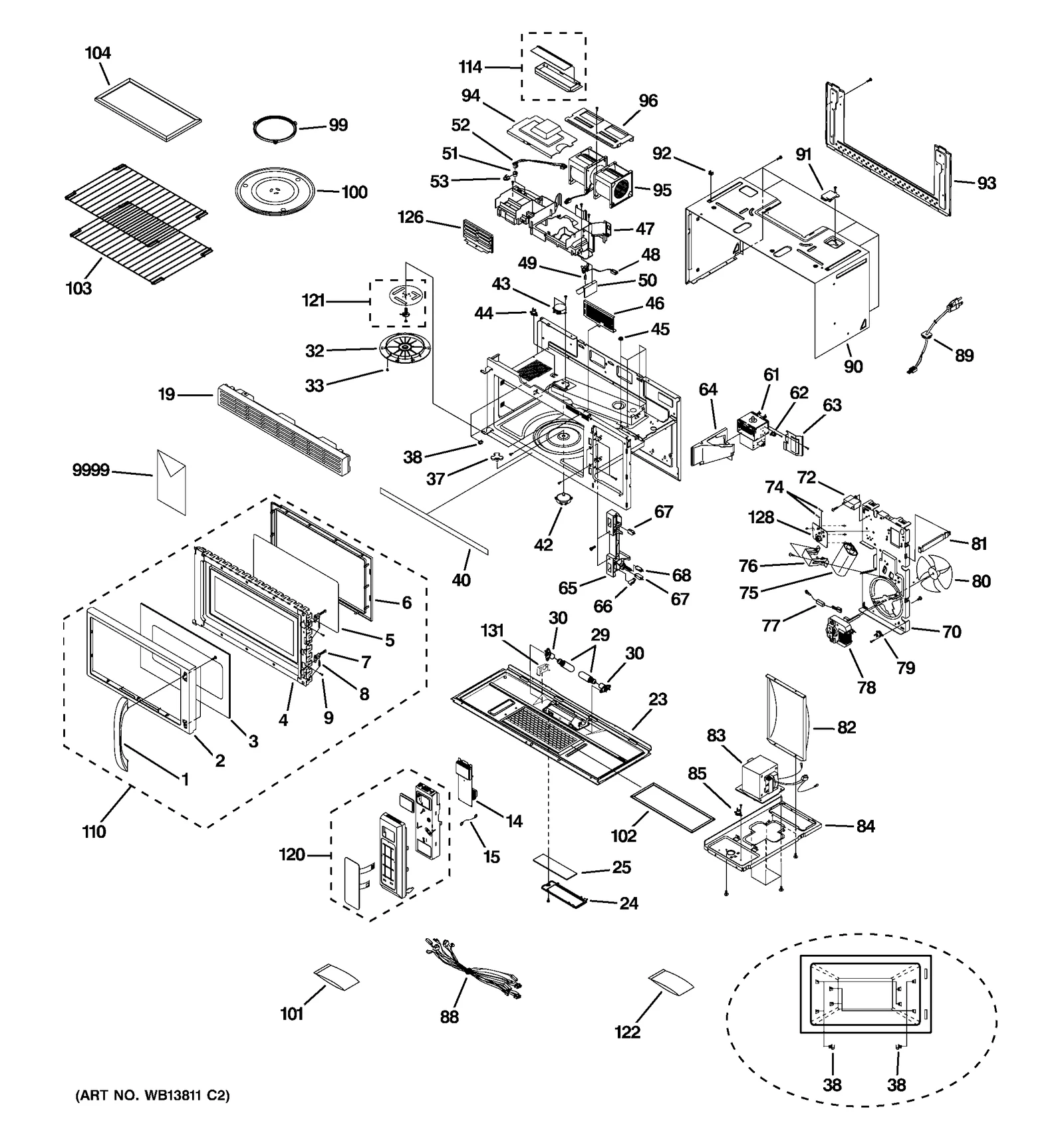

MICROWAVE
Parts in MICROWAVE
81 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB15X10145 HANDLE BQ | - |
| 2 |  | WB55X10474NLA DOOR OUTER FRAME | Discontinued |
| 3 | | SCREEN-DOOR(B) | - |
| 4 | | DOOR MAIN ASSY | - |
| 5 | | WB06X10332NLA FILM-DOOR | Discontinued |
| 6 | | CHOKE COVER | - |
| 7 | | WB05X10005NLA LATCH PAWL | Discontinued |
| 8 | | SPRING-KEY | - |
| 9 |  | PIN-HINGE | - |
| 14 | | WB27X10873NLA SMART BOARD | Discontinued |
| 15 | | WIRE GND PCB | - |
| 19 | | WB07X10423NLA GRILLE ASM | Discontinued |
| 23 | – | WB56X10681 BASE BOTTOM SUB ASM | - |
| 24 |  | COVER-GLASS | $20.60 RepairClinic |
| 25 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 29 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 30 |  | SOCKET LAMP | $20.52 Parts Dr |
| 32 | | WB06X10130NLA COVER-STIRRER | Discontinued |
| 33 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 37 | | WB06X10144NLA COUPLER-TT | Discontinued |
| 38 |  | HOLDER-RACK | $14.97 RepairClinic |
| 40 | – | 49-40174-1 LABEL-COOKING GUIDE | - |
| 42 |  | MOTOR-SYNCHRONOUS | $16.41 Part Advantage |
| 43 |  | MOTOR-DRIVE | $16.49 Parts Dr |
| 44 | | THERMOSTAT | - |
| 45 |  | NUT MAGNETRON | - |
| 46 | | COVER-FRONT | - |
| 47 | | DUCT-UPPER | - |
| 48 | | SOCKET HAL/LAMP ASS'Y | - |
| 49 |  | BULB HALOGEN (120V 20W) | $10.94 Part Advantage |
| 50 | | COVER-HALOGEN LAMP | $4.28 RepairClinic |
| 51 |  | SENSOR HUMIDITY | - |
| 52 | | WIRE HARNESS "S" | - |
| 53 |  | WB6X549replaces WB06X0549 HOLDER-SENSOR | $3.47 RepairClinic |
| 61 |  | ASM-MAGNETRON | $135.68 Part Advantage |
| 62 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 63 | | BRACKET-MGT | - |
| 64 | | GUIDE AIR ASSY | - |
| 65 | | WB06X10289NLA LATCH-BODY | Discontinued |
| 66 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 67 |  | WB24X829replaces WB24X10038 SWITCH | $21.93 Part Advantage |
| 68 |  | WB24X830replaces WB24X10075 SWITCH-MICRO | $23.03 Part Advantage |
| 70 | | COVER MOTOR ASS'Y | $58.48 ApplianceParts Pro |
| 72 |  | CAPACITOR- MOTOR | - |
| 74 |  | WB27X10928replaces WB27X10474 FUSE | $5.85 Part Advantage |
| 75 |  | CAPACITOR 2100V/0.91 MICROF | $73.56 Part Advantage |
| 76 | | BRACKET-HVC | - |
| 77 |  | DIODE ASSY | $79.64 Part Advantage |
| 78 |  | WB26X10089NLA MOTOR-FAN | Discontinued |
| 79 | | WB27X10194NLA TCO HOOD | Discontinued |
| 80 | | BLADE-FAN | - |
| 81 | | SUPPORTER-CAVITY | - |
| 82 | | DUCT REAR ASSY | - |
| 83 |  | H.V. TRANSFORMER | - |
| 84 | – | WB56X10691 BASE PLATE ASM | - |
| 85 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 88 | | WIRE HARNESS - A | - |
| 89 | | POWER CORD ASSY | $43.95 ApplianceParts Pro |
| 90 | – | WB56X10196 CASE OUTER | - |
| 91 | | BRACKET-POWER CORD | - |
| 92 |  | NUT TOP MOUNTING | $7.08 Part Advantage |
| 93 | | WB56X10260NLA MOUNTING PLATE | Discontinued |
| 94 | | BKT DUCT UPPER ASSY | $26.95 ApplianceParts Pro |
| 95 | | WB26X10191NLA MOTOR VENTILATION | Discontinued |
| 96 | | BRACKET-V/T MOTOR | - |
| 99 | | WB06X10001NLA GUIDE ROLLER ASSY | Discontinued |
| 100 |  | TRAY-COOKING | $80.82 PartSelect |
| 101 | | WB01X10181NLA MOUNTING HARDWARE ASM | Discontinued |
| 102 |  | FILTER-AIR | $42.78 Part Advantage |
| 103 | | WIRE RACK ASM | - |
| 104 |  | CHARCOAL FILTER | $45.51 Part Advantage |
| 110 | | WB56X10502NLA DOOR ASM BQ | Discontinued |
| 114 |  | HOOD DAMPER ASSY | $33.72 Parts Dr |
| 120 | | CONTROL PANEL ASM BQ | - |
| 121 | | STIRRER ASSY | - |
| 122 | | HARDWARE BAG | - |
| 126 | | BKT-BARRIER | - |
| 128 | | NOISE FILTER | - |
| 131 | | BRACKET LAMP | - |
| 9999 | – | 31-40054 MINI MANUAL | - |
| 9999 | – | 49-40395-1 USE & CARE | - |
