GE JVM1861BD002
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1861BD002Microwave Or Advantium
1 diagram91 parts
Parts Sections (1)
Diagram

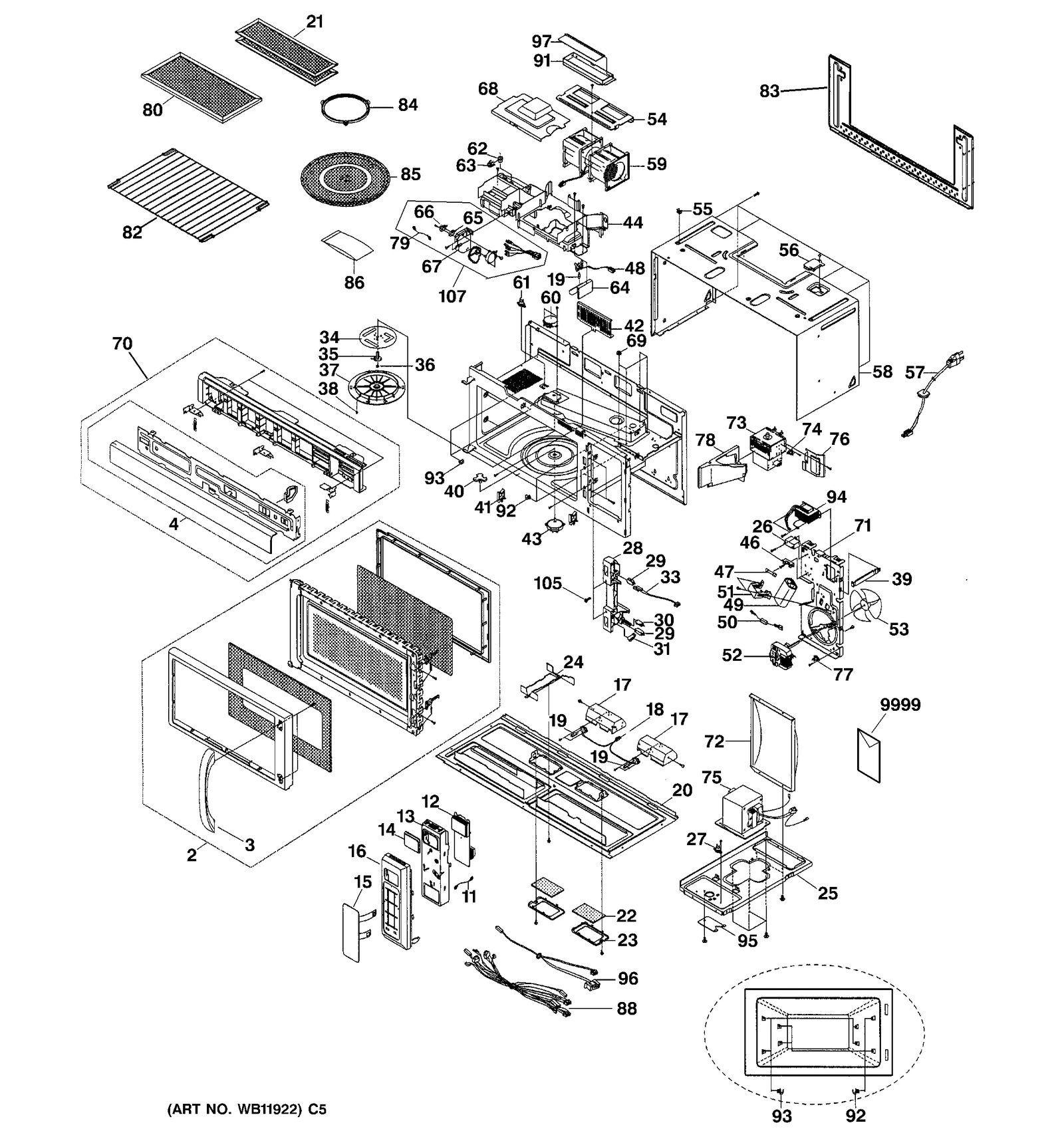

MICROWAVE
Parts in MICROWAVE
91 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WB55X10405NLA DOOR ASM | Discontinued |
| 3 | | HANDLE ASS'Y | - |
| 4 | | COVER GRILLE ASM | - |
| 11 | | WIRE GND PCB | - |
| 12 | | WB27X10438NLA PCB ASS'Y | Discontinued |
| 13 | | BKT C/PANEL ASSY | - |
| 14 | | WINDOW-DISPLAY | - |
| 15 | | SWITCH MEMBRANE | - |
| 16 | | FRAME CONTROL PANEL | - |
| 17 | – | WB06X10282 BRACKET-BOTTOM LAMP | - |
| 18 | | SOCKET LAMP(B) ASS'Y | - |
| 19 |  | LAMP-HALOGEN | - |
| 20 | – | WB56X10194 BASE BOTTOM ASS'Y | - |
| 21 |  | FILTER GREASE | $18.41 Part Advantage |
| 22 | | GLASS-COOK TOP LAMP | - |
| 23 | | COVER LAMP | $39.95 RepairClinic |
| 24 | – | WB06X10285 BRACKET-ENCLOSURE | - |
| 25 | | BASE PLATE ASM | - |
| 26 |  | CAPACITOR- MOTOR | - |
| 27 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 28 | | WB06X10289NLA LATCH-BODY | Discontinued |
| 29 |  | WB24X829replaces WB24X0829 SWITCH-MICRO | $21.93 Part Advantage |
| 30 |  | WB24X830replaces WB24X0830 SWITCH-MICRO | $23.03 Part Advantage |
| 31 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 33 | | WIRE HARNESS-B | - |
| 34 |  | WB06X10416replaces WB06X10172 BLADE-STIRRER | $27.37 ApplianceParts Pro |
| 35 | | WB06X10286NLA HOLDER-STIRRER | Discontinued |
| 36 | – | WB06X10340 WB06X10124 | - |
| 37 | | WB06X10130NLA COVER-STIRRER | Discontinued |
| 38 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 39 | | SUPPORTER-CAVITY | - |
| 40 | | WB06X10144NLA COUPLER-TT | Discontinued |
| 41 |  | WIRE SADDLE | - |
| 42 | | COVER-FRONT | - |
| 43 |  | MOTOR-SYNCHRONOUS | $16.41 Part Advantage |
| 44 | | DUCT-UPPER | - |
| 46 | | WB06X10050NLA FUSE-HOLDER | Discontinued |
| 47 |  | WB27X10928replaces WB27X1159 FUSE | $5.85 Part Advantage |
| 48 | | SOCKET LAMP(A) ASS'Y | - |
| 49 |  | CAPACITOR 2100V/0.91 MICROF | $73.56 Part Advantage |
| 50 |  | DIODE ASSY | $79.64 Part Advantage |
| 51 | | BRACKET-HVC | - |
| 52 |  | WB26X10089NLA MOTOR-FAN | Discontinued |
| 53 | | BLADE-FAN | - |
| 54 | | BRACKET-V/T MOTOR | - |
| 55 |  | NUT TOP MOUNTING | $7.08 Part Advantage |
| 56 | | BRACKET-POWER CORD | - |
| 57 | | POWER CORD ASS'Y | - |
| 58 | | CASE OUTER | - |
| 59 | | WB26X10104NLA MOTOR-VENTILATION | Discontinued |
| 60 |  | MOTOR-DRIVE | $16.49 Parts Dr |
| 61 |  | S/W THERMO | $41.34 RepairClinic |
| 62 |  | SENSOR HUMIDITY | - |
| 63 |  | WB6X549replaces WB06X0549 HOLDER-SENSOR | $3.47 RepairClinic |
| 64 | | COVER-HALOGEN LAMP | - |
| 65 | | WB24X10070NLA SWITCH-MICRO | Discontinued |
| 66 | | WB24X10069NLA SWITCH-MICRO | Discontinued |
| 67 | | BRACKET-CAM PLATE | - |
| 68 | – | WB06X10293 BKT DUCT UPPER ASS'Y | - |
| 69 |  | NUT MAGNETRON | - |
| 70 | | GRILLE ASM | - |
| 71 | | COVER MOTOR ASM | - |
| 72 | | DUCT REAR ASSY | - |
| 73 |  | WB27X10735replaces WB27X10370 MAGNETRON ASM | $88.59 Parts Dr |
| 74 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 75 | | TRANS-H.V | - |
| 76 |  | BRACKET-MGT | - |
| 77 | | WB27X10194NLA TCO HOOD | Discontinued |
| 78 | | GUIDE AIR ASSY | - |
| 79 | | WIRE HARNESS-H | - |
| 80 |  | CHARCOAL FILTER | $45.51 Part Advantage |
| 82 | | RACK WIRE ASSY | - |
| 83 | | WB56X10260NLA MOUNTING PLATE | Discontinued |
| 84 |  | WB02X29743replaces WB06X10291 GUIDE ROLLER ASSY | $19.33 Parts Dr |
| 85 |  | TRAY-COOKING | $80.82 PartSelect |
| 86 | | HARD WARE ASS'Y | - |
| 88 | – | WB18X10137 WIRE HARNESS-A | - |
| 91 |  | WB06X10436replaces WB06X10133 DAMPER-MAIN | $33.72 Parts Dr |
| 92 | | HOLDER-RACK-B | - |
| 93 | | WB06X10223NLA RACK HOLDER LF/RR | Discontinued |
| 94 | | TRANS-L.V | - |
| 95 | | COVER TCO-BOTTOM | - |
| 96 | – | WB18X10138 WIRE HARNESS-C | - |
| 97 | | WB06X10436replaces WB06X10129 COVER-DAMPER | $33.72 Parts Dr |
| 105 | | SCREW-TAPPING | - |
| 107 | | ASSY-CAM LOUVER | - |
| 9999 | – | 31-20953 MINI-MANUAL | - |
| 9999 | – | 49-40117 USE & CARE MANUAL | - |
| 9999 | – | 49-40137 TEMPLATE - TOP | - |
| 9999 | – | 49-40151 FILLER PANEL KIT | - |
| 9999 | – | 49-40175 COOKING GUIDE LABEL | - |
