Model
RCA MSX19LAXAWH
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX19LAXAWHRefrigerator
4 diagrams191 parts

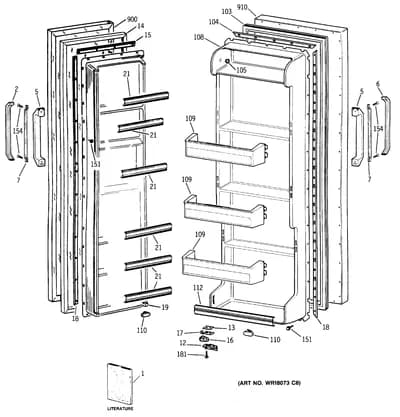

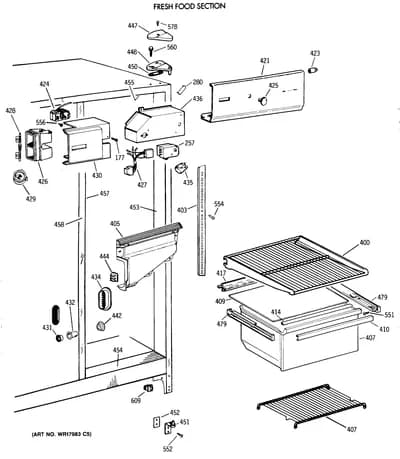

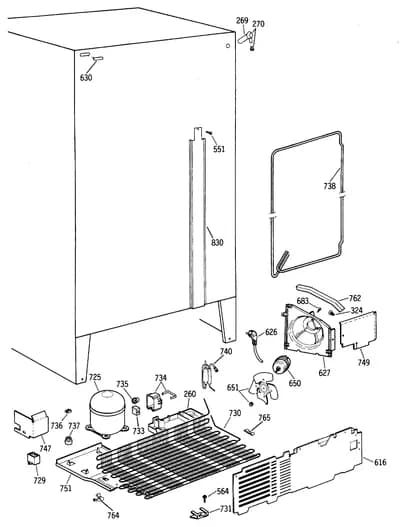

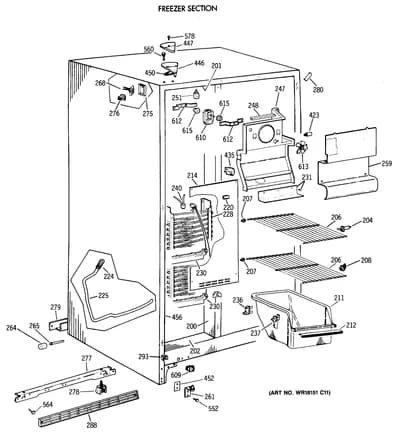

Parts Sections (4)
Diagram
Parts List
Parts in Parts List
49 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51000 MINI MANUAL WIRING | - |
| 1 | – | 39-6401 GUIDE OWNERS | - |
| 2 | – | WR12X1030 INSERT & NAMEPLATE ASM | - |
| 5 | – | WR12X0919 HANDLE SXS | - |
| 6 | – | WR12X0956 INSERT HANDLE BK | - |
| 7 |  | WR12X957replaces WR12X0957 STIFFENER HANDLE SXS | - |
| 12 | | STOP DOOR WH | Discontinued |
| 13 | – | WR02X4599 NUTSTRIP | - |
| 13 | | WR02X7490NLA SHIM CAM & DOOR STOP | Discontinued |
| 14 | | GASKET DOOR | Discontinued |
| 15 | – | WR17X3119 RETAINER STRIP | - |
| 16 |  | WR2X4901replaces WR02X4901 HINGE CAM RISER | $13.74 Part Advantage |
| 17 | | SHIM RISER CAM | Discontinued |
| 17 | | SHIM RISER CAM | Discontinued |
| 18 | | RETAINER STRIP | Discontinued |
| 19 | – | WR77X0597 DOOR INNER FZ | - |
| 21 | | WR17X4029NLA FRONT DOOR SHELF | Discontinued |
| 42 |  | WR2X3139replaces WR02X3139 PLUG BUTTON | - |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 98 |  | WR1K1replaces WR01K0001 SCREW 8-36 T IHW 3/8 SN | - |
| 103 | | WR24X0528NLA GASKET DOOR FF WH | Discontinued |
| 104 | | RETAINER STRIP | - |
| 105 | – | WR02X8731 PLUG BUTTON | - |
| 108 | – | WR77X0598 DOOR INNER FF | - |
| 109 | | WR71X2373NLA DOOR MODULE | Discontinued |
| 110 | | WR02X8989NLA SUPPORT TWIST BUMPER | Discontinued |
| 112 | | WR17X4041NLA FRONT DOOR SHELF | Discontinued |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 154 | – | WR01X1765 SCREW | - |
| 181 | – | WZ06X0105 SCREW | - |
| 234 | | WR23X394replaces WR23X0394 HARNESS DEF HTR TOP | - |
| 234 | | WR23X0395NLA HARNESS DEF HTR BTM | Discontinued |
| 461 | | WZ6X136replaces WZ06X0136 SCR 8-18 AB HXW 1/2 S | - |
| 471 |  | WR2X8349replaces WR02X8349 GROMMET SCR CLOSED | - |
| 494 |  | WD1X1459replaces WD01X1459 INSULATOR HSNG TERM | - |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 689 | – | WR01X1598 SCR 8 32 GX HXW 1/2 S DP | - |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 753 | – | WB01K5052 SCREW | - |
| 788 | – | WB17X5064 HOUSING SOCKET PKG 4 P1N | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 811 | – | WR02X8659 PLUG RECESSED | - |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 900 | | WR78X8558NLA FZ O. DOOR WH | Discontinued |
| 910 | – | WR78X8557 FF O. DOOR WH | - |
| 1458 | | TERMINAL BLK ASM (3 PIN) | - |
| 1458 | | TERMINAL BLK ASM (1 PIN) | - |
| 1506 | | WB17X5059NLA HOUSING SOCKET PKG 9 PIN | Discontinued |
