Model
RCA MSX20BABAAD
Refrigerator
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX20BABAADRefrigerator
5 diagrams189 parts

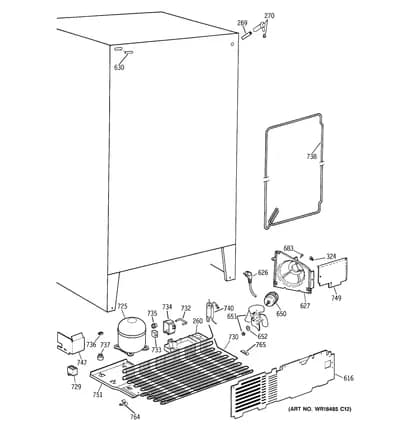

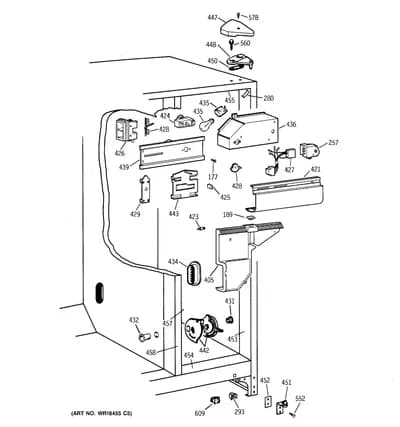

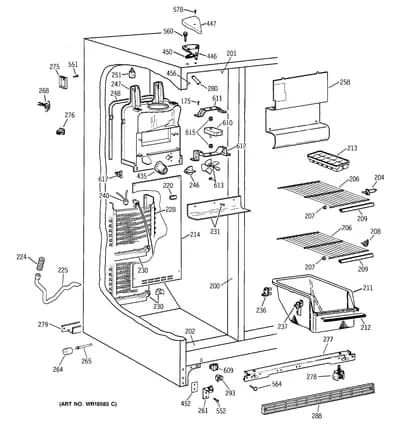

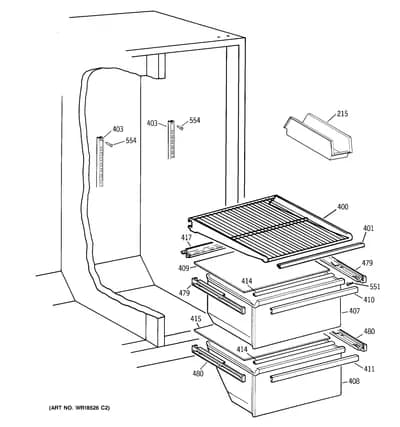

Parts Sections (5)
Diagram

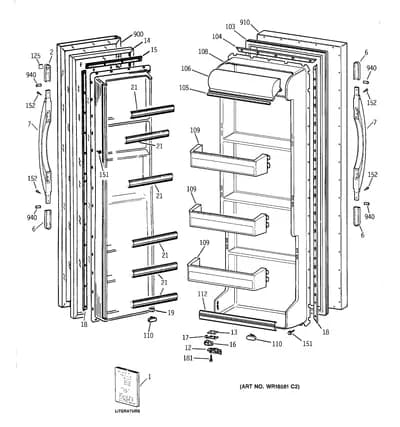

DOORS
Parts in DOORS
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51179 PM MINI MANUAL WIRING | - |
| 1 | – | 39-6425 PM GUIDE OWNERS EFS | - |
| 2 | – | WR12X10204 TAIL HANDLE SXS | - |
| 6 |  | WR12X10203NLA TAIL HANDLE SXS | Discontinued |
| 7 | | WR12X10434replaces WR12X10111 HANDLE SXS ASM BK | - |
| 12 | | WR2X9302replaces WR02X9302 STOP DOOR AD | - |
| 13 | – | WR02X4599 NUTSTRIP | - |
| 13 | | WR02X7490NLA SHIM CAM & DOOR STOP | Discontinued |
| 14 | | GASKET DOOR | Discontinued |
| 15 | – | WR17X3119 RETAINER STRIP | - |
| 16 |  | WR2X4901replaces WR02X4901 HINGE CAM RISER | $13.74 Part Advantage |
| 18 | | RETAINER STRIP | Discontinued |
| 19 | – | WR77X0597 DOOR INNER FZ | - |
| 21 | | WR17X4029NLA FRONT DOOR SHELF | Discontinued |
| 42 |  | WR2X3139replaces WR02X3139 PLUG BUTTON | - |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 98 |  | WR1K1replaces WR01K0001 SCREW 8-36 T IHW 3/8 SN | - |
| 103 | | WR24X0528NLA GASKET DOOR FF WH | Discontinued |
| 104 | | RETAINER STRIP | - |
| 105 | – | WR38X2219 TRIM DAIRY DOOR | - |
| 106 | – | WR22X0495 DOOR DAIRY WHITE | - |
| 108 | – | WR77X0598 DOOR INNER FF | - |
| 109 | | MODULE ASM | - |
| 110 | | WR02X8989NLA SUPPORT TWIST BUMPER | Discontinued |
| 112 | | WR17X4041NLA FRONT DOOR SHELF | Discontinued |
| 125 | – | WR04X10042 LENS NAMEPLATE ASM | - |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 152 | | WR01X10038NLA SCREW 8-18 AB FILTER 5/8 | Discontinued |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 181 | – | WZ06X0105 SCREW | - |
| 461 | | WZ6X136replaces WZ06X0136 SCR 8-18 AB HXW 1/2 S | - |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 753 | – | WB01K5052 SCREW | - |
| 809 |  | WR1X1936replaces WR01X1936 FASTENER WATER TUBE | - |
| 811 | – | WR02X8659 PLUG RECESSED | - |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 900 | – | WR78X10162 DOOR FOAM ASM FZ AD | - |
| 910 | – | WR78X10161 DOOR FOAM ASM FF AD | - |
| 940 | – | WR02X10124 BRACKET HANDLE | - |
| 1458 | | TERMINAL BLK ASM (3 PIN) | - |
| 1506 | | WB17X5059NLA HOUSING SOCKET PKG 9 PIN | Discontinued |
