Model
RCA MSX20GRAAD
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX20GRAADRefrigerator
4 diagrams203 parts

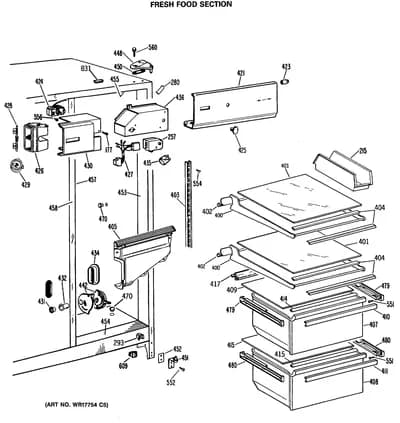

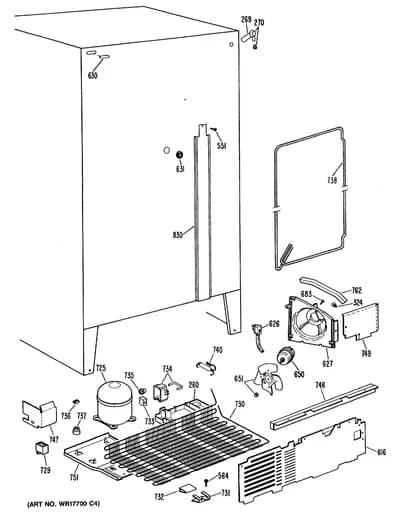

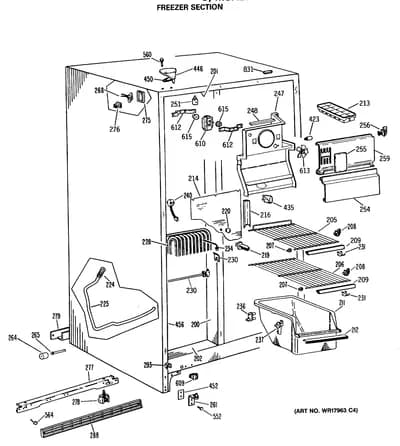

Parts Sections (4)
Diagram
Parts List

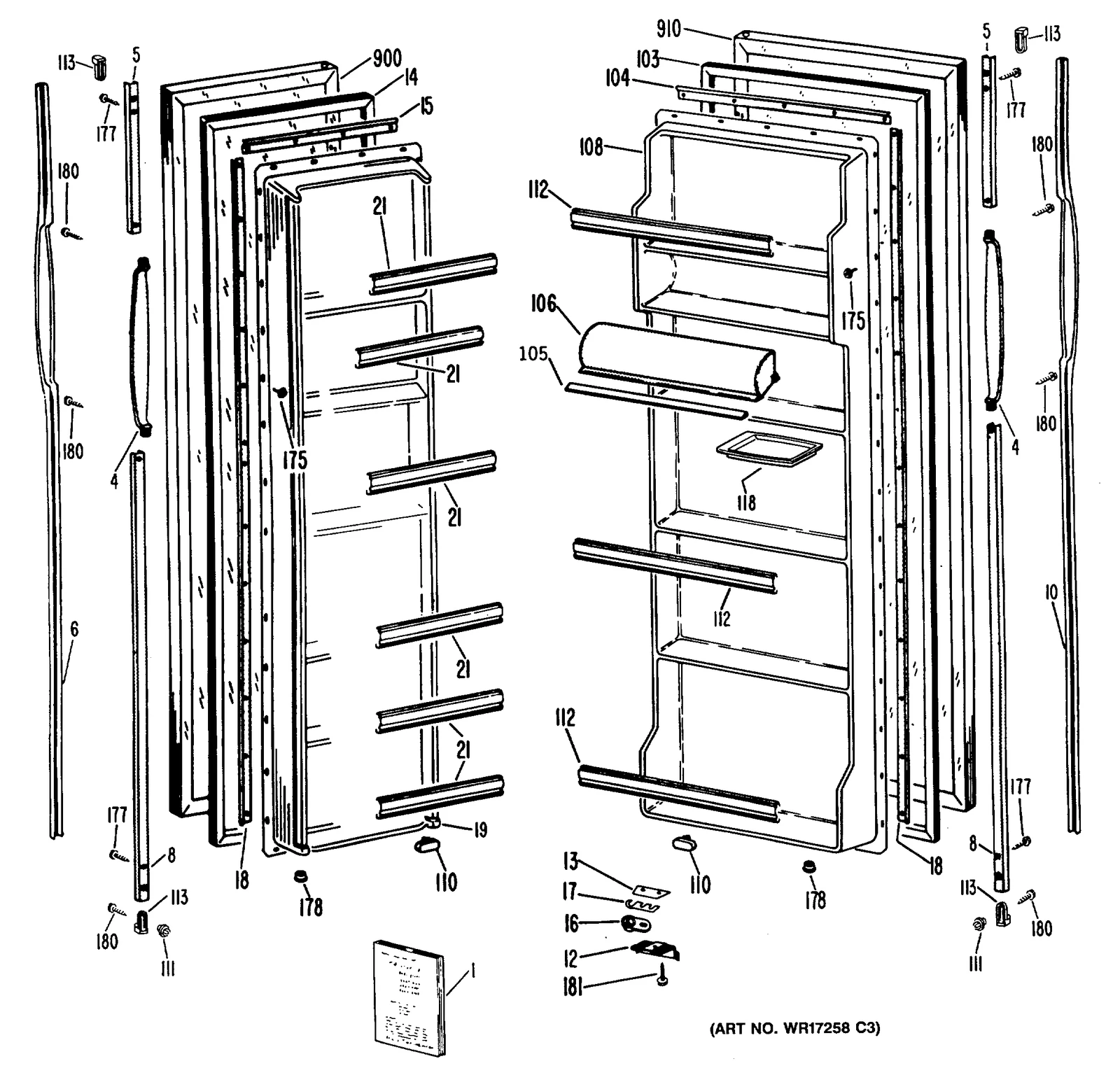

Parts in Parts List
49 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5022 ATTENTION INSTALLER | - |
| 1 | – | 79-6015 GUIDE OWNERS | - |
| 4 |  | WR12X0317NLA HANDLE, CAST DOOR | Discontinued |
| 5 | | WR12X448replaces WR12X0823 CHANNEL HANDLE | - |
| 6 | – | WR12X5190 INSERT DOOR HANDLE | - |
| 8 | – | WR12X0824 CHANNEL HANDLE | - |
| 10 | | INSERT DOOR HANDLE | - |
| 12 | | STOP DOOR | Discontinued |
| 13 | – | WR02X4599 NUTSTRIP | - |
| 14 | | GASKET FRZ.O.DOOR | - |
| 14 | – | WZ05X0164 SCREW FAN MTR/BRKT | - |
| 15 | | RETAINER STRIP | - |
| 16 |  | WR2X4901replaces WR02X4901 HINGE CAM RISER | $13.74 Part Advantage |
| 18 | | RETAINER STRIP | Discontinued |
| 19 | – | WR77X5668 DOOR INNER FZ | - |
| 21 | – | WR17X3057 FRONT DOOR SHELF | - |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 103 | | GASKET FF DOOR | - |
| 104 | – | WR17X5600 RETAINER STRIP | - |
| 105 | – | WR38X5403 TRIM DAIRY DOOR | - |
| 106 | – | WR22X5087 DAIRY DOOR | - |
| 108 | – | WR77X0487 DOOR INNER FF | - |
| 110 | | WR02X4678NLA SUPPORT TWIST BUMPER | Discontinued |
| 111 | | WR01X1247NLA GROMMET SCR | Discontinued |
| 112 | – | WR17X6358 FRONT DOOR SHELF | - |
| 113 | | WR12X0320NLA CAP HANDLE | Discontinued |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 175 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 177 |  | WZ4X338Dreplaces WR01X5034 SCREW 8-18 A HX 1/2 S | - |
| 180 | – | WZ05X0166 SCREW | - |
| 181 | – | WZ06X0105 SCREW | - |
| 234 | – | WR02X4546 HARNESS DEF HTR | - |
| 280 | – | WR02X8519 CAP CORNER OC (AD) | - |
| 461 | | WZ6X136replaces WZ06X0136 SCR 8-18 AB HXW 1/2 S | - |
| 471 |  | WR2X8349replaces WR02X8349 GROMMET SCR CLOSED | - |
| 558 | – | WZ06X0107 SCREW | - |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 680 |  | WR1X1850replaces WR01X1850 SCR 7-19 HXW 1/2 | $7.95 ApplianceParts Pro |
| 689 | – | WR01X1598 SCR 8 32 GX HXW 1/2 S DP | - |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 692 |  | WZ4X416replaces WZ04X0416 SCR 8-18 AB HXW 3/4 | $14.95 ApplianceParts Pro |
| 764 | – | WR02X8222 CLIP COND RECIP | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 900 | – | WR78X8302 FRZ.O.DOOR (AD) | - |
| 910 | – | WR78X8305 FF O. DOOR (AD) | - |
| 1458 | | TERMINAL BLK ASM (3 PIN) | - |
| 1506 | | WB17X5059NLA HOUSING SOCKET PKG 9 PIN | Discontinued |
