Model
RCA MSX22GLP
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX22GLPRefrigerator
4 diagrams199 parts
Parts Sections (4)

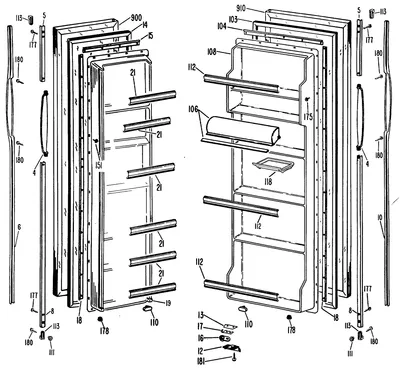

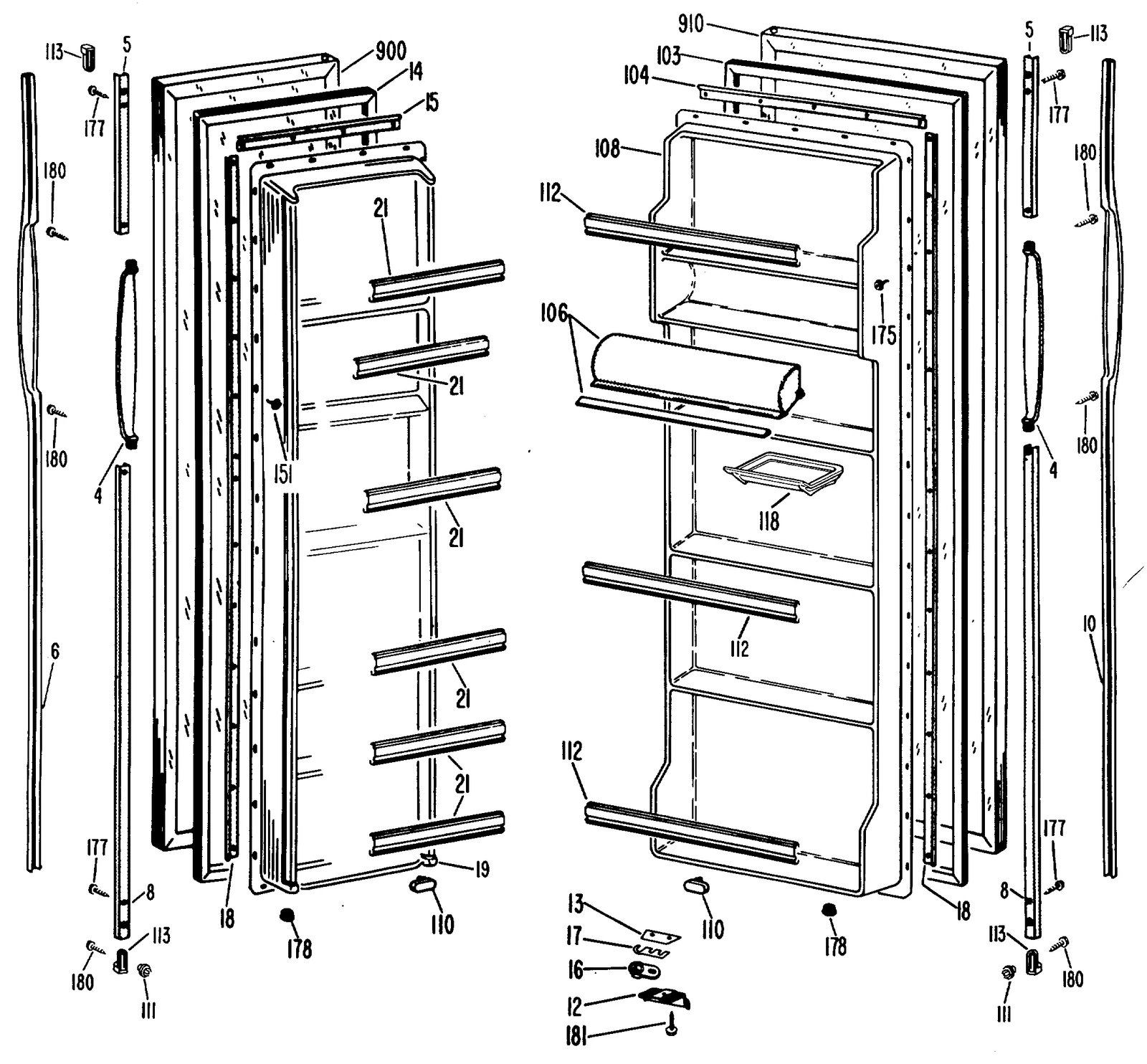

Diagram
Parts List
Parts in Parts List
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5022 ATTENTION INSTALLER | - |
| 1 | – | 79-6015 GUIDE OWNERS | - |
| 4 |  | WR12X0317NLA HANDLE, CAST DOOR | Discontinued |
| 5 | | WR12X448replaces WR12X0448 CHANNEL HANDLE | - |
| 6 | – | WR12X5190 INSERT DOOR HANDLE | - |
| 8 | – | WR12X0449 CHANNEL HANDLE | - |
| 10 | | INSERT DOOR HANDLE | - |
| 12 | | STOP DOOR | Discontinued |
| 13 | – | WR02X4599 NUTSTRIP | - |
| 14 | | GASKET FRZ.O.DOOR | - |
| 15 | | RETAINER STRIP | - |
| 16 |  | WR2X4901replaces WR02X4901 HINGE CAM RISER | $13.74 Part Advantage |
| 18 | | RETAINER STRIP | Discontinued |
| 19 | – | WR77X5668 DOOR INNER FZ | - |
| 21 | – | WR17X6357 FRONT DOOR SHELF | - |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 103 | | WR24X5231NLA GASKET FF O DOOR . | Discontinued |
| 104 | | WR17X1168NLA RETAINER STRIP | Discontinued |
| 106 | – | WR22X5088 DAIRY DOOR | - |
| 106 | | TRIM DAIRY DOOR | - |
| 108 | – | WR77X5675 DOOR INNER FF | - |
| 110 | | WR02X4678NLA SUPPORT TWIST BUMPER | Discontinued |
| 111 | | WR01X1247NLA GROMMET SCR | Discontinued |
| 112 | | FRONT DOOR SHELF | - |
| 113 | | WR12X0320NLA CAP HANDLE | Discontinued |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 175 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 177 |  | WZ4X338Dreplaces WR01X5034 SCREW 8-18 A HX 1/2 S | - |
| 180 | – | WZ05X0166 SCREW | - |
| 181 | – | WZ06X0105 SCREW | - |
| 471 |  | WR2X8349replaces WR02X8349 GROMMET SCR CLOSED | - |
| 558 | – | WZ06X0107 SCREW | - |
| 563 | | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 764 | – | WR02X8222 CLIP COND RECIP | - |
| 900 | – | WR78X8301 FRZ.O.DOOR (WH) | - |
| 900 | – | WR78X8302 FRZ.O.DOOR (AD) | - |
| 910 | – | WR78X8307 FF O. DOOR (WH) | - |
| 910 | – | WR78X8308 FF O. DOOR (AD) | - |
