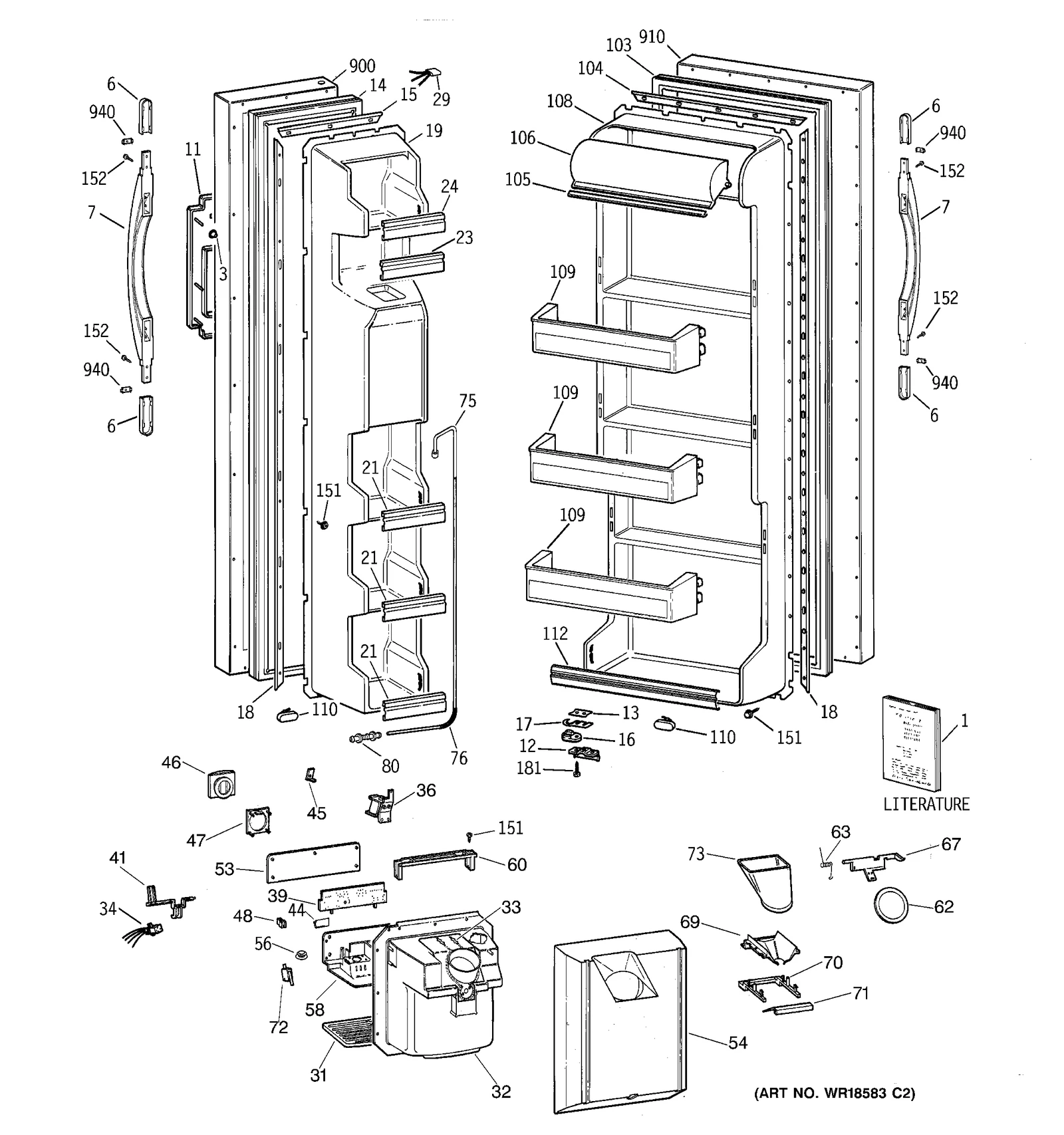

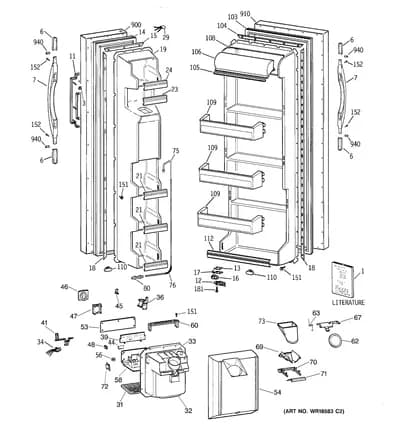

DOORS
Parts in DOORS
73 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51187 PM MINI MANUAL WIRING | - |
| 1 | – | 39-6425 PM GUIDE OWNERS EFS | - |
| 3 |  | WR2X8669replaces WR02X8669 FASTENER TUBULAR | - |
| 6 | | WR12X10207NLA TAIL HANDLE SXS WHITE | Discontinued |
| 7 |  | WR12X10332replaces WR12X10103 HANDLE SXS ASM WH | $41.23 Parts Dr |
| 11 | | TRIM RECESS DISP WH | - |
| 12 | | STOP DOOR WH | Discontinued |
| 13 | | WR02X7490NLA SHIM CAM & DOOR STOP | Discontinued |
| 14 | | GASKET DOOR | Discontinued |
| 15 | – | WR17X3119 RETAINER STRIP | - |
| 16 |  | HINGE CAM RISER | $8.07 Parts Dr |
| 18 | | RETAINER STRIP | Discontinued |
| 19 | – | WR77X0600 DOOR INNER FZ | - |
| 21 | | WR17X4029NLA FRONT DOOR SHELF | Discontinued |
| 23 | – | WR17X4030 FRONT DOOR SHELF | - |
| 24 | | FRONT DOOR SHELF | - |
| 29 | | WR23X0443NLA HARNESS DR HINGE FZ | Discontinued |
| 29 | – | WR23X0457 HARNESS LIGHT SW. | - |
| 31 | | GRILLE RECESS WH | - |
| 32 | | WR17X10205NLA RECESS DISP WH | Discontinued |
| 33 | | WR51X0353NLA HEATER RECESS | Discontinued |
| 36 |  | WR62X107replaces WR62X0078 SOLENOID ASM | $73.95 ApplianceParts Pro |
| 39 | | MODULE TIME DELAY | Discontinued |
| 41 | | WR17X3493NLA CRADLE ACTUATOR | Discontinued |
| 44 | – | WR02X8705 STOP SELECTOR SW WH | - |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 46 | | WR02X8704NLA PAD ACTUATOR WH | Discontinued |
| 47 | | WR02X8681NLA SUPPORT ACTUATOR PAD BK | Discontinued |
| 48 | | KNOB RECESS DISP WH | Discontinued |
| 53 | – | WR17X3719 NAMEPLATE RECESS ASM | - |
| 54 | | INSULATION RECESS | - |
| 56 | – | WR02X8679 PLUG LAMPHOLDER | - |
| 58 | | SHIELD RECESS DISP WH | - |
| 60 | | WR02X8674NLA COVER ELECT | Discontinued |
| 62 |  | WR17X11653replaces WR17X3093 DOOR RECESS ASSY | $12.29 Part Advantage |
| 63 | | SPRING RECESS DOOR | Discontinued |
| 65 | | WZ4X230Dreplaces WZ04X0230 SCR 8-15 A PA 3/8 SS | - |
| 67 |  | CRANK DOOR RECESS | - |
| 69 | | WR17X3095NLA FUNNEL RECESS SHIELD BLA | Discontinued |
| 70 | – | WR02X8954 SUPT. FUNNEL & GUARD WH | - |
| 71 | | DEFLECTOR ICE BK | - |
| 72 | | WR23X0366NLA SWITCH CRADLE ACTUATOR | Discontinued |
| 73 | | CHUTE ICE | - |
| 75 | | GROMMET TUBE ASM | - |
| 76 | | WR2X8933replaces WR02X8933 SLEEVE WATER LINE | - |
| 80 |  | WR02X11330replaces WR02X8545 NUT & UNION ASM | $4.50 Part Advantage |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 98 |  | WR1K1replaces WR01K0001 SCREW 8-36 T IHW 3/8 SN | - |
| 103 | | WR24X0529NLA GASKET DOOR FF | Discontinued |
| 104 | | WR17X1168NLA RETAINER STRIP | Discontinued |
| 105 | | TRIM DAIRY DOOR | - |
| 106 | | DOOR DAIRY CLEAR | - |
| 108 | – | WR77X0599 DOOR INNER FF | - |
| 109 | | MODULE ASM | - |
| 110 | | WR02X8989NLA SUPPORT TWIST BUMPER | Discontinued |
| 112 | | FRONT DOOR SHELF | - |
| 134 |  | SCREW 6-10 PL FLP 1/2 S | $7.95 ApplianceParts Pro |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 152 | | WR01X10038NLA SCREW 8-18 AB FILTER 5/8 | Discontinued |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 180 |  | WE02X10011replaces WR01X1966 SCREW 6-32 PL IHW 3/8 | - |
| 181 | – | WZ06X0105 SCREW | - |
| 231 | – | WR01X1987 RIVET PLASTIC WH | - |
| 231 | – | WR01X2110 PLUG FASTENER | - |
| 276 | | WR01X1510NLA GROMMET SCR | Discontinued |
| 303 | | WD01X1440NLA HOUSING TERMINAL | Discontinued |
| 461 | | WZ6X136replaces WZ06X0136 SCR 8-18 AB HXW 1/2 S | - |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 782 |  | TERMINAL BLOCK ASSY (2 P | - |
| 900 | – | WR78X10217 DOOR FOAM ASM FZ WH | - |
| 910 | – | WR78X10218 DOOR FOAM ASM FF WH | - |
| 940 | – | WR02X10124 BRACKET HANDLE | - |
