Model
RCA MSX24DLG
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX24DLGRefrigerator
4 diagrams329 parts
Parts Sections (4)

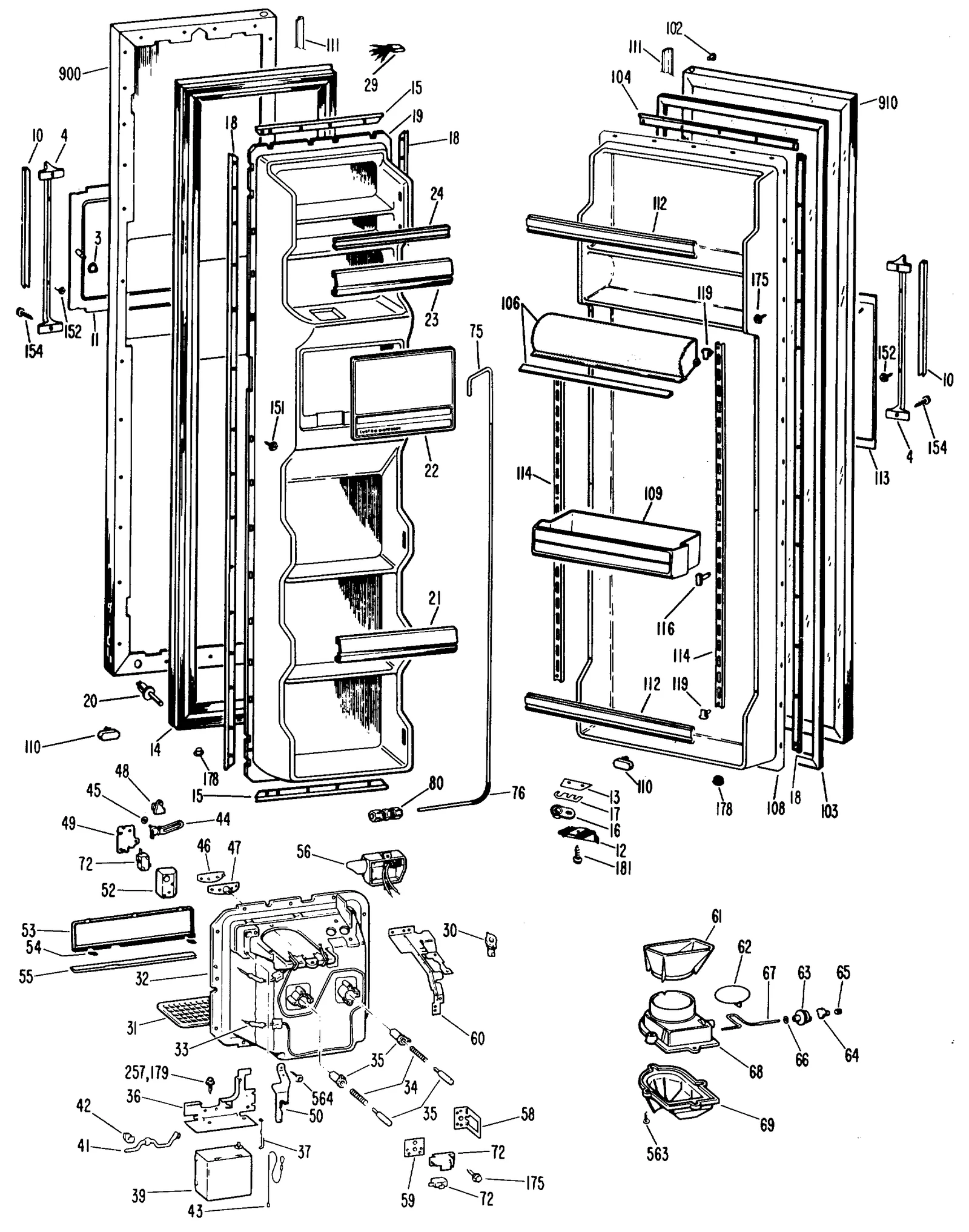

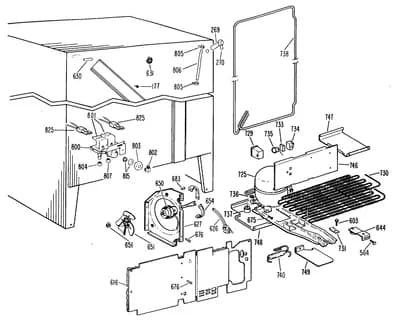

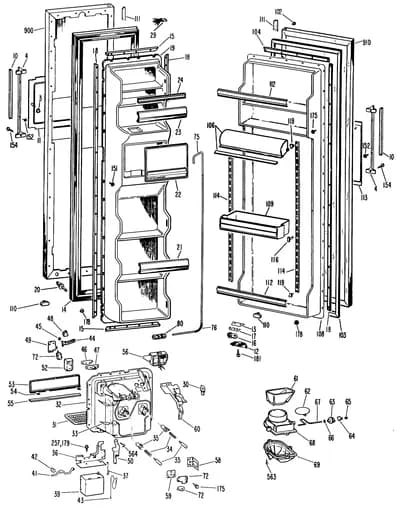

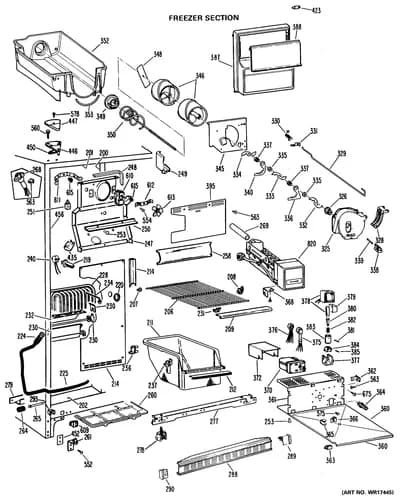

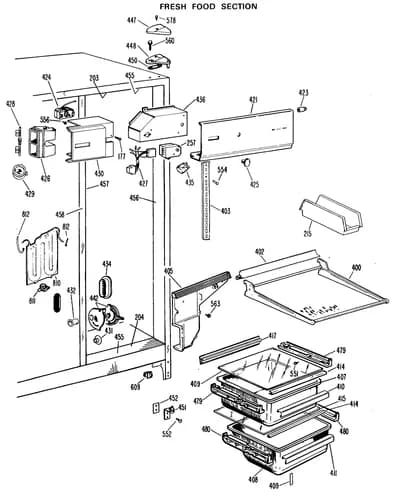

Diagram
Parts List
Parts in Parts List
111 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5023 ATTENTION INSTALLER | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | | WR2X4572replaces WR02X4572 RETAINER HANDLE TOP | - |
| 4 | | WR02X4573NLA BRACKET HANDLE BOTTOM | Discontinued |
| 4 | – | WR12X0428 HANDLE DOOR | - |
| 10 | | WR12X524replaces WR12X0524 INSERT DOOR HANDLE(BLK) | - |
| 11 | | WR1X5469Dreplaces WR01X5469 NUT PAL | - |
| 11 | – | WR38X1313 TRIM RECESS DISP ASM | - |
| 12 | | STOP DOOR | Discontinued |
| 13 | – | WR02X4599 NUTSTRIP | - |
| 14 |  | GASKET FZ DOOR | - |
| 15 | | RETAINER STRIP | - |
| 16 |  | WR2X4901replaces WR02X4901 HINGE CAM RISER | $13.74 Part Advantage |
| 17 | | WR2X6043replaces WR02X6043 SHIM RISER CAM | - |
| 18 | | RETAINER STRIP | Discontinued |
| 19 | – | WR77X0525 DOOR INNER FZ | - |
| 20 | | WR23X0161NLA SWITCH-INTERLOCK-DISP | Discontinued |
| 21 | – | WR17X2520 FRONT DOOR SHELF | - |
| 22 | – | WR17X2518 COVER RECESS REAR ASM | - |
| 23 | – | WR17X2521 UNKNOWN | - |
| 24 | – | WR17X6263 FRONT DOOR SHELF ASM | - |
| 29 | – | WR49X0201 HARNESS KIT RECESS | - |
| 29 | – | WR49X0308 HARNESS DOOR HINGE FZ | - |
| 29 | – | WR49X5102 TERMINAL BLOCK KIT | - |
| 30 | | WR02X4571NLA GROMMET WATER FILL RECES | Discontinued |
| 31 | – | WR02X3953 GRILLE RECESS | - |
| 32 | | WR14X0245NLA GASKET RECESS DISP | Discontinued |
| 32 | – | WR17X2066 RECESS DISPENSER (BLK) | - |
| 33 | – | WR51X0313 HEATER RECESS & DUCT ASM | - |
| 34 | | WR02X3951NLA SPRING-RECESS DUCT | Discontinued |
| 35 | – | WR02X6325 PLUNGER SCW & SLEEVE | - |
| 36 | – | WR02X7840 PLATE BEARING DISP | - |
| 37 | | WR2X4248replaces WR02X4248 SPLICE TIME DELAY DISP | - |
| 39 | | WR9X268replaces WR09X0268 TIME DELAY ASM DISP | - |
| 41 | | CRANK & RIVET ASSY DISPLAY | - |
| 42 | | WR02X4234NLA BEARING-CRANK | Discontinued |
| 43 | – | WR02X4069 KEEPER-LANYARD | - |
| 43 | | WR2X4237replaces WR02X4237 LANYARD DISP | - |
| 44 | | WR2X4460replaces WR02X4460 LEVER SELECTOR SWITCH | - |
| 45 | | WR02X4240NLA RETAINER RING EXT | Discontinued |
| 46 | | WR02X7366NLA PAD CRADLE | Discontinued |
| 47 | – | WR02X7365 CRADLE DISP | - |
| 48 | | WR2X7951replaces WR02X7951 KNOB SELECTOR DISP BK | - |
| 49 | – | WR02X4242 PLATE SELECTOR SWITCH | - |
| 50 | – | WR17X1259 SUPPORT SELECTOR SWITCH | - |
| 52 | | WR02X4459NLA HOUSING SELECTOR SWITCH | Discontinued |
| 53 | – | WR17X2522 SHIELD & INSERT ASM | - |
| 54 | | WR2X4231replaces WR02X4231 BRACKET LIGHT SHIELD | - |
| 55 | | WR38X0844NLA TRIM C METAL | Discontinued |
| 56 | – | STD372071 7C7 | - |
| 56 | | WR02X3959NLA LAMP & SWITCH ASM DISP | Discontinued |
| 56 | | WR02X4570NLA INSULATOR HOUSING | Discontinued |
| 58 | – | WR02X4771 PLATE WATER SW RECESS | - |
| 59 | | WR02X4244NLA INSULATOR SWITCH | Discontinued |
| 60 | | WR2X7244replaces WR02X7244 SUPPORT RECESS SWITCHES | - |
| 61 | | CHUTE ICE | - |
| 62 | | WR17X1586NLA DUCT DOOR W/O LEVER | Discontinued |
| 63 | | PULLEY TIME DELAY | - |
| 64 | | ARM TIME DELAY DISPLAY | - |
| 65 | | WR2X4595replaces WR02X4595 RING COMPRESSION | - |
| 66 | | WR1X1385Dreplaces WR01X1385 WASHER | - |
| 67 | | WR2X4814replaces WR02X4814 CRANK DOOR DUCT DISP | - |
| 68 | | WR14X0246NLA GASKET DUCT-R. SIDE | Discontinued |
| 68 | | WR14X247replaces WR14X0247 GASKET DUCT-L. SIDE | - |
| 68 | – | WR17X1257 DUCT RECESS | - |
| 69 | | SHIELD & FUNNEL ASSY | - |
| 72 | | WR2X7942replaces WR02X7942 CRADLE SWITCH SUPT DISP | $2.48 Parts Dr |
| 72 | | SWITCH SELECT-CUBES DISP | Discontinued |
| 75 | | WATER LINE ASM | - |
| 76 | | WR2X4633replaces WR02X4633 SPRING PROTECT WIRE/TUBE | - |
| 80 | | WR2X4265replaces WR02X4265 CLAMP | - |
| 80 |  | WR02X11330replaces WR02X7223 NUT & UNION ASM | $4.50 Part Advantage |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 102 | | WR2X4990replaces WR02X4990 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 103 | | WR24X5231NLA GASKET FF O DOOR . | Discontinued |
| 104 | | WR17X1168NLA RETAINER STRIP | Discontinued |
| 106 | – | WR22X5088 DAIRY DOOR | - |
| 106 | | TRIM DAIRY DOOR | - |
| 109 | – | WR71X6060 SHELF DOOR MODULE ASM. . | - |
| 110 | | WR02X4678NLA SUPPORT TWIST BUMPER | Discontinued |
| 111 | – | WR38X1037 TRIM DOOR | - |
| 112 | | FRONT DOOR SHELF | - |
| 113 | – | WR38X1038 TRIM RECESS DISP ASM(SL) | - |
| 114 | – | WR17X1391 TRACK DOOR SHELF | - |
| 116 | – | WR02X7507 CAP DOOR TRACK | - |
| 119 | – | WR02X7508 CAP TRACK TOP& BTM. | - |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 152 | | WZ4X355Dreplaces WZ04X0355 SCR 6-18 AB F1 3/8 SS | - |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 154 | – | WR01X5477 SCR SPECIAL 10-16 | - |
| 175 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 178 | | WR02X6058NLA PLUG BUTTON(.562"DIA.) | Discontinued |
| 179 | – | WZ04X0364 SCREW | - |
| 181 | – | WZ06X0105 SCREW | - |
| 257 |  | WR9X502replaces WR09X0412 CONTROL DEF-SANKYO SEIKI | $63.48 Part Advantage |
| 257 | – | WZ05X0160 SCREW TIMER TO BRACKET | - |
| 386 | – | WZ06X0100 SCREW | - |
| 404 | – | WR71X1850 SHELF CANT GLASS ASM | - |
| 453 | – | WR40X1631 BREAKER STRIP R/S FF | - |
| 454 | – | WR40X1629 BREAKER STRIP BTM FF | - |
| 558 | – | WZ06X0107 SCREW | - |
| 563 | | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 564 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 815 | – | WR57X0073 SCREEN & WASHER PKG. | - |
| 900 | – | WR78X7756 FZ.O.DR. W/TRIM(WH) | - |
| 901 | – | WR78X7758 FZ.O.DR. W/TRIM(AD) | - |
| 902 | – | WR78X7757 FZ.O.DR. W/TRIM(HA) | - |
| 910 | – | WR78X7891 FF O.DR. W/TRIM(WH) | - |
| 911 | – | WR78X7892 FF O.DR. W/TRIM(AD) | - |
| 912 | – | WR78X7893 FF O.DR. W/TRIM(HA) | - |
| 32767 | – | 79-6003 OWNERS GUIDE | - |
