Model
RCA MSX25DPBAAA
Refrigerator
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX25DPBAAARefrigerator
5 diagrams311 parts
Parts Sections (5)

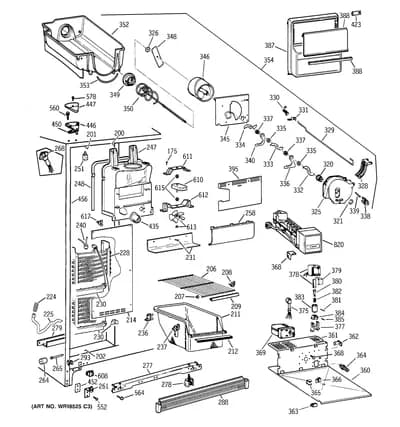

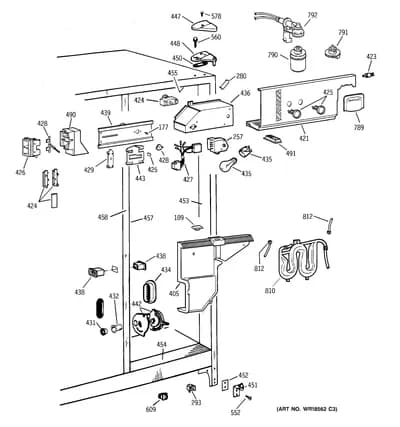

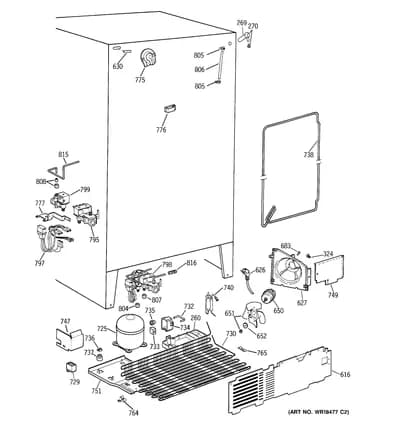

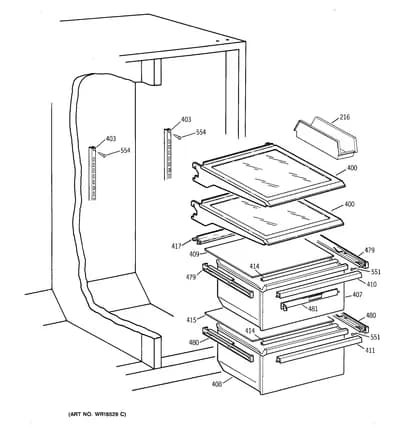

Diagram

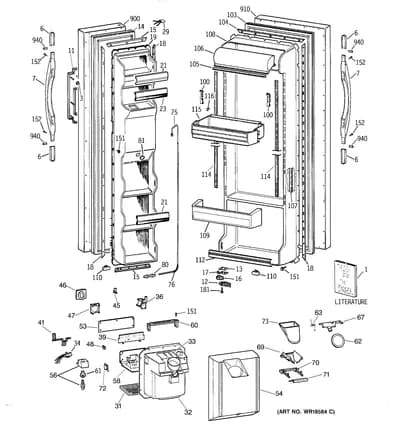

DOORS
Parts in DOORS
89 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51201 PM MINI MANUAL WIRING | - |
| 1 | – | 39-6425 PM GUIDE OWNERS EFS | - |
| 3 |  | WR2X8669replaces WR02X8669 FASTENER TUBULAR | - |
| 6 | | TAIL HANDLE SXS AD | - |
| 7 | | WR12X10331replaces WR12X10099 HANDLE SXS ASM AD | - |
| 11 | – | WR38X10131 TRIM RECESS DISP AD | - |
| 12 | | WR2X9302replaces WR02X9302 STOP DOOR AD | - |
| 13 | – | WR02X4599 NUTSTRIP | - |
| 13 | | WR02X7490NLA SHIM CAM & DOOR STOP | Discontinued |
| 14 | | GASKET DOOR FRZ WH | Discontinued |
| 15 | | RETAINER STRIP | - |
| 16 |  | WR02X10140replaces WR02X9421 HINGE CAM RISER | $8.07 Parts Dr |
| 18 | | WR17X2092NLA RETAINER STRIP | Discontinued |
| 19 | – | WR77X0680 DOOR INNER FZ | - |
| 21 | – | WR17X4038 FRONT DOOR SHELF | - |
| 23 | – | WR17X4039 FRONT DOOR SHELF | - |
| 29 | | WR23X448replaces WR23X0448 HARNESS DR HINGE FZ | - |
| 31 | | GRILLE RECESS AD | - |
| 32 | | RECESS DISP AD | - |
| 33 | | WR51X0353NLA HEATER RECESS | Discontinued |
| 34 | – | WR23X0456 HARNESS LIGHT SW. | - |
| 36 |  | WR62X107replaces WR62X0078 SOLENOID ASM | $73.95 ApplianceParts Pro |
| 39 | | MODULE TIME DELAY | - |
| 41 | | WR17X3493NLA CRADLE ACTUATOR | Discontinued |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 46 | | WR02X8726NLA PAD ACTUATOR AD | Discontinued |
| 47 | | WR02X8681NLA SUPPORT ACTUATOR PAD BK | Discontinued |
| 48 | – | WR02X9154 KNOB RECESS DISP AD | - |
| 53 | – | WR17X4062 NAMEPLATE RECESS AD | - |
| 54 | | INSULATION RECESS | - |
| 56 | – | STD372071 7C7 | - |
| 56 | – | WR02X8686 REFLECTOR LAMP SOCKET | - |
| 58 | | SHIELD RECESS DISP AD | - |
| 60 | | WR2X8685replaces WR02X8685 COVER ELECT | - |
| 61 |  | WR2X9561replaces WR02X9561 LAMP SOCKET | $13.89 Parts Dr |
| 62 |  | WR17X11653replaces WR17X3093 DOOR RECESS ASSY | $12.29 Part Advantage |
| 63 | | SPRING RECESS DOOR | Discontinued |
| 65 | | WZ4X230Dreplaces WZ04X0230 SCR 8-15 A PA 3/8 SS | - |
| 67 |  | CRANK DOOR RECESS | - |
| 69 | | WR17X3095NLA FUNNEL RECESS SHIELD BLA | Discontinued |
| 70 | – | WR02X8956 SUPT. FUNNEL & GUARD AD | - |
| 71 | | WR17X3478NLA WR17X10282 | Discontinued |
| 72 | | WR23X0366NLA SWITCH CRADLE ACTUATOR | Discontinued |
| 73 | | CHUTE ICE | - |
| 75 | | GROMMET & TUBE ASM | Discontinued |
| 76 | | WR2X8933replaces WR02X8933 SLEEVE WATER LINE | - |
| 80 |  | WR02X11330replaces WR02X10067 CONNECTOR WATER LINE | $4.50 Part Advantage |
| 81 | | WR01X2077NLA PLUG BUTTON | Discontinued |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 98 |  | WR1K1replaces WR01K0001 SCREW 8-36 T IHW 3/8 SN | - |
| 100 | – | WR02X8409 HOOK MODULE R/S | - |
| 100 | | WR02X8410NLA HOOK MODULE L/S | Discontinued |
| 103 | | WR24X0526NLA GASKET DOOR FF | Discontinued |
| 104 | | WR17X1168NLA RETAINER STRIP | Discontinued |
| 105 | – | WR38X2259 TRIM DAIRY DOOR | - |
| 106 | | WR22X0383NLA DOOR DAIRY | Discontinued |
| 107 | – | WR72X0256 TRACK DOOR INNER | - |
| 108 | | WR1X1718replaces WR01X1718 SCREW 6-20 AB PA 1/2 SS | - |
| 108 | – | WR77X0681 DOOR INNER FF | - |
| 109 | | SHELF DOOR REMOVABLE ASM | - |
| 110 | | WR02X8989NLA SUPPORT TWIST BUMPER | Discontinued |
| 112 | | FRONT DOOR SHELF | - |
| 114 | | WR72X0257NLA TRACK DOOR SHELF | Discontinued |
| 115 | | SHELF DOOR MODULE ASM | - |
| 116 | | WR02X7829NLA CAP DOOR TRACK | Discontinued |
| 134 |  | SCREW 6-10 PL FLP 1/2 S | $7.95 ApplianceParts Pro |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 152 | | WR01X10038NLA SCREW 8-18 AB FILTER 5/8 | Discontinued |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 154 | | WR1X2116replaces WR01X2116 SCR 10-18 PL PNT 1 1/8 S | - |
| 180 |  | WE02X10011replaces WR01X1966 SCREW 6-32 PL IHW 3/8 | - |
| 181 | – | WZ06X0105 SCREW | - |
| 276 | | WR01X1510NLA GROMMET SCR | Discontinued |
| 303 | | WD01X1440NLA HOUSING TERMINAL | Discontinued |
| 461 | | WZ6X136replaces WZ06X0136 SCR 8-18 AB HXW 1/2 S | - |
| 473 |  | WR1X2048replaces WR01X2048 BEARING SLIDE | $6.60 Part Advantage |
| 584 | – | WZ02X0509 SCR 8-32 MA PA 3/16 S | - |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 753 | – | WB01K5052 SCREW | - |
| 782 |  | TERMINAL BLOCK ASSY (2 P | - |
| 802 | | WR1X1360replaces WR01X1360 CLIP U | - |
| 809 |  | WR1X1936replaces WR01X1936 FASTENER WATER TUBE | - |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 900 | – | WR78X10167 DOOR FOAM ASM FZ AD | - |
| 910 | – | WR78X10168 DOOR FOAM ASM FF AD | - |
| 940 | – | WR02X10124 BRACKET HANDLE | - |
| 941 | | WD01X1391NLA CONNECTOR ELEC. 6 PIN | Discontinued |
| 1458 | – | WB17X5062 TERMINAL BLK ASM (12PIN) | - |
