Model
RCA MSX27DMA
Refrigerator
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX27DMARefrigerator
5 diagrams335 parts

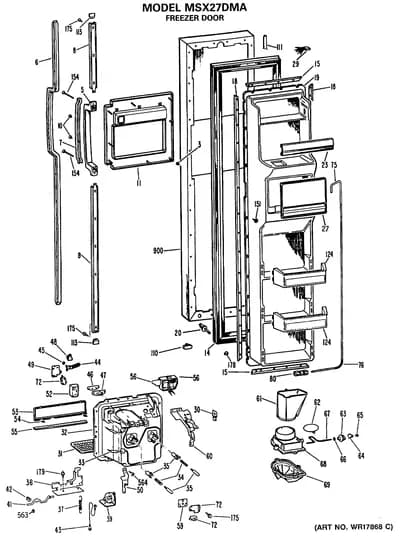

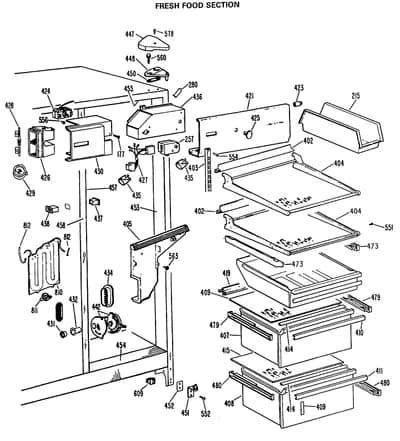

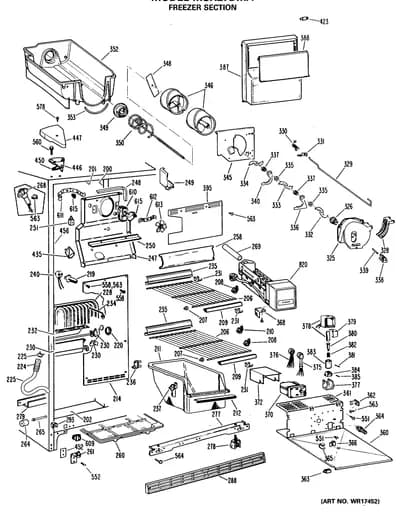

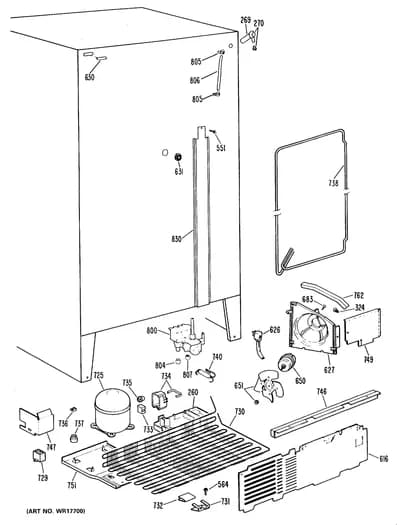

Parts Sections (5)
Diagram

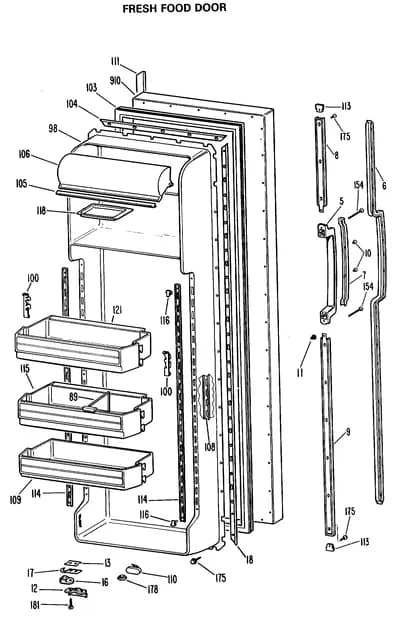

FRESH FOOD DOOR
Parts in FRESH FOOD DOOR
49 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5024 ATTENTION INSTALLER | - |
| 1 | – | 79-6022 GUIDE OWNERS | - |
| 5 |  | WR12X618replaces WR12X0618 HANDLE DOOR | - |
| 6 | | WR12X0619NLA INSERT DR HANDLE(BLK) | Discontinued |
| 7 | – | WR12X0620 STIFFENER HANDLE | - |
| 8 | | WR12X1062replaces WR12X0617 CHANNEL HANDLE | - |
| 9 | | WR12X0616NLA CHANNEL HANDLE | Discontinued |
| 10 | – | WR01X1766 SCREW | - |
| 11 | | WR1X5469Dreplaces WR01X5469 NUT PAL | - |
| 11 | – | WR38X1585 TRIM RECESS DISP ASM | - |
| 12 | | STOP DOOR | Discontinued |
| 13 | | WR02X7489NLA NUTSTRIP | Discontinued |
| 13 | | WR02X7490NLA SHIM CAM & DOOR STOP | Discontinued |
| 16 | | WR02X7512NLA HINGE CAM RISER | Discontinued |
| 18 | | WR17X2092NLA RETAINER STRIP | Discontinued |
| 27 | – | WR17X2915 COVER RECESS REAR ASM | - |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 89 | – | WR02X8049 SNUGGER MODULE | - |
| 93 | – | WR01X1709 SCR 8-18 AB FWH 9/16 SSP | - |
| 100 | – | WR02X8409 HOOK MODULE R/S | - |
| 100 | | WR02X8410NLA HOOK MODULE L/S | Discontinued |
| 103 | | WR24X0448NLA GASKET DOOR FF | Discontinued |
| 104 | | WR17X1168NLA RETAINER STRIP | Discontinued |
| 105 | – | WR38X1185 TRIM | - |
| 106 | – | WR22X0400 DOOR DAIRY | - |
| 108 | – | WR72X0091 TRACK DOOR INNER | - |
| 108 | – | WR77X0506 DOOR INNER FF | - |
| 109 | – | WR71X6106 UNKNOWN | - |
| 110 | | WR02X4678NLA SUPPORT TWIST BUMPER | Discontinued |
| 111 | | WR38X1437NLA TRIM DOOR | Discontinued |
| 113 | | WR2X7871replaces WR02X7871 CAP TRIM HANDLE | - |
| 114 | – | WR72X0092 TRACK DOOR SHELF | - |
| 115 | | DOOR MODULE ASM | - |
| 115 | – | WR71X6107 UNKNOWN | - |
| 116 | | WR02X7829NLA CAP DOOR TRACK | Discontinued |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 154 | – | WR01X1765 SCREW | - |
| 175 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 178 | | WR02X6058NLA PLUG BUTTON(.562"DIA.) | Discontinued |
| 181 | – | WZ06X0105 SCREW | - |
| 471 |  | WR2X8349replaces WR02X8349 GROMMET SCR CLOSED | - |
| 471 | – | WR32X1173 PAN SNACK | - |
| 472 | – | WR38X1186 TRIM | - |
| 687 | – | WZ05X0194 SCREW | - |
| 764 | – | WR02X8222 CLIP COND RECIP | - |
| 801 | – | WR62X0027 COIL ASM-WATER(BLUE) | - |
| 910 | – | WR78X7907 FF O.DR. W/TRIM (WH) | - |
| 910 | – | WR78X7908 FF O.DR. W/TRIM (AD) | - |
