Model
RCA MSX27DRSAAD
Refrigerator
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX27DRSAADRefrigerator
5 diagrams323 parts

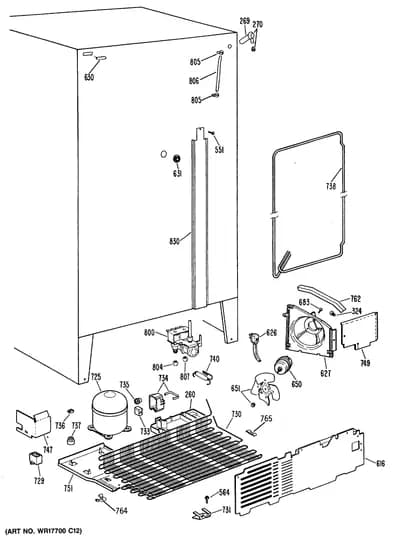

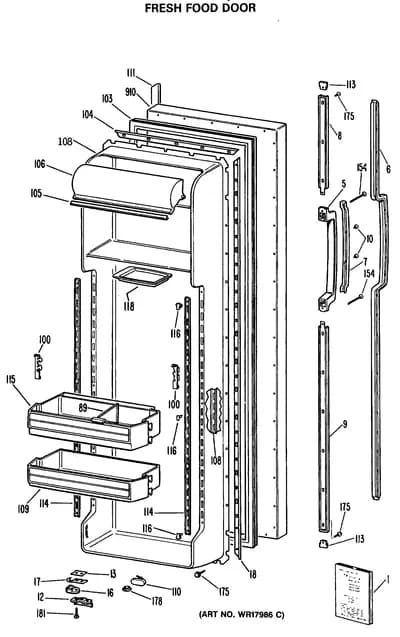

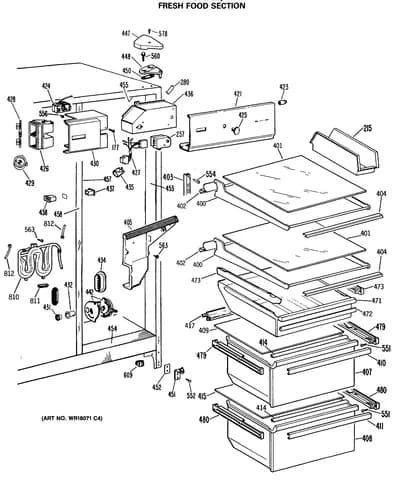

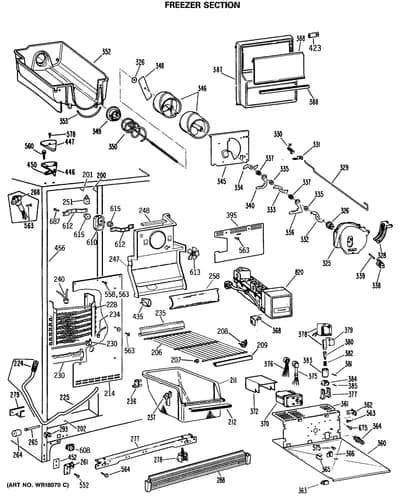

Parts Sections (5)
Diagram

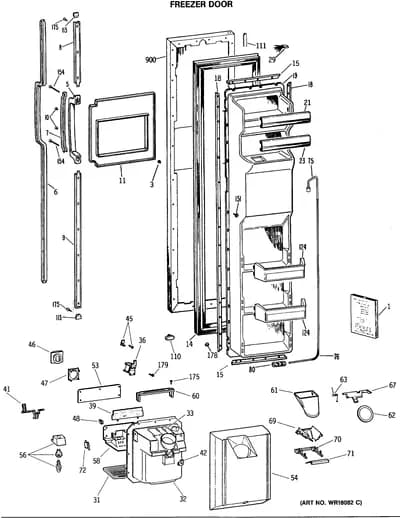

FREEZER DOOR
Parts in FREEZER DOOR
81 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5024 ATTENTION INSTALLER | - |
| 1 | – | 79-3287 GUIDE OWNERS | - |
| 1 | – | SR2807 PM MINI MANUAL WIRING | - |
| 3 |  | WR2X8669replaces WR02X8669 FASTENER TUBULAR | - |
| 5 | | WR12X618replaces WR12X0618 HANDLE DOOR | - |
| 6 | | WR12X0619NLA INSERT DR HANDLE(BLK) | Discontinued |
| 7 | – | WR12X0620 STIFFENER HANDLE | - |
| 8 | | WR12X1062replaces WR12X0918 CHANNEL HANDLE | - |
| 9 | | WR12X0873NLA CHANNEL HANDLE | Discontinued |
| 10 | – | WR01X1766 SCREW | - |
| 11 | | TRIM ASM DISP | - |
| 14 | | GASKET DOOR FRZ WH | Discontinued |
| 14 | – | WZ05X0164 SCREW FAN MTR/BRKT | - |
| 15 | | RETAINER STRIP | - |
| 18 | | WR17X2092NLA RETAINER STRIP | Discontinued |
| 19 | | WR77X0604NLA DOOR INNER FZ | Discontinued |
| 21 | – | WR17X3280 FRONT DOOR SHELF | - |
| 23 | – | WR17X3284 FRONT DOOR SHELF | - |
| 29 | – | WR49X0350 HARNESS DR HINGE FZ | - |
| 31 | | GRILLE RECESS BK | Discontinued |
| 32 | – | WR17X3155 RECESS DISP BK | - |
| 33 | | WR51X0353NLA HEATER RECESS | Discontinued |
| 36 |  | WR62X107replaces WR62X0070 SOLENOID & BRACKET ASM | $73.95 ApplianceParts Pro |
| 39 | | WR55X0042NLA MODULE TIME DELAY | Discontinued |
| 41 | | CRADLE ACTUATOR | Discontinued |
| 42 | – | WR02X8650 CLIP WATER GROMMET | - |
| 45 | – | WR01X1854 SCR 5-20 HILO PHR 5/16 S | - |
| 45 |  | WR2X8818replaces WR02X8661 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 46 | | WR02X8702NLA PAD ACTUATOR BK | Discontinued |
| 47 | | WR02X8681NLA SUPPORT ACTUATOR PAD BK | Discontinued |
| 48 | – | WR02X8676 KNOB RECESS DISP BK | - |
| 53 | – | WR17X3293 NAMEPLATE RECESS ASM | - |
| 54 | – | WR17X3099 INSULATION RECESS | - |
| 56 | – | STD372071 7C7 | - |
| 56 | | WR2X8662replaces WR02X8662 SOCKET LAMP | - |
| 56 | – | WR02X8686 REFLECTOR LAMP SOCKET | - |
| 58 | | WR17X3156NLA SHIELD RECESS DISP BK | Discontinued |
| 60 | | WR2X8685replaces WR02X8685 COVER ELECT | - |
| 61 | | CHUTE ICE | - |
| 62 |  | WR17X11653replaces WR17X3093 DOOR RECESS ASSY | $12.29 Part Advantage |
| 63 | | SPRING RECESS DOOR | Discontinued |
| 65 | | WZ4X230Dreplaces WZ04X0230 SCR 8-15 A PA 3/8 SS | - |
| 67 |  | CRANK DOOR RECESS | - |
| 69 | | WR17X3095NLA FUNNEL RECESS SHIELD BLA | Discontinued |
| 70 | – | WR02X8683 SUPT. FUNNEL & GUARD BK | - |
| 71 | | WR17X3171NLA DEFLECTOR ICE BK | Discontinued |
| 72 | | WR23X0366NLA SWITCH CRADLE ACTUATOR | Discontinued |
| 75 | | GROMMET & TUBE ASM | Discontinued |
| 76 | | WR2X4633replaces WR02X4633 SPRING PROTECT WIRE/TUBE | - |
| 80 | | WR2X4265replaces WR02X4265 CLAMP | - |
| 80 |  | WR02X11330replaces WR02X8545 NUT & UNION ASM | $4.50 Part Advantage |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 110 | | WR02X4678NLA SUPPORT TWIST BUMPER | Discontinued |
| 111 | | WR38X1437NLA TRIM DOOR | Discontinued |
| 113 | | WR2X7871replaces WR02X7871 CAP TRIM HANDLE | - |
| 124 | – | WR71X2400 SHELF DOOR MODULE ASM | - |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 154 | – | WR01X1765 SCREW | - |
| 175 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 175 | – | WR01X1853 SCR 4-24 T PHR 3/4 S | - |
| 178 | | WR02X6058NLA PLUG BUTTON(.562"DIA.) | Discontinued |
| 179 | – | WR01X1856 SCR 8-18 HILO PHR 1/2 S | - |
| 180 | – | WR01X1855 SCR 7-19 HILO FLR 1/2 S | - |
| 187 | – | WH02X0946 SCR 10-32 M HXW 1/4 S | - |
| 276 | | WR01X1510NLA GROMMET SCR | Discontinued |
| 303 | | WD01X1440NLA HOUSING TERMINAL | Discontinued |
| 461 | | WZ6X136replaces WZ06X0136 SCR 8-18 AB HXW 1/2 S | - |
| 494 |  | WD1X1459replaces WD01X1459 INSULATOR HSNG TERM | - |
| 584 | – | WZ02X0509 SCR 8-32 MA PA 3/16 S | - |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 689 | – | WR01X1598 SCR 8 32 GX HXW 1/2 S DP | - |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 691 | – | WX02X0560 SCR 8-32 D HXW 3/8 SS | - |
| 692 |  | WZ4X416replaces WZ04X0416 SCR 8-18 AB HXW 3/4 | $14.95 ApplianceParts Pro |
| 752 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 753 | – | WB01K5052 SCREW | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 900 | | FZ O. DOOR AD | - |
| 1458 | | TERMINAL BLK ASM (3 PIN) | - |
| 1458 | – | WB17X5062 TERMINAL BLK ASM (12PIN) | - |
