ModelRCA
MSX27HMARefrigerator
5 diagrams365 parts

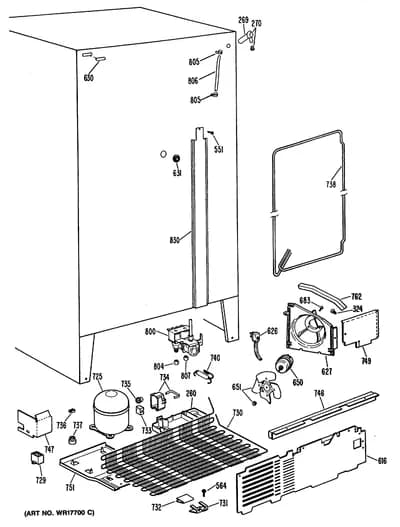

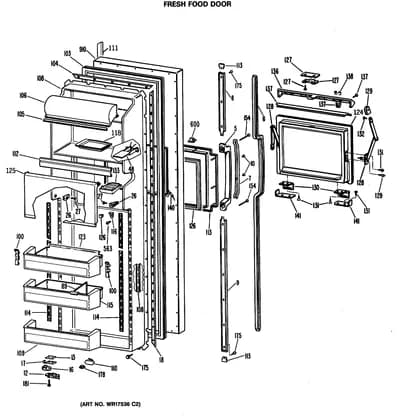

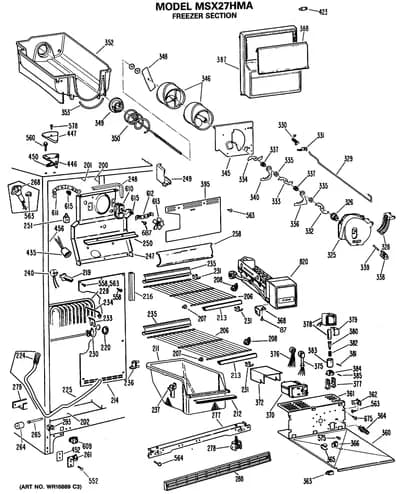

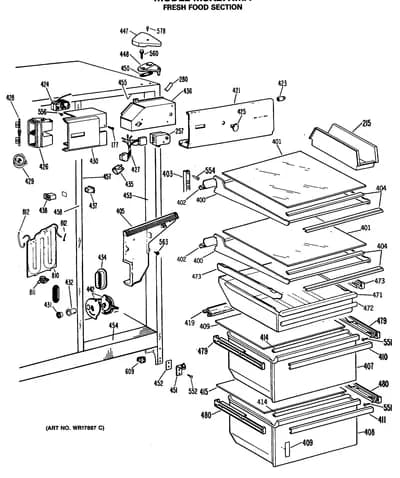

Parts Sections (5)
Diagram

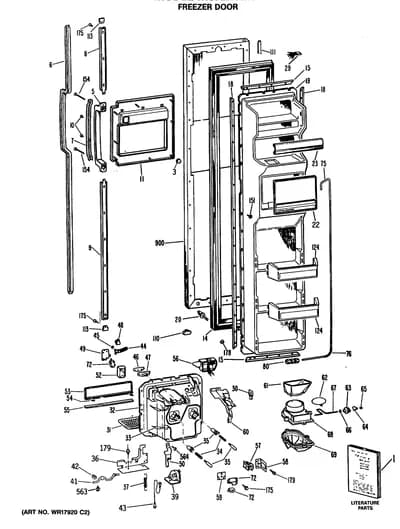

FREEZER DOOR
Parts in FREEZER DOOR
87 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5024 ATTENTION INSTALLER | - |
| 1 | – | 79-6023 GUIDE OWNERS | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 5 | | WR12X618replaces WR12X0618 HANDLE DOOR | - |
| 6 | | WR12X0619NLA INSERT DR HANDLE(BLK) | Discontinued |
| 7 | – | WR12X0620 STIFFENER HANDLE | - |
| 8 | | WR12X1062replaces WR12X0617 CHANNEL HANDLE | - |
| 9 | | WR12X0616NLA CHANNEL HANDLE | Discontinued |
| 10 | – | WR01X1766 SCREW | - |
| 11 | | WR1X5469Dreplaces WR01X5469 NUT PAL | - |
| 11 | – | WR38X1585 TRIM RECESS DISP ASM | - |
| 14 | | GASKET DOOR FRZ | Discontinued |
| 15 | | RETAINER STRIP | - |
| 18 | | WR17X2092NLA RETAINER STRIP | Discontinued |
| 19 | – | WR77X0504 DOOR INNER FZ | - |
| 20 | | WR23X0161NLA SWITCH-INTERLOCK-DISP | Discontinued |
| 22 | – | WR17X2915 COVER RECESS REAR ASM | - |
| 23 | – | WR71X1849 FRONT DOOR SHELF | - |
| 29 | – | WR49X0201 HARNESS KIT RECESS | - |
| 29 | – | WR49X0308 HARNESS DOOR HINGE FZ | - |
| 30 | | WR02X4571NLA GROMMET WATER FILL RECES | Discontinued |
| 31 | – | WR02X3953 GRILLE RECESS | - |
| 32 | – | WR14X0403 GASKET DISP | - |
| 32 | – | WR17X2066 RECESS DISPENSER (BLK) | - |
| 33 | – | WR51X0313 HEATER RECESS & DUCT ASM | - |
| 34 | | WR02X3951NLA SPRING-RECESS DUCT | Discontinued |
| 35 | – | WR02X6325 PLUNGER SCW & SLEEVE | - |
| 36 | – | WR02X8414 PLATE BEARING DISP | - |
| 37 | | WR2X8403replaces WR02X8403 SPRING DISP | - |
| 39 | | WR9X462replaces WR09X0462 DELAY BRKT ASM DISP | - |
| 41 | | CRANK TIME DELAY DISPLAY | - |
| 42 | | WR02X4234NLA BEARING-CRANK | Discontinued |
| 43 |  | WR2X8441replaces WR02X8441 LANYARD ASM DISP | - |
| 44 | | WR2X4460replaces WR02X4460 LEVER SELECTOR SWITCH | - |
| 45 | | WR02X4240NLA RETAINER RING EXT | Discontinued |
| 46 | | WR02X7366NLA PAD CRADLE | Discontinued |
| 47 | – | WR02X7365 CRADLE DISP | - |
| 48 | | WR02X7486NLA LAMP HOUSING ASM | Discontinued |
| 48 | | WR2X7951replaces WR02X7951 KNOB SELECTOR DISP BK | - |
| 49 | – | WR02X4242 PLATE SELECTOR SWITCH | - |
| 50 | – | WR17X1259 SUPPORT SELECTOR SWITCH | - |
| 52 | | WR02X4459NLA HOUSING SELECTOR SWITCH | Discontinued |
| 53 | | SHIELD RECESS | - |
| 54 | | WR2X4231replaces WR02X4231 BRACKET LIGHT SHIELD | - |
| 55 | | WR38X0844NLA TRIM C METAL | Discontinued |
| 56 | – | STD372071 7C7 | - |
| 56 | | WR02X3959NLA LAMP & SWITCH ASM DISP | Discontinued |
| 56 | | WR02X4570NLA INSULATOR HOUSING | Discontinued |
| 57 | | SWITCH-CRADLE-WATER SIDE | Discontinued |
| 58 | | WR2X8496replaces WR02X8496 PLATE WATER SW RECESS | - |
| 59 | | WR02X4244NLA INSULATOR SWITCH | Discontinued |
| 60 | | WR2X7244replaces WR02X7244 SUPPORT RECESS SWITCHES | - |
| 61 | | CHUTE ICE | - |
| 62 | | WR17X1586NLA DUCT DOOR W/O LEVER | Discontinued |
| 63 | | PULLEY TIME DELAY | - |
| 64 | | ARM TIME DELAY DISPLAY | - |
| 65 | | WR2X4595replaces WR02X4595 RING COMPRESSION | - |
| 66 | | WR1X1385Dreplaces WR01X1385 WASHER | - |
| 67 | | WR2X4814replaces WR02X4814 CRANK DOOR DUCT DISP | - |
| 68 | | WR14X0246NLA GASKET DUCT-R. SIDE | Discontinued |
| 68 | | WR14X247replaces WR14X0247 GASKET DUCT-L. SIDE | - |
| 68 | – | WR17X1257 DUCT RECESS | - |
| 69 | | SHIELD & FUNNEL ASSY | - |
| 72 | | WR2X7942replaces WR02X7942 CRADLE SWITCH SUPT DISP | $2.48 Parts Dr |
| 72 | | SWITCH SELECT-CUBES DISP | Discontinued |
| 72 | | SWITCH SELECT-CUBES DISP | Discontinued |
| 75 | | WATER LINE ASM | - |
| 76 | | WR2X4633replaces WR02X4633 SPRING PROTECT WIRE/TUBE | - |
| 80 | | WR2X4265replaces WR02X4265 CLAMP | - |
| 80 |  | WR02X11330replaces WR02X8455 NUT & UNION ASM | $4.50 Part Advantage |
| 110 | | WR02X4678NLA SUPPORT TWIST BUMPER | Discontinued |
| 111 | | WR38X1437NLA TRIM DOOR | Discontinued |
| 113 | | WR2X7871replaces WR02X7871 CAP TRIM HANDLE | - |
| 113 | – | WR38X1517 TRIM BREAKER FRAME BK | - |
| 124 | – | WR17X2840 DOOR ASM. CMK. COMPLETE | - |
| 124 | – | WR71X6108 UNKNOWN | - |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 154 | – | WR01X1765 SCREW | - |
| 175 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 178 | | WR02X6058NLA PLUG BUTTON(.562"DIA.) | Discontinued |
| 179 | – | WZ04X0364 SCREW | - |
| 563 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 564 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 764 | – | WR02X8222 CLIP COND RECIP | - |
| 900 | – | WR78X7904 FZ O.DR. W/TRIM(WH) | - |
| 900 | – | WR78X7905 FZ O.DR. W/TRIM(AD) | - |
