Model
RCA MSX27HRBWH
Refrigerator
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX27HRBWHRefrigerator
5 diagrams374 parts
Parts Sections (5)

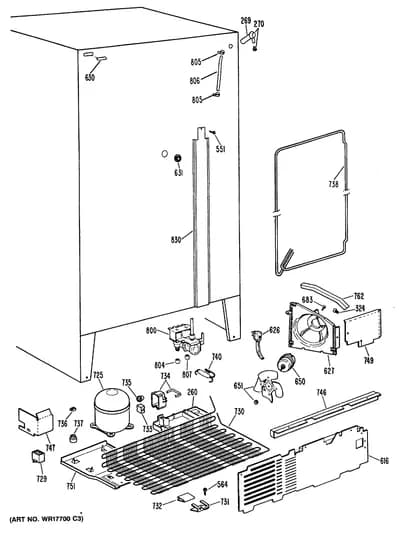

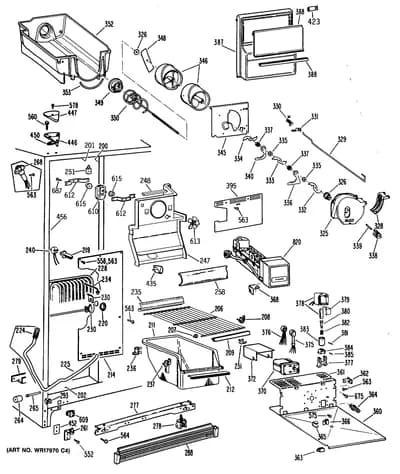

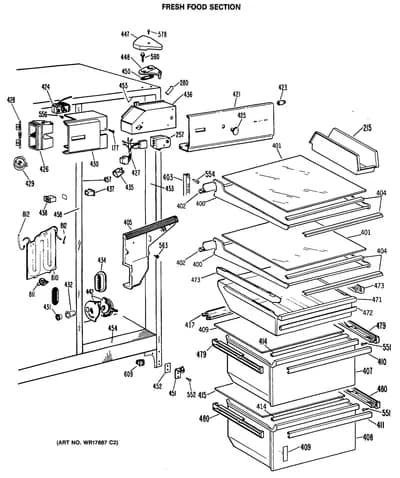

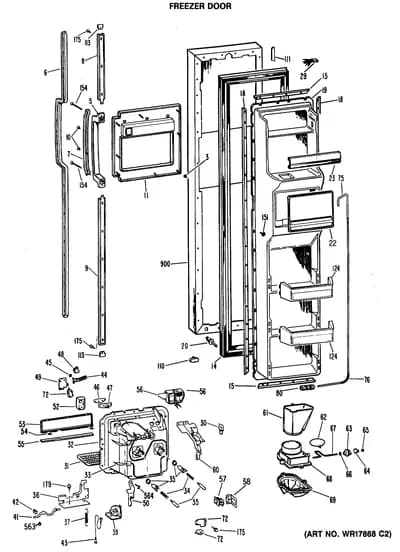

Diagram

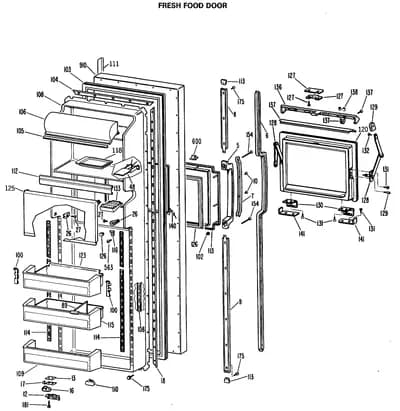

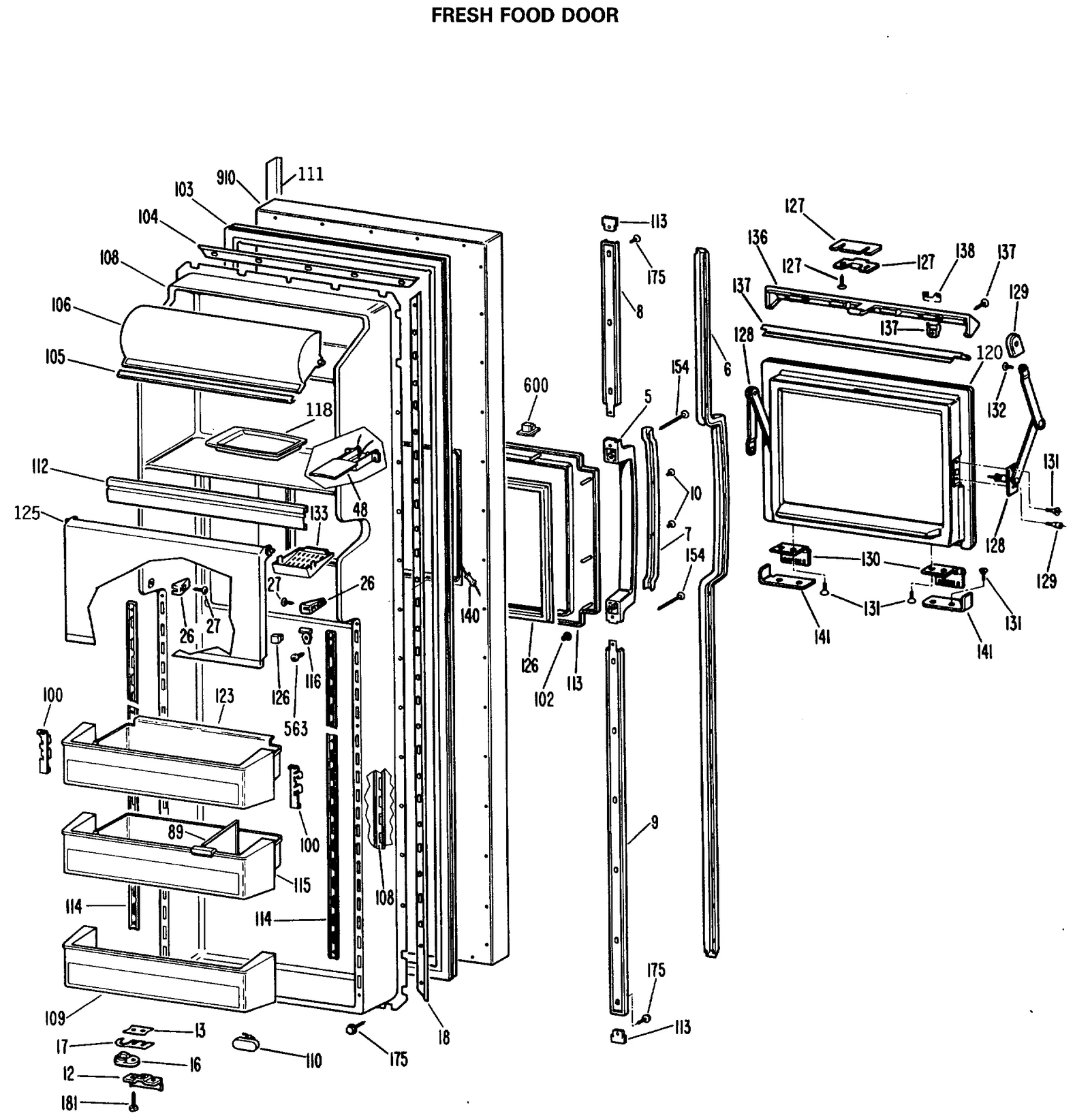

FRESH FOOD DOOR
Parts in FRESH FOOD DOOR
84 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5024 ATTENTION INSTALLER | - |
| 1 | – | 79-6023 GUIDE OWNERS | - |
| 5 |  | WR12X618replaces WR12X0618 HANDLE DOOR | - |
| 6 | | WR12X0619NLA INSERT DR HANDLE(BLK) | Discontinued |
| 7 | – | WR12X0620 STIFFENER HANDLE | - |
| 8 | | WR12X1062replaces WR12X0617 CHANNEL HANDLE | - |
| 9 | | WR12X0616NLA CHANNEL HANDLE | Discontinued |
| 10 | – | WR01X1766 SCREW | - |
| 12 | | STOP DOOR | Discontinued |
| 13 | | WR02X7489NLA NUTSTRIP | Discontinued |
| 13 | | WR02X7490NLA SHIM CAM & DOOR STOP | Discontinued |
| 16 | | WR02X7512NLA HINGE CAM RISER | Discontinued |
| 18 | | WR17X2092NLA RETAINER STRIP | Discontinued |
| 26 | | WR2X7844replaces WR02X7844 SUPPORT RECESS DOOR | - |
| 48 | | WR02X7486NLA LAMP HOUSING ASM | Discontinued |
| 48 | | WR2X7951replaces WR02X7951 KNOB SELECTOR DISP BK | - |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 89 | – | WR02X8049 SNUGGER MODULE | - |
| 100 | – | WR02X8409 HOOK MODULE R/S | - |
| 100 | | WR02X8410NLA HOOK MODULE L/S | Discontinued |
| 102 | | WR2X4990replaces WR02X8162 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 103 | | WR24X0448NLA GASKET DOOR FF | Discontinued |
| 104 | | WR17X1168NLA RETAINER STRIP | Discontinued |
| 105 | – | WR38X1828 TRIM BRIGHT DAIRY | - |
| 106 | – | WR22X0400 DOOR DAIRY | - |
| 108 | | WR1X1718replaces WR01X1718 SCREW 6-20 AB PA 1/2 SS | - |
| 108 | – | WR72X0090 TRACK DOOR INNER | - |
| 108 | – | WR77X0505 DOOR INNER FF | - |
| 109 | – | WR71X6106 UNKNOWN | - |
| 110 | | WR02X4678NLA SUPPORT TWIST BUMPER | Discontinued |
| 111 | | WR38X1437NLA TRIM DOOR | Discontinued |
| 112 | | FRONT DOOR SHELF | - |
| 113 | | WR2X7871replaces WR02X7871 CAP TRIM HANDLE | - |
| 113 | – | WR38X1517 TRIM BREAKER FRAME BK | - |
| 114 | – | WR72X0088 TRACK DOOR SHELF | - |
| 115 | | DOOR MODULE ASM | - |
| 116 | | WR02X7829NLA CAP DOOR TRACK | Discontinued |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 120 | – | WR17X2840 DOOR ASM. CMK. COMPLETE | - |
| 121 | – | WR01X1703 SCREW | - |
| 123 | – | WR71X6109 SHELF DOOR MODULE | - |
| 125 | – | WR22X0464 DOOR ASM RECESS | - |
| 126 | | WR02X7828NLA BUMPER DOOR RECESS | Discontinued |
| 126 | – | WR24X0453 GASKET CMK | - |
| 127 | | WR02X7830NLA CATCH CMK | Discontinued |
| 128 | – | WR13X0605 ARM STOP ASM RH | - |
| 128 | | WR13X0606NLA ARM STOP ASM LH | Discontinued |
| 129 | – | WR01X1706 CAP SCREW STOP | - |
| 129 | – | WR01X1710 WASHER | - |
| 129 | – | WR01X1760 SLEEVE | - |
| 130 | | WR13X607replaces WR13X0607 HINGE CMK-R.SIDE | - |
| 130 | – | WR13X0608 HINGE CMK-L.SIDE | - |
| 131 | | WR1X1707replaces WR01X1707 SCR 10-24 TX 11/16 | - |
| 132 | – | WR01X1708 SCREW | - |
| 133 | | SHIELD LIGHT CMK | - |
| 136 | – | WR12X0666 HANDLE CMK | - |
| 137 | – | WR01X1711 CLIP CMK DOOR | - |
| 137 | – | WR38X1055 TRIM-HANDLE-CMK DOOR | - |
| 138 | – | WR02X7353 SPRING CMK DOOR | - |
| 140 | – | WR51X0329 HEATER BRKER FRAME ASM | - |
| 141 | – | WR02X8157 BRACKET HINGE | - |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 154 | – | WR01X1765 SCREW | - |
| 175 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 178 | | WR02X6058NLA PLUG BUTTON(.562"DIA.) | Discontinued |
| 181 | – | WZ06X0105 SCREW | - |
| 276 | | WR01X1510NLA GROMMET SCR | Discontinued |
| 461 | | WZ6X136replaces WZ06X0136 SCR 8-18 AB HXW 1/2 S | - |
| 562 | | TERMINAL | - |
| 562 | – | WX05X0558 SCR 8-32 G TR 5/8 S NS | - |
| 584 | – | WZ02X0509 SCR 8-32 MA PA 3/16 S | - |
| 600 | | WR23X362replaces WR23X0323 SWITCH LIGHT WH | - |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 680 |  | WR1X1850replaces WR01X1850 SCR 7-19 HXW 1/2 | $7.95 ApplianceParts Pro |
| 689 | – | WR01X1598 SCR 8 32 GX HXW 1/2 S DP | - |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 691 | – | WX02X0560 SCR 8-32 D HXW 3/8 SS | - |
| 692 |  | WZ4X416replaces WZ04X0416 SCR 8-18 AB HXW 3/4 | $14.95 ApplianceParts Pro |
| 764 | – | WR02X8222 CLIP COND RECIP | - |
| 782 |  | TERMINAL BLOCK ASSY (2 P | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 910 | – | WR78X8150 FF O.DR. W/TRIM (WH) | - |
| 1458 | | TERMINAL BLK ASM (3 PIN) | - |
| 1506 | | WB17X5059NLA HOUSING SOCKET PKG 9 PIN | Discontinued |
