Model
RCA MSX27XLJ
Refrigerator
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelRCA
MSX27XLJRefrigerator
5 diagrams354 parts

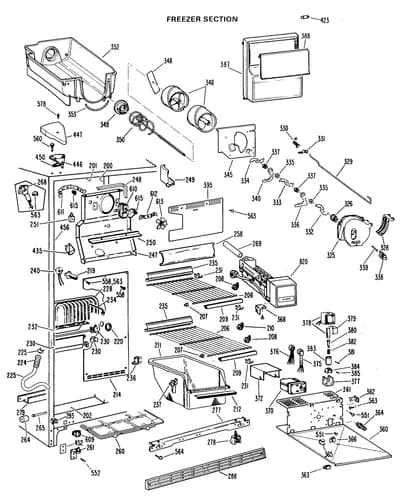

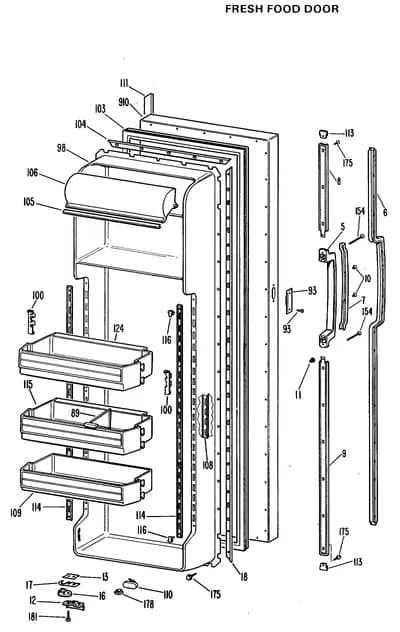

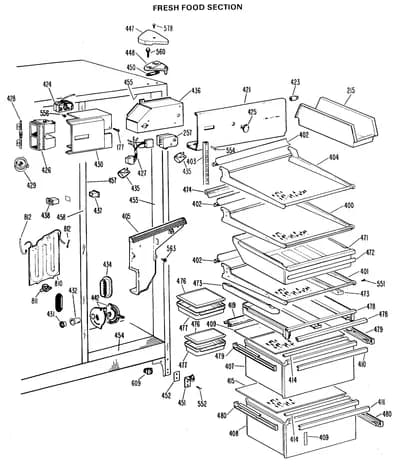

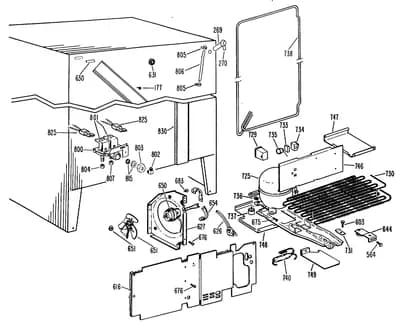

Parts Sections (5)
Diagram

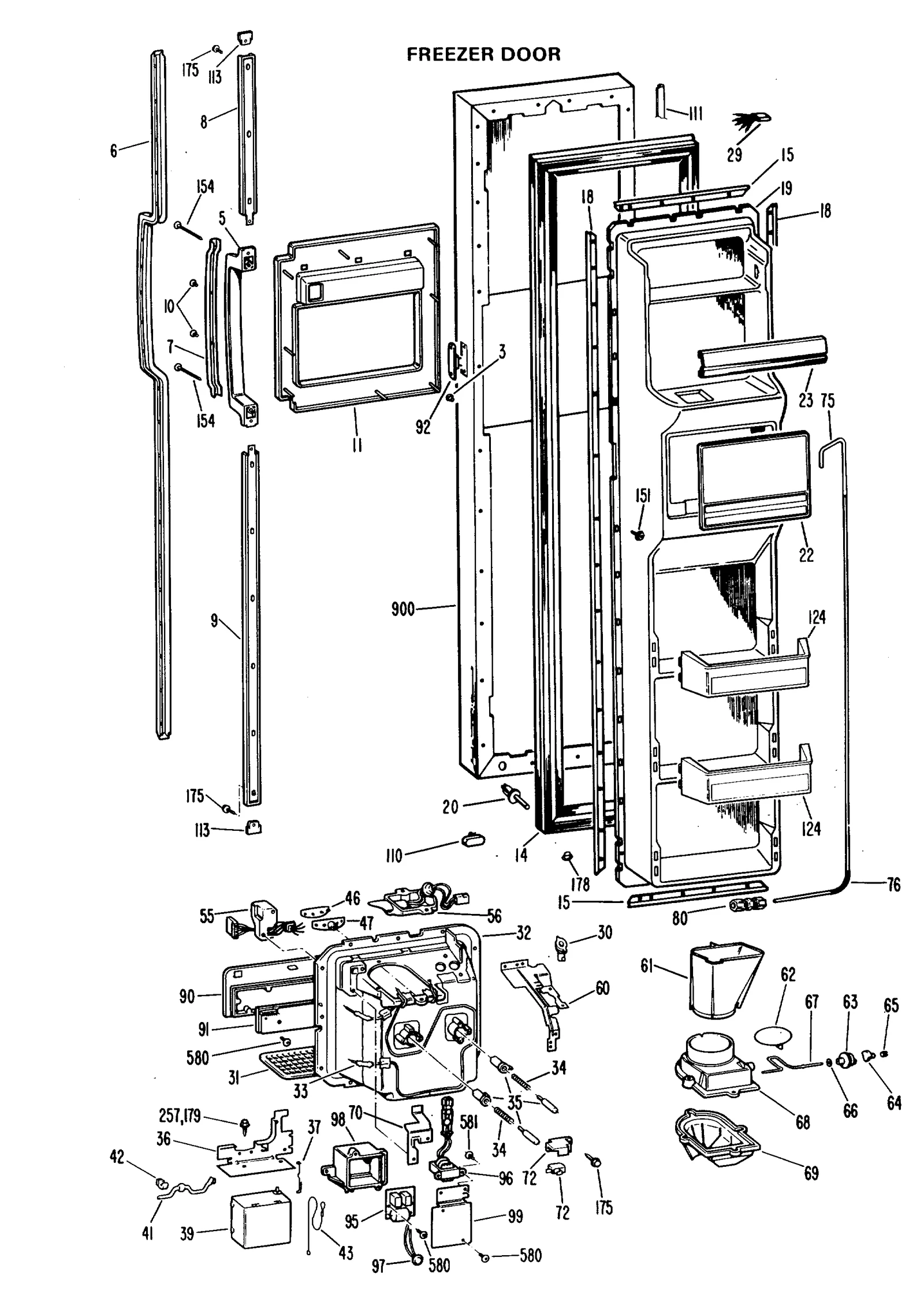

FREEZER DOOR
Parts in FREEZER DOOR
89 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5024 ATTENTION INSTALLER | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 5 | | WR12X618replaces WR12X0618 HANDLE DOOR | - |
| 6 | | WR12X0619NLA INSERT DR HANDLE(BLK) | Discontinued |
| 7 | – | WR12X0620 STIFFENER HANDLE | - |
| 8 | | WR12X1062replaces WR12X0617 CHANNEL HANDLE | - |
| 9 | | WR12X0616NLA CHANNEL HANDLE | Discontinued |
| 10 | – | WR01X1766 SCREW | - |
| 11 | | WR1X5469Dreplaces WR01X5469 NUT PAL | - |
| 11 | – | WR38X1314 TRIM RECESS FZ ASM | - |
| 14 | | GASKET DOOR FRZ | Discontinued |
| 15 | | RETAINER STRIP | - |
| 18 | | WR17X2092NLA RETAINER STRIP | Discontinued |
| 19 | – | WR77X0504 DOOR INNER FZ | - |
| 20 | | WR23X0161NLA SWITCH-INTERLOCK-DISP | Discontinued |
| 22 | – | WR17X2519 COVER RECESS REAR ASM | - |
| 23 | – | WR71X1849 FRONT DOOR SHELF | - |
| 29 | | WR49X0301NLA HARNESS- O DOOR RECESS | Discontinued |
| 29 | – | WR49X0308 HARNESS DOOR HINGE FZ | - |
| 30 | | WR02X4571NLA GROMMET WATER FILL RECES | Discontinued |
| 31 | – | WR02X3953 GRILLE RECESS | - |
| 32 | | WR14X0245NLA GASKET RECESS DISP | Discontinued |
| 32 | | WR17X2047NLA RECESS DISPENSER(BLACK) | Discontinued |
| 33 | – | WR51X0313 HEATER RECESS & DUCT ASM | - |
| 34 | | WR02X3951NLA SPRING-RECESS DUCT | Discontinued |
| 35 | – | WR02X6325 PLUNGER SCW & SLEEVE | - |
| 36 | – | WR02X7840 PLATE BEARING DISP | - |
| 37 | | WR2X4248replaces WR02X4248 SPLICE TIME DELAY DISP | - |
| 39 | | WR9X268replaces WR09X0268 TIME DELAY ASM DISP | - |
| 41 | | CRANK & RIVET ASSY DISPLAY | - |
| 42 | | WR02X4234NLA BEARING-CRANK | Discontinued |
| 43 | – | WR02X4069 KEEPER-LANYARD | - |
| 43 | | WR2X4237replaces WR02X4237 LANYARD DISP | - |
| 46 | | WR02X7366NLA PAD CRADLE | Discontinued |
| 47 | – | WR02X7365 CRADLE DISP | - |
| 55 | – | WR23X0306 HARNESS & HOUSING-RECESS | - |
| 56 | – | STD372071 7C7 | - |
| 56 | | WR02X4570NLA INSULATOR HOUSING | Discontinued |
| 56 | – | WR02X7910 LAMP DISP ASM | - |
| 60 | | WR2X7244replaces WR02X7244 SUPPORT RECESS SWITCHES | - |
| 61 | | CHUTE ICE | - |
| 62 | | WR17X1586NLA DUCT DOOR W/O LEVER | Discontinued |
| 63 | | PULLEY TIME DELAY | - |
| 64 | | ARM TIME DELAY DISPLAY | - |
| 65 | | WR2X4595replaces WR02X4595 RING COMPRESSION | - |
| 66 | | WR1X1385Dreplaces WR01X1385 WASHER | - |
| 67 | | WR2X4814replaces WR02X4814 CRANK DOOR DUCT DISP | - |
| 68 | | WR14X0246NLA GASKET DUCT-R. SIDE | Discontinued |
| 68 | | WR14X247replaces WR14X0247 GASKET DUCT-L. SIDE | - |
| 68 | – | WR17X1257 DUCT RECESS | - |
| 69 | | SHIELD & FUNNEL ASSY | - |
| 70 | – | WR02X7245 SUPPORT SELECTOR SWITCH | - |
| 72 | | WR2X7942replaces WR02X7942 CRADLE SWITCH SUPT DISP | $2.48 Parts Dr |
| 72 | | SWITCH SELECT-CUBES DISP | Discontinued |
| 75 | | WATER LINE ASM | - |
| 76 | | WR2X4633replaces WR02X4633 SPRING PROTECT WIRE/TUBE | - |
| 80 | | WR2X4265replaces WR02X4265 CLAMP | - |
| 80 |  | WR02X11330replaces WR02X7223 NUT & UNION ASM | $4.50 Part Advantage |
| 87 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 91 | – | WR02X7313 PLUG SWITCH | - |
| 91 | – | WR02X7314 CLIP-PLASTIC | - |
| 91 | – | WR55X0025 BOARD ASM LOGIC | - |
| 92 | – | WR23X0310 SENSOR DOOR FF & FZ | - |
| 95 | | WR55X0013NLA BOARD ASM POWER SUPPLY | Discontinued |
| 96 | – | WR62X0039 TRANSFORMER ASM | - |
| 97 | | WR52X24replaces WR52X0024 THERMISTOR & CONN ASM | - |
| 98 | – | WR02X7349 HOUSING POWER MODULE | - |
| 99 | – | WR02X7350 COVER HOUSING-MODULE | - |
| 108 | – | WR77X0506 DOOR INNER FF | - |
| 110 | | WR02X4678NLA SUPPORT TWIST BUMPER | Discontinued |
| 111 | | WR38X1437NLA TRIM DOOR | Discontinued |
| 113 | | WR2X7871replaces WR02X7871 CAP TRIM HANDLE | - |
| 124 | | WR71X1852NLA SHELF DOOR MODULE ASM | Discontinued |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 154 | – | WR01X1765 SCREW | - |
| 175 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 178 | | WR02X6058NLA PLUG BUTTON(.562"DIA.) | Discontinued |
| 179 | – | WZ04X0364 SCREW | - |
| 257 |  | WR9X489replaces WR09X0427 CONTROL DEFROST | $34.61 Part Advantage |
| 257 | – | WZ05X0160 SCREW TIMER TO BRACKET | - |
| 470 |  | WR2X3139replaces WR02X3139 PLUG BUTTON | - |
| 580 | – | WZ02X0561 SCR 6-20 AB PH 3/8 S | - |
| 581 |  | WZ4X44Dreplaces WZ04X0390 SCREW | $51.35 ApplianceParts Pro |
| 687 | – | WZ05X0194 SCREW | - |
| 900 | – | WR78X7819 FZ.O.DR W/TRIM(WH) | - |
| 900 | – | WR78X7821 FRZ O DOOR (HA) | - |
| 901 | – | WR78X7820 FZ.O.DR W/TRIM(AD) | - |
| 32767 | – | 79-6004 PM GUIDE OWNERS | - |
