Model
Hotpoint RB502S1WH
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB502S1WHElectric Range
3 diagrams92 parts

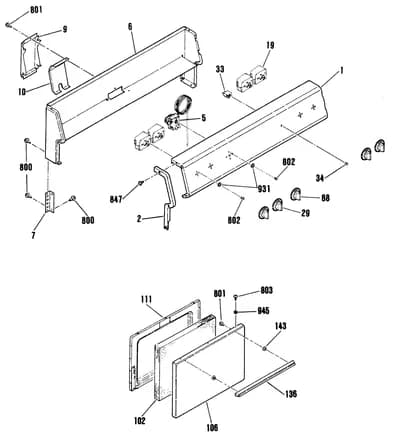

Parts Sections (3)
Diagram
Parts List
Parts in Parts List
27 parts

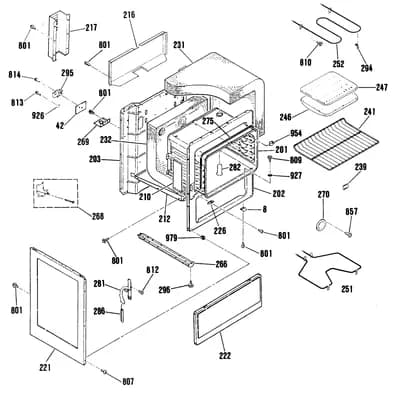

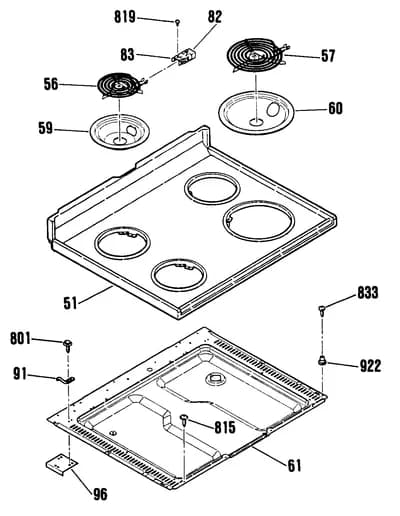

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 51 |  | WB62M12replaces WB62M0012 MAIN TOP-WHITE | - |
| 56 |  | WB30M1replaces WB30X5109 UNIT ASM 6 INCH PLUG IN | $32.76 Part Advantage |
| 57 |  | WB30M2replaces WB30K5027 8" SURFACE ELEMENT | $44.65 Part Advantage |
| 59 |  | WB31K10265replaces WB31M0016 6" BURNER BOWL-CHROME | $4.94 Part Advantage |
| 60 |  | WB31K10266replaces WB31M0015 8" BURNER BOWL-CHROME | $5.43 Part Advantage |
| 61 | | WB64K5097replaces WB64K5066 UNKNOWN | - |
| 82 |  | WB17X210replaces WB17K5017 WB17X210 | $52.71 Part Advantage |
| 83 |  | WB17X211replaces WB17X0211 TERMINAL BLOCK CLIP | $20.27 ApplianceParts Pro |
| 91 | | WB14X126replaces WB14X0126 MT HINGE-LT | - |
| 91 | | WB14X127replaces WB14X0127 MT HINGE-RT | - |
| 96 | – | WB02X9418 REINFORCEMENT PLATE | - |
| 146 | – | WB02X9037 DOOR HANDLE SPACER-BLACK | - |
| 212 | – | WB02K5093 INS RETAINER-LO | - |
| 255 |  | WB17X5095replaces WB17M0005 POWER RING HOUSING | $69.99 Parts Dr |
| 300 | – | WB02M0086 BRIDGE SPACER | - |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 815 |  | WB1X1176replaces WB01X1176 SCREW-BLACK | - |
| 819 |  | WB1X1118replaces WB01X1158 SCREW-NICKEL | $7.18 RepairClinic |
| 833 | | WB1X1131replaces WB01X1131 SCREW | - |
| 922 | | WB14X0105NLA MT STRIKE | Discontinued |
| 999 | – | 31-10059 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13123 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 39-4725 USE & CARE MANUAL | - |
| 999 | – | WB18K5361 MAIN WIRE HARNESS | - |
| 999 | | WB18K5414NLA MAINTOP WIRE HARNESS | Discontinued |
| 999 | | BURNER BOWL-8" PORC-OPT | - |
| 999 |  | BURNER BOWL-6" PORC-OPT | - |
