Model
Hotpoint RB502S3WH
Electric Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB502S3WHElectric Range
4 diagrams90 parts

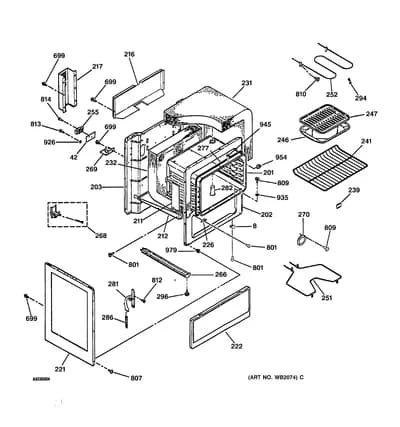

Parts Sections (4)
Diagram

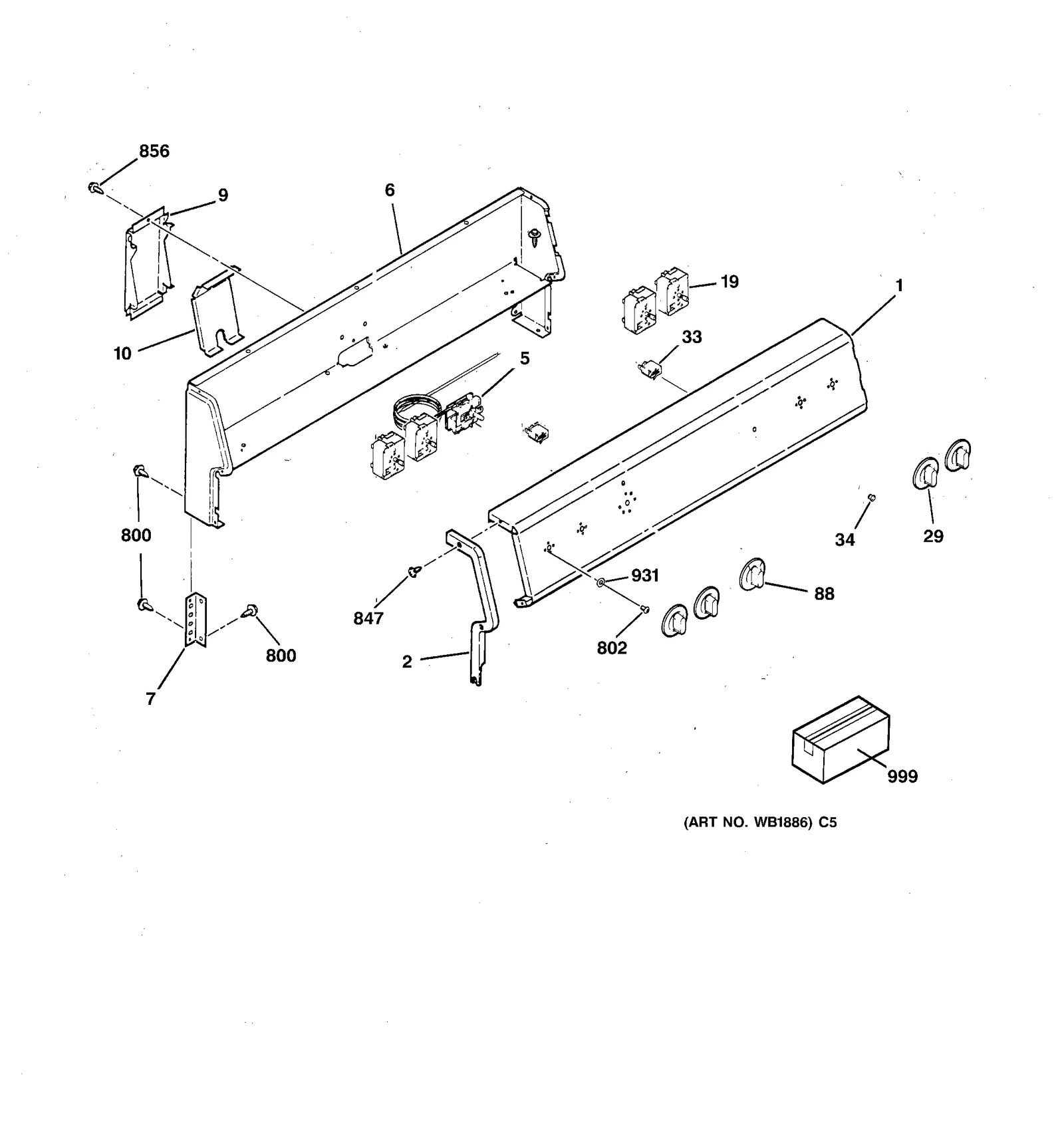

CONTROL PANEL
Parts in CONTROL PANEL
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB36K5318 CONTROL PANEL (SCR) | - |
| 2 |  | END CAP RT-BLK | - |
| 2 | | END CAP LT-BLK | - |
| 5 |  | OVEN THERMOSTAT | $226.31 Parts Dr |
| 6 | | BACKGUARD BODY | - |
| 7 | – | WB06X0127 BACKGUARD SUPPORT-RT | - |
| 7 | – | WB06X0128 BACKGUARD SUPPORT LT | - |
| 9 | – | WB02X9415 WIRE RACEWAY | - |
| 10 | | WB06X0134NLA COVER RACEWAY | Discontinued |
| 19 |  | ELEMENT CONTROL 2350W | $87.80 Part Advantage |
| 19 |  | WB23M24replaces WB23M0024 ELEMENT CONTROL 1400W | $76.28 Part Advantage |
| 29 |  | INFINITE KNOB-BLK | Discontinued |
| 33 |  | WB25T10039replaces WB25X0092 INDICATOR LIGHT | $21.34 ApplianceParts Pro |
| 34 |  | WB25T10042replaces WB25X0094 INDICATOR LIGHT LENS | $7.94 RepairClinic |
| 88 | | WB3K5115replaces WB03K5115 THERMOSTAT KNOB | - |
| 800 |  | WB1M1replaces WB01K5138 SCREW | $7.64 RepairClinic |
| 802 | – | WB01K5123 SCREW | - |
| 847 |  | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 856 |  | WB1X1293replaces WB01X1293 SCREW TC10-32X.250HEXNI | $5.09 Part Advantage |
| 999 | – | 31-10059 INSTALLATION INSTRUCTION | - |
| 999 | – | 39-4725 USE & CARE MANUAL | - |
| 999 | – | SR13216 MINI MANUAL/WIRE DIAGRAM | - |
