Model
Hotpoint RB524*R1
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB524*R1Electric Range
3 diagrams80 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
34 parts

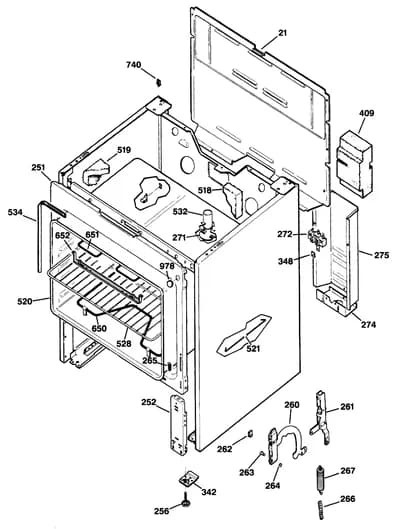

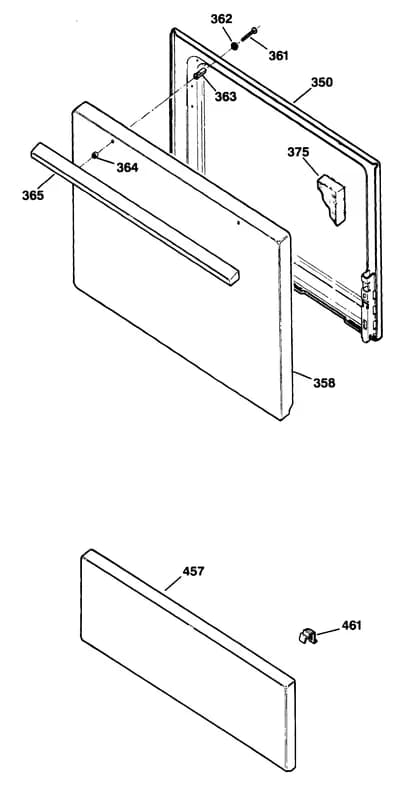

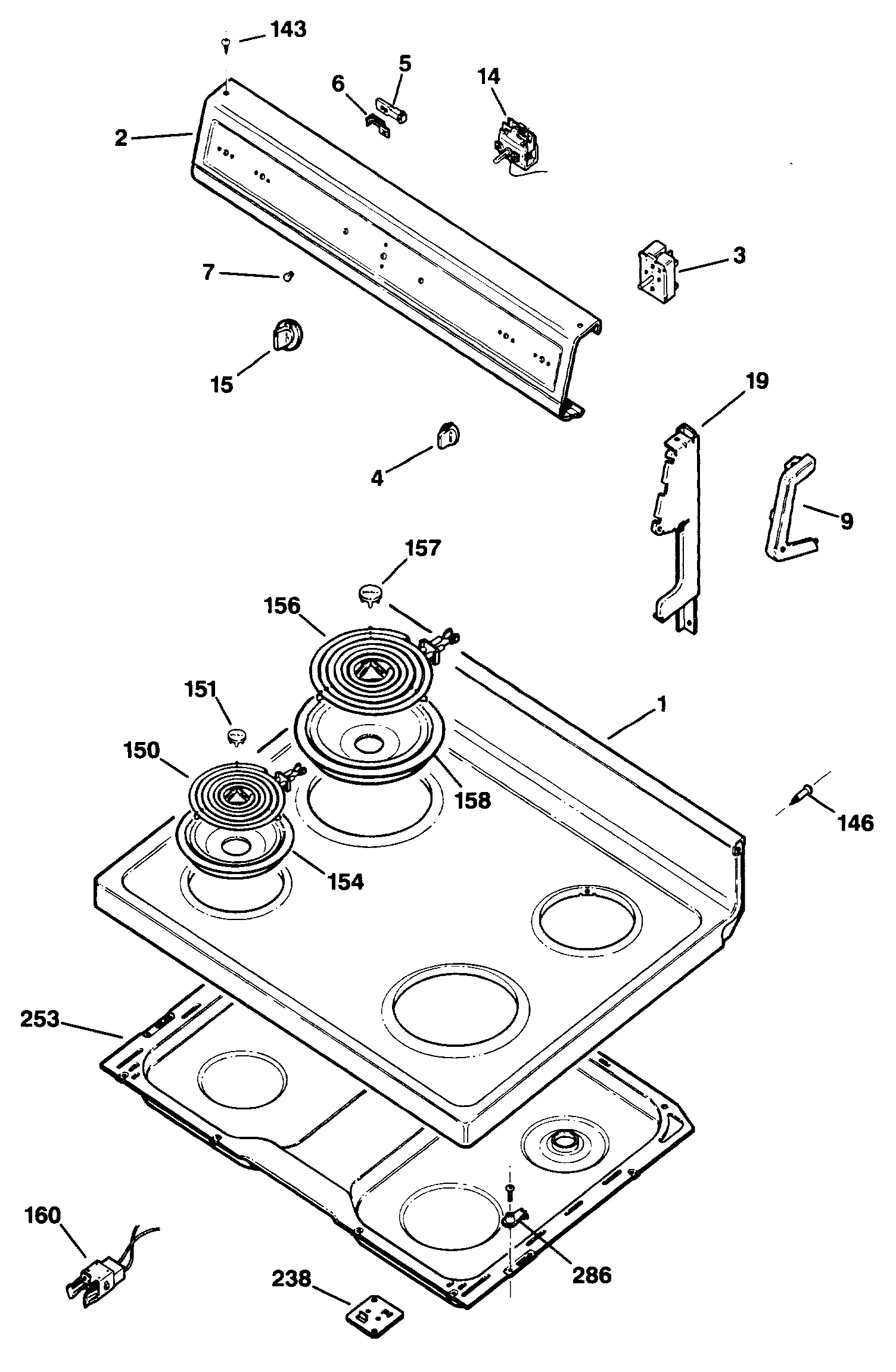

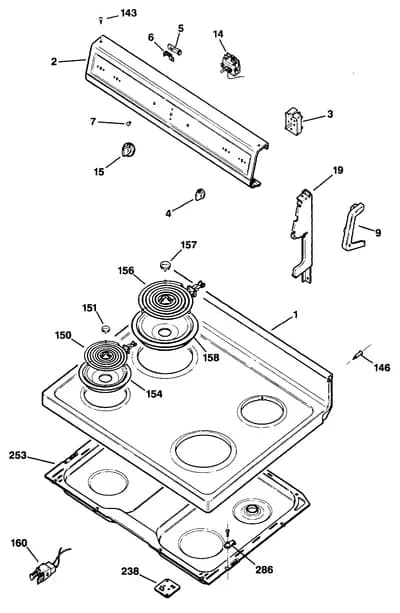

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X5387 COOKTOP AD | - |
| 1 | – | WB62X5388 COOKTOP WH | - |
| 2 | – | WB07X7138 TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 6 | | WB02X1185NLA CLIP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB21X5287NLA THERMOSTAT | Discontinued |
| 15 | | WB03X5793NLA KNOB THERMOSTAT | Discontinued |
| 19 | – | WB07X7125 PLATE END R | - |
| 19 | | WB7X7126replaces WB07X7126 PLATE END L | - |
| 58 |  | WB1X536replaces WB01X0536 SCREW | $16.81 Parts Dr |
| 143 | | WB01X5860NLA SCREW | Discontinued |
| 146 | – | WB01X5832 SCREW SHOULDER | - |
| 150 |  | WB30M1replaces WB30M0001 6" SURF ELEM | $32.76 Part Advantage |
| 151 | | WB32X0052NLA CENTER TRIM 6" UNIT | Discontinued |
| 154 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 156 |  | WB30M2replaces WB30M0002 8" SURF ELEM | $44.65 Part Advantage |
| 157 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 158 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 160 |  | RECEPTACLE ASM | $20.05 Part Advantage |
| 238 | – | WB02X8122 BRACKET TIE DOWN | - |
| 253 | | WB49X5566replaces WB49X5499 BOX COOKTOP | - |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 769 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 31-1048 MINI MANUAL | - |
| 32767 | – | 31-1048-B WIRING DIAGRAM | - |
| 32767 | – | 39-4700 MANUAL USER | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
