Model
Hotpoint RB524*R2
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB524*R2Electric Range
3 diagrams80 parts

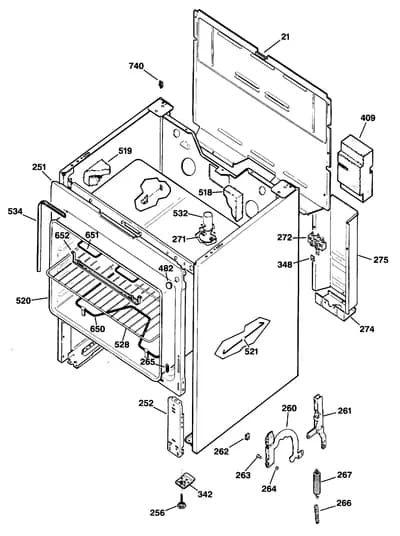

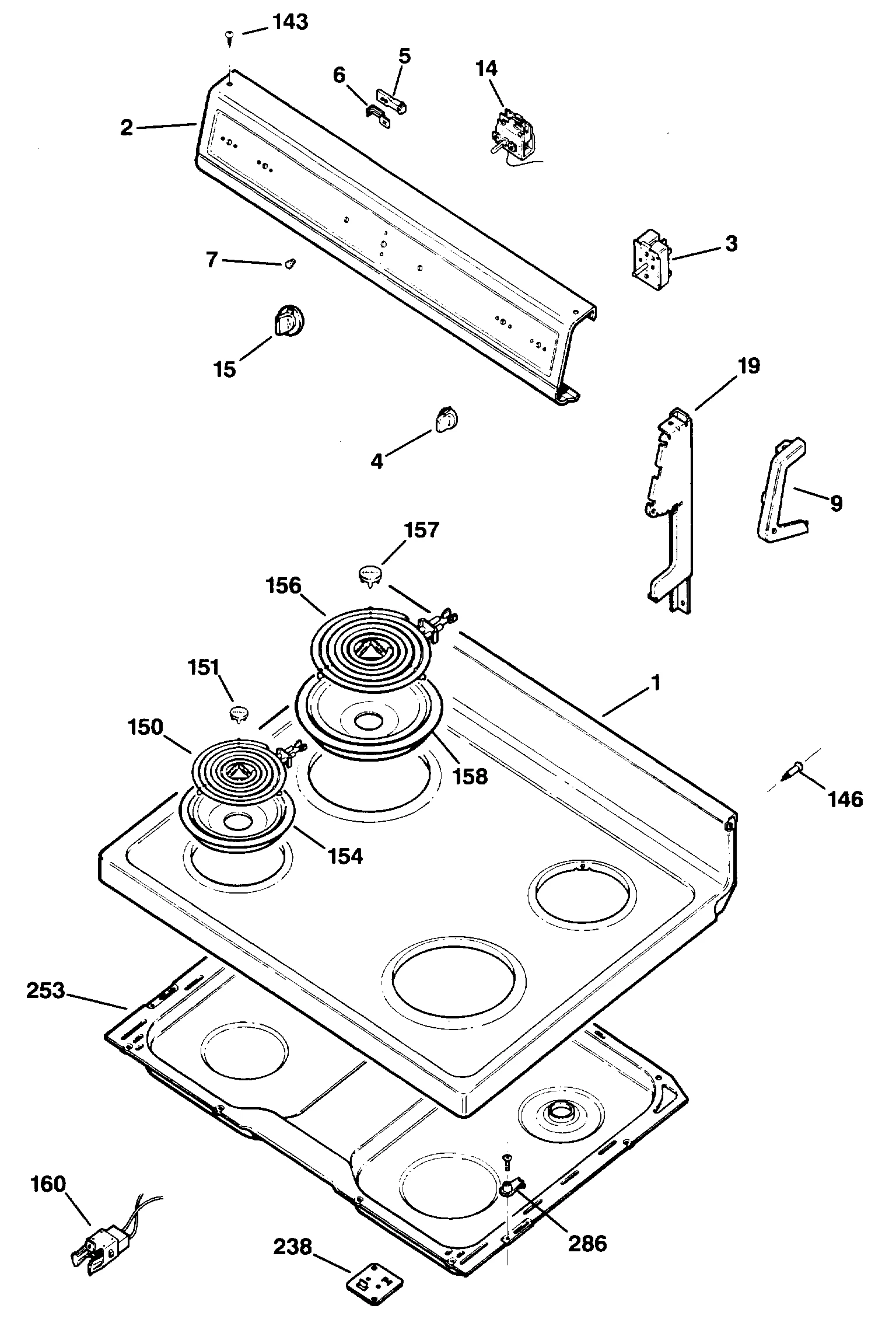

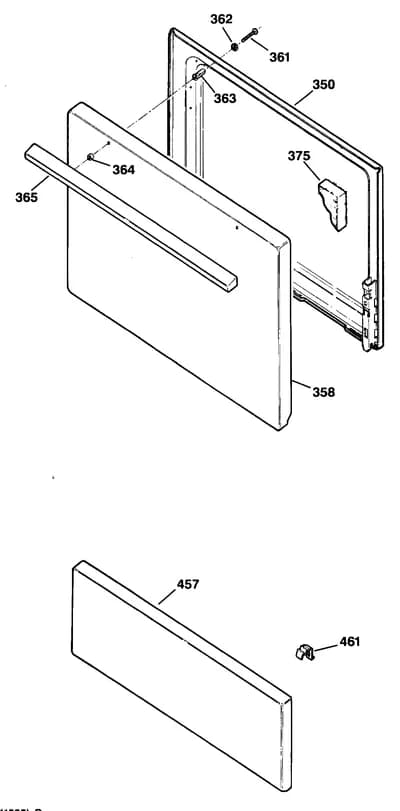

Parts Sections (3)
Diagram
Parts List
Parts in Parts List
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | RANGE TOP ASM - AD | - |
| 1 | | WB62X5407NLA COOKTOP WH | Discontinued |
| 2 | – | WB07X7138 TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 | | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB21X5304NLA THERMOSTAT | Discontinued |
| 15 | | WB03X5793NLA KNOB THERMOSTAT | Discontinued |
| 19 | | WB07X10127replaces WB07X7161 PLATE END | - |
| 19 | | WB07X10129replaces WB07X7162 PLATE END | - |
| 19 | – | WB07X7163 PLATE END | - |
| 19 | | WB07X10130replaces WB07X7164 PLATE END | - |
| 108 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 143 | | WB01X5860NLA SCREW | Discontinued |
| 146 | – | WB01X5832 SCREW SHOULDER | - |
| 150 |  | WB30M1replaces WB30X5109 UNIT ASM 6 INCH PLUG IN | $32.76 Part Advantage |
| 152 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 156 | | WB30M1replaces WB30M0001 6" SURF ELEM | $32.76 Part Advantage |
| 158 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 160 |  | RECEPTACLE ASM | $20.05 Part Advantage |
| 165 |  | WB31M20replaces WB32X5070 BURNER BOWL 6" BLACK | $3.97 Part Advantage |
| 223 | | WB02X6195NLA PIN HINGE DOOR | Discontinued |
| 224 | | WB2X1082replaces WB02X1082 RING RETAINING | - |
| 253 | | WB49X5566replaces WB49X5499 BOX COOKTOP | - |
| 254 | – | WB01X0549 SCR 10-12 A IHW 3/8 S | - |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 312 |  | WB02X32440replaces WB01X0119 CONTOURED WASHER | $9.20 ApplianceParts Pro |
| 336 | | WZ4X423Dreplaces WZ04X0423 SCREW-MTG HDL DOOR | - |
| 440 | | WB1X585replaces WB01X0585 SPEEDNUT | - |
| 752 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 769 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 904 | – | WB01X5550 SCR 8/32 TF FLR 1/4 S | - |
| 961 | | WB02X1185NLA CLIP | Discontinued |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 39-4700 MANUAL USER | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
