Model
Hotpoint RB524S1
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB524S1Electric Range
3 diagrams82 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
42 parts

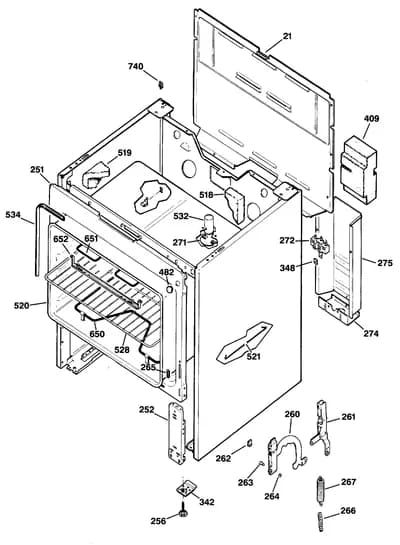

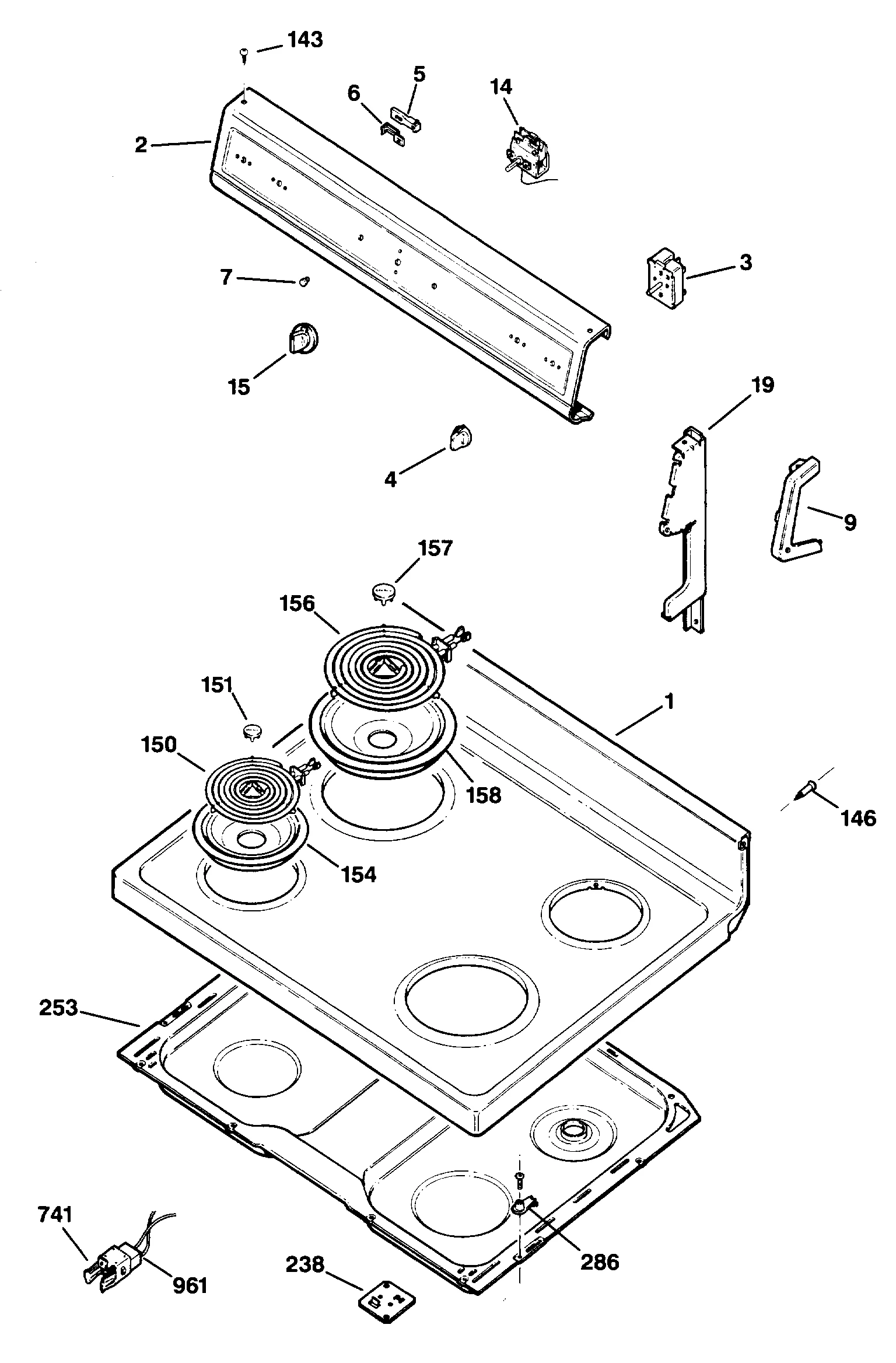

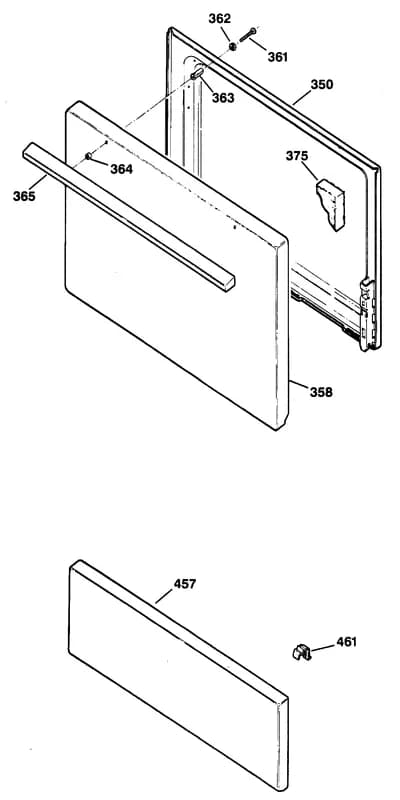

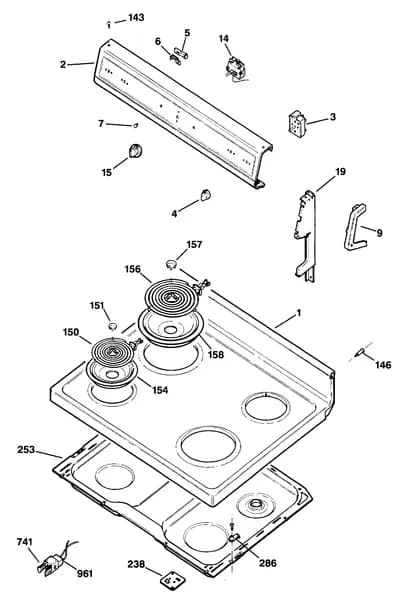

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X5408 COOKTOP WH | - |
| 2 | – | WB07X7138 TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB21X5304NLA THERMOSTAT | Discontinued |
| 15 | | WB03X5793NLA KNOB THERMOSTAT | Discontinued |
| 19 | | WB07X7165NLA PLATE END R | Discontinued |
| 19 | | WB07X7166NLA PLATE END | Discontinued |
| 57 |  | WB30M2replaces WB30K5027 8" SURFACE ELEMENT | $44.65 Part Advantage |
| 108 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 143 | | WB01X5860NLA SCREW | Discontinued |
| 146 | – | WB01X5832 SCREW SHOULDER | - |
| 150 |  | WB30M1replaces WB30X5109 UNIT ASM 6 INCH PLUG IN | $32.76 Part Advantage |
| 151 | | WB32X0052NLA CENTER TRIM 6" UNIT | Discontinued |
| 152 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 154 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 157 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 158 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 223 | | WB02X6195NLA PIN HINGE DOOR | Discontinued |
| 224 | | WB2X1082replaces WB02X1082 RING RETAINING | - |
| 253 | | WB49X5566replaces WB49X5499 BOX COOKTOP | - |
| 272 |  | WB17X5095replaces WB17X5123 BLOCK TERMINAL | $69.99 Parts Dr |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 312 |  | WB02X32440replaces WB01X0119 CONTOURED WASHER | $9.20 ApplianceParts Pro |
| 440 | | WB1X585replaces WB01X0585 SPEEDNUT | - |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 741 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 752 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 769 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 904 | – | WB01X5550 SCR 8/32 TF FLR 1/4 S | - |
| 961 | | WB02X1185NLA CLIP | Discontinued |
| 9999 |  | WB27X7replaces WB02X8242 SPACER | $7.92 Parts Dr |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 31-1424 PM MANUAL | - |
| 32767 | – | 39-4719 PM MANUAL | - |
| 32767 | – | WB01X0448 WASHER | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
