Model
Hotpoint RB525*R3
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB525*R3Electric Range
3 diagrams88 parts
Parts Sections (3)

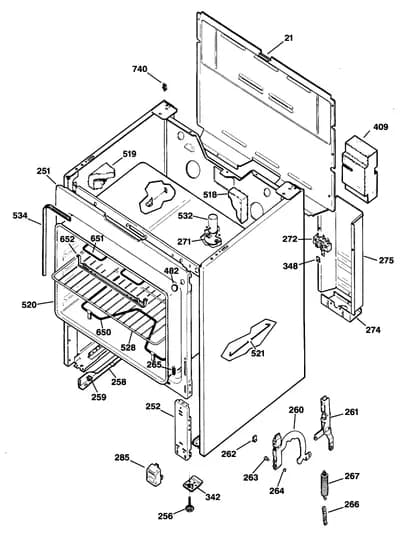

Diagram
Parts List
Parts in Parts List
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

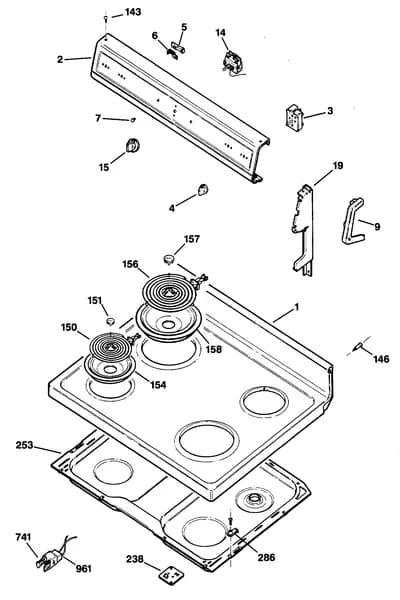

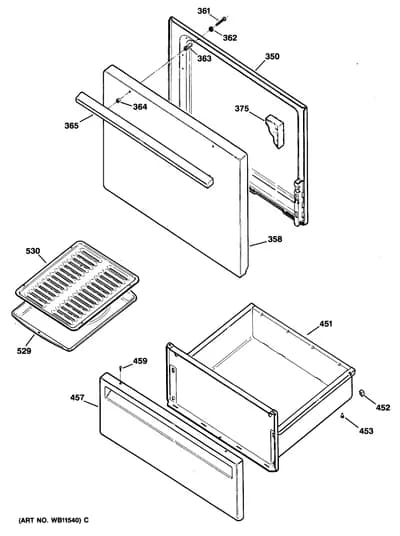

| 1 | – | WB62X5408 COOKTOP WH | - |
| 2 | – | WB07X7138 TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB21X5304NLA THERMOSTAT | Discontinued |
| 15 | | WB03X5793NLA KNOB THERMOSTAT | Discontinued |
| 19 | | WB07X7165NLA PLATE END R | Discontinued |
| 19 | | WB07X7166NLA PLATE END | Discontinued |
| 45 |  | WB30M1replaces WB30X5119 6" SURFACE ELEMENT | $32.76 Part Advantage |
| 46 |  | WB30M2replaces WB30X5120 8" SURFACE ELEMENT | $44.65 Part Advantage |
| 46 | – | WB32X5088 TRIM CENTER | - |
| 47 | | WB30M1replaces WB30X5121 UNIT ASM 6" P I | $32.76 Part Advantage |
| 57 | | WB30M2replaces WB30K5027 8" SURFACE ELEMENT | $44.65 Part Advantage |
| 108 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 143 | | WB01X5860NLA SCREW | Discontinued |
| 146 | – | WB01X5832 SCREW SHOULDER | - |
| 152 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 154 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 157 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 158 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 253 | | WB49X5566replaces WB49X5499 BOX COOKTOP | - |
| 256 | | WB02X8248NLA GLIDER ADJ | Discontinued |
| 274 | | WB02X8247NLA KNOCKOUT PLATE | Discontinued |
| 275 | | WB02X8249NLA GUARD TERMINAL | Discontinued |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 457 | | WB56X7069NLA PANEL DRAWER WH | Discontinued |
| 521 | – | WB09X0088 LOCKWASHER | - |
| 529 |  | WB48X10056replaces WB49X5547 PAN BROILER | $16.74 Part Advantage |
| 530 | | WB48X10056replaces WB48X5093 BROILER PAN RACK | $16.74 Part Advantage |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 741 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 769 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 904 | – | WB01X5550 SCR 8/32 TF FLR 1/4 S | - |
| 961 | | WB02X1185NLA CLIP | Discontinued |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 31-1065 PM MANUAL MINI | - |
| 32767 | – | 39-4700 MANUAL USER | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
