Model
Hotpoint RB525BH3CT
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB525BH3CTElectric Range
3 diagrams112 parts
Parts Sections (3)
Diagram

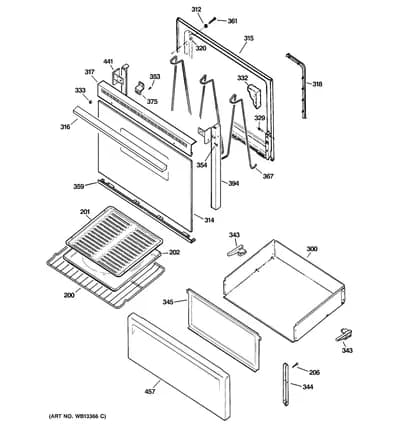

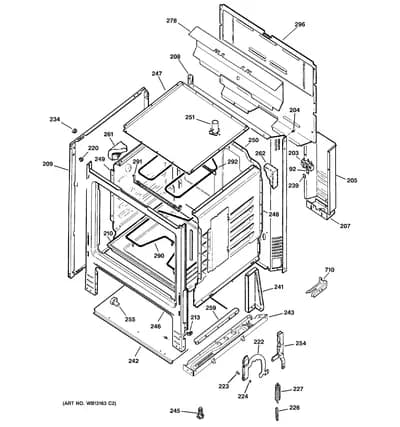

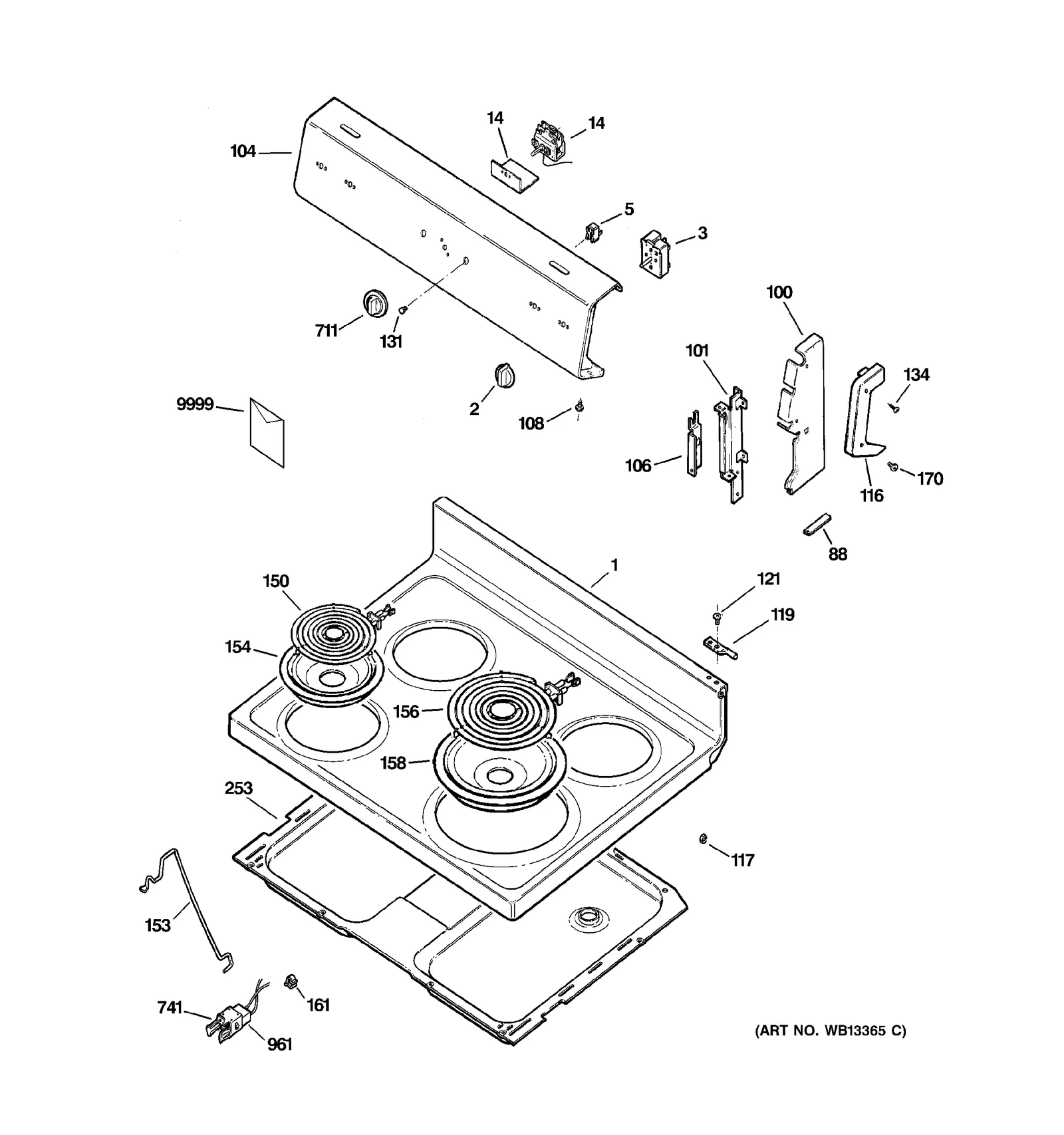

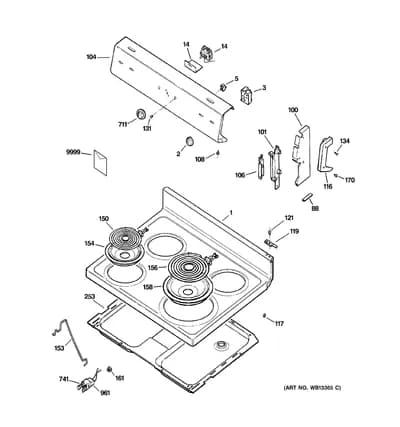

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | COOKTOP BISQUE | $69.91 PartSelect |
| 2 |  | (GE ) KNOB | $57.38 Parts Dr |
| 3 |  | INF SWITCH CONTROL 1250W | $88.15 Part Advantage |
| 3 |  | INF SW CTN (2100W) | $83.71 Part Advantage |
| 5 |  | LAMP PILOT | $10.20 Part Advantage |
| 14 |  | CARTON COVER THERMOSTAT | $20.27 ApplianceParts Pro |
| 14 |  | WB20K10026replaces WB20K10011 THERMOSTAT TOP HEAT SP | $51.67 Part Advantage |
| 88 |  | WB02K0062NLA PAD FELT (2") | Discontinued |
| 100 | | COVER END RT (BLACK) | - |
| 100 | | COVER END LT (BLACK) | - |
| 101 | | WB37K17replaces WB37K0017 PLATE END RIGHT | - |
| 101 | | WB37K18replaces WB37K0018 PLATE END LEFT | - |
| 104 | | TRIM & BRACKET ASM WELD | - |
| 106 | | SUPPORT HINGE CKTP RT | - |
| 106 | | SUPPORT HINGE CKTP LT | $7.50 ApplianceParts Pro |
| 108 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 116 |  | END CAP RT (BLACK) | - |
| 116 | | WB07K10004NLA END CAP LT (BLACK) | Discontinued |
| 117 | | WB2K17replaces WB02K0017 PIN LOCATOR FRONT | - |
| 119 |  | PIN HINGE | Discontinued |
| 121 |  | WB1K5119replaces WB01K0001 SCREW | $7.18 Parts Dr |
| 131 |  | WB25T10041replaces WB25K0002 LENS | $5.09 Part Advantage |
| 134 | | SCREW-MTG END CAP (BLACK | - |
| 150 |  | SURFACE UNIT ASM 6" | $61.31 Part Advantage |
| 153 |  | ROD SUPPORT | $5.84 Part Advantage |
| 154 |  | 6 INCH CHROME BURNER BOWL - ELEC | $7.42 Part Advantage |
| 156 |  | SURFACE UNIT ASM 8" | $38.74 Part Advantage |
| 158 |  | 8 INCH CHROME BURNER BOWL - ELEC | $9.50 Part Advantage |
| 161 | | WB02X8115NLA CLIP WIRE | Discontinued |
| 170 | | WB01X5716NLA SCREW (BLK) | Discontinued |
| 253 | | WB64K10002NLA BOX-COOKTOP | Discontinued |
| 711 |  | ASM KNOB GE THERMOSTAT | $11.03 Part Advantage |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 961 |  | WB17T10006replaces WB17T10001 TERMINAL BLOCK | $15.34 Part Advantage |
| 9999 | – | 31-21072 PM MINIMANUAL/ELEC DIAG | - |
| 9999 | – | 49-88013 PM USE AND CARE MANUAL | - |
