Model
Hotpoint RB525DH2BB
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB525DH2BBElectric Range
3 diagrams91 parts
Parts Sections (3)

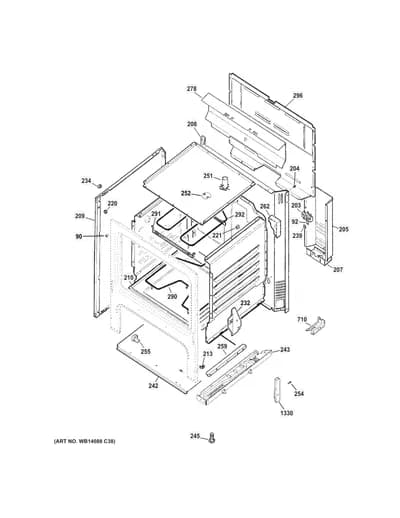

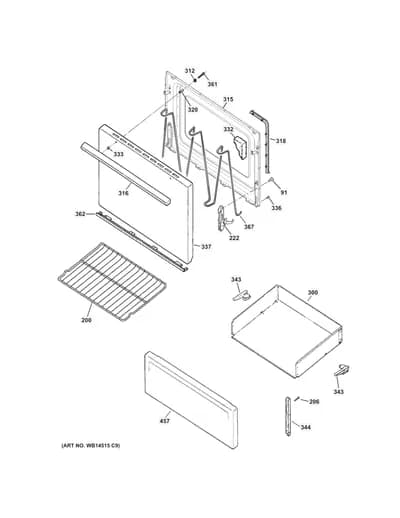

Diagram

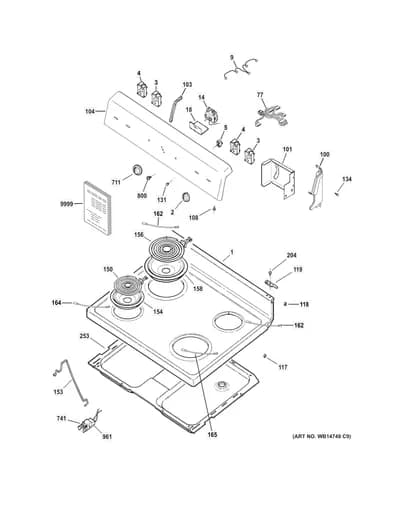

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | CT THERMO BL | $68.86 PartSelect |
| 2 |  | KNOB | $8.87 Part Advantage |
| 3 |  | INF SWITCH CONTROL 1250W | $88.15 Part Advantage |
| 4 |  | INF SW CTN (2100W) | $83.71 Part Advantage |
| 5 |  | LAMP PILOT | $10.20 Part Advantage |
| 9 |  | HARNESS LAMP PILOT | - |
| 14 |  | THERMOSTAT ELECTRIC | $51.67 Part Advantage |
| 18 |  | CARTON COVER THERMOSTAT | $20.27 ApplianceParts Pro |
| 77 |  | HARNESS MAIN | - |
| 100 |  | END SUPPORT GLOSS BLACK LF | $13.27 RepairClinic |
| 100 |  | END SUPPORT GLOSS BLACK RT | $9.37 RepairClinic |
| 101 |  | BRACKET COOK TOP LEFT | - |
| 101 |  | BRACKET COOK TOP RIGHT | - |
| 103 | | BRACKET CONTROL | - |
| 104 | | TRIM CONTROL | - |
| 108 | | WB01X5716NLA SCREW (BLK) | Discontinued |
| 117 | | WB2K17replaces WB02K0017 PIN LOCATOR FRONT | - |
| 118 |  | PIN LOCATOR REAR | $15.00 PartSelect |
| 119 |  | PIN HINGE | Discontinued |
| 131 |  | WB25T10041replaces WB25K0002 LENS | $5.09 Part Advantage |
| 134 |  | SCREW | $9.00 RepairClinic |
| 150 |  | WB30K10002replaces WB30K10023 SURFACE UNIT ASM 6" | $61.31 Part Advantage |
| 153 |  | ROD SUPPORT | $5.84 Part Advantage |
| 154 |  | 6 INCH BLACK PORCELAIN BURNER BOWL-ELEC | $8.46 Parts Dr |
| 156 |  | SURFACE UNIT ASM 8" | $55.13 Part Advantage |
| 158 |  | 8 INCH BLACK PORCELAIN BURNER BOWL-ELEC | $7.71 Part Advantage |
| 162 |  | WB18X48307replaces WB18X27485 HARNESS SURFACE UNIT RR | $9.32 ApplianceParts Pro |
| 164 | | WB18X48307replaces WB18X27487 HARNESS SURFACE UNIT LF | $9.32 ApplianceParts Pro |
| 165 | | WB18X48306replaces WB18X27488 HARNESS SURFACE UNIT RF | $5.78 Part Advantage |
| 204 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 253 |  | BOX COOKTOP | $87.54 ApplianceParts Pro |
| 711 |  | KNOB THERMOSTAT ASM. | $12.90 Parts Dr |
| 741 |  | CLIP RECEPTICAL | $4.76 Part Advantage |
| 800 |  | WB01X23501replaces WB01T10020 SCREW 8-32 TPT FLR 215 SN | $9.71 Parts Dr |
| 961 |  | WB17T10006replaces WB17K10003 BLOCK INSULATOR | $15.34 Part Advantage |
| 9999 | – | 31-17111 PM MINI MANUAL | - |
| 9999 | – | 49-88057 PM OWNERS MANUAL | - |
| 9999 |  | HINGE SERVICE KIT | - |
