Model
Hotpoint RB525G*F1
Electric Range
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB525G*F1Electric Range
1 diagram120 parts

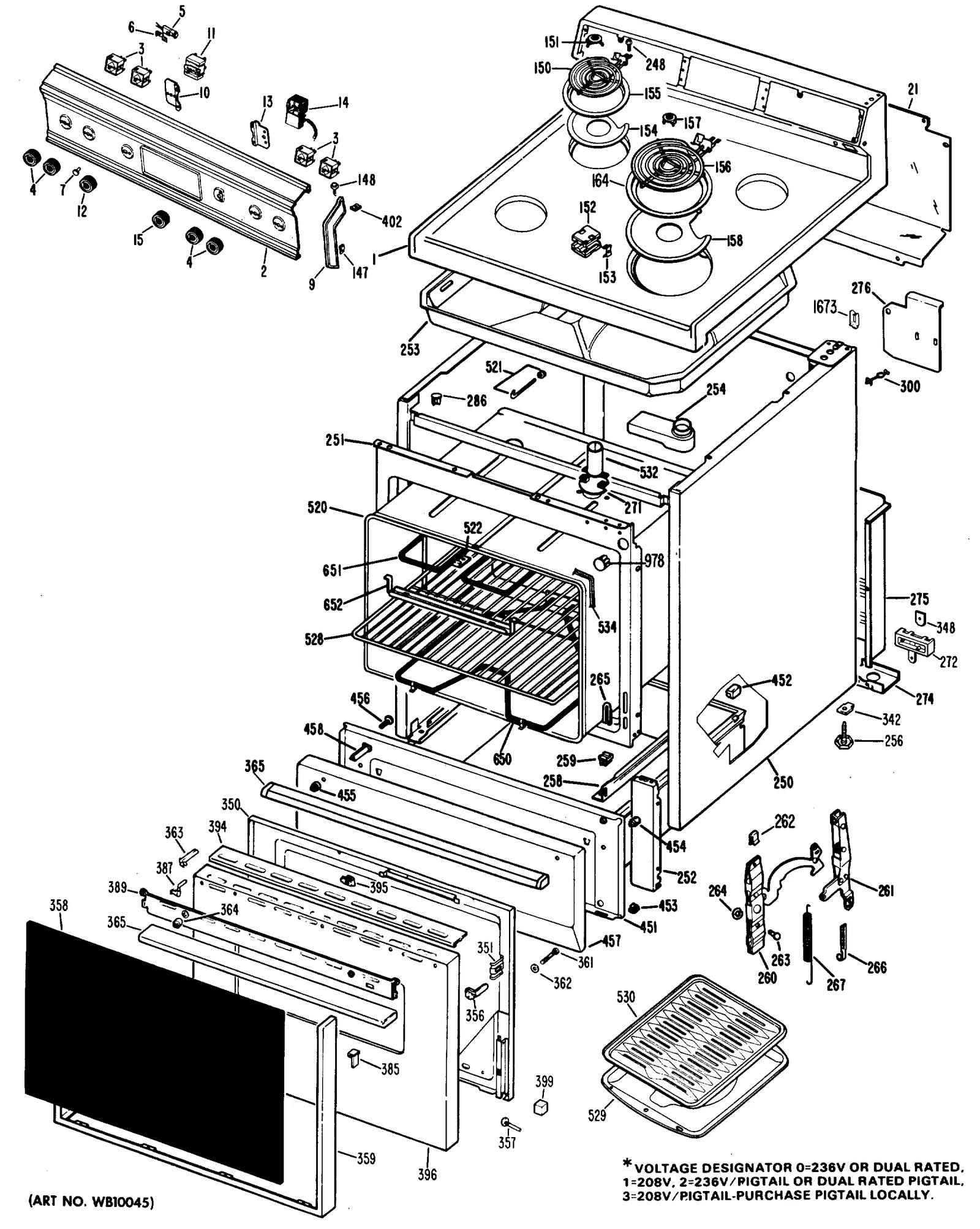

Parts Sections (1)
Diagram
Parts List
Parts in Parts List
123 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X1474 COOKTOP WH | - |
| 1 | – | WB62X1477 COOKTOP HA | - |
| 1 | – | WB62X1478 COOKTOP AD | - |
| 1 | – | WB62X5302 COOKTOP DS | - |
| 1 | – | WB62X5303 COOKTOP SL | - |
| 2 | – | WB07X7018 TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB03X5636NLA KNOB SURFACE UNIT | Discontinued |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 6 | | WB02X1185NLA CLIP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | – | WB07X6824 END CAP RH BLK | - |
| 9 | – | WB07X6825 END CAP LH BLK | - |
| 10 | – | WB02X3261 BRACKET LH | - |
| 11 | – | WB22X5022 SWITCH, OVEN | - |
| 12 | | WB3X5637replaces WB03X5637 KNOB OVEN SWITCH | - |
| 13 | – | WB02X3262 BRACKET RH | - |
| 14 | | WB02X1394NLA SLEEVE | Discontinued |
| 14 | | THERMOSTAT, OVEN L.O. | - |
| 15 | | WB3X5638replaces WB03X5638 KNOB THERMOSTAT | - |
| 21 | – | WB49X0390 COVER BACK | - |
| 147 | – | WB01X0578 SPEEDNUT CAP | - |
| 148 | | WB01X5716NLA SCREW (BLK) | Discontinued |
| 150 |  | WB30X342replaces WB30X0342 SURFACE UNIT, 6" | $38.67 Part Advantage |
| 151 | | WB32X0052NLA CENTER TRIM 6" UNIT | Discontinued |
| 152 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 152 | | WB2X2398replaces WB02X2398 TERM BLOCK SINGLE COIL | - |
| 153 | | WB02X0574NLA CLIP INSULATOR | Discontinued |
| 154 |  | WB32X10012replaces WB32X0036 UNIT PAN 6" | $2.88 Part Advantage |
| 155 |  | TRIM RING 6" | $3.45 Part Advantage |
| 156 |  | WB30X348replaces WB30X0348 SURFACE UNIT, 8" | $45.43 Part Advantage |
| 157 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 158 |  | WB32X10013replaces WB32X5013 UNIT PAN 8" | $4.03 Part Advantage |
| 164 |  | TRIM RING 8" | $14.08 Parts Dr |
| 251 | – | WB56X1349 FRAME FRONT | - |
| 252 | – | WB49X0322 FILLER PANEL | - |
| 253 | – | WB49X0341 COOKTOP BOX | - |
| 254 | – | WB38X0050 VENT BODY | - |
| 256 |  | WR2X4978replaces WR02X4978 LEVELING LEG | - |
| 258 | | WB39X0051NLA DRAWER GUIDE RH & LH | Discontinued |
| 259 | | WB02X0831NLA SLIDE GUIDE | Discontinued |
| 260 | – | WB10X5148 HINGE LEVER | - |
| 261 | | WB10X0148NLA HINGE SPT RH | Discontinued |
| 261 | | WB10X149replaces WB10X0149 HINGE SPT LH | - |
| 263 | | WB02X6195NLA PIN HINGE DOOR | Discontinued |
| 264 | | WB2X1082replaces WB02X1082 RING RETAINING | - |
| 265 | – | WB02X6342 GUIDE HINGE LEVER | - |
| 266 | | WB02X2506NLA HOOK DOOR SPRING | Discontinued |
| 267 | | WB09X0144NLA SPRING DOOR | Discontinued |
| 271 | – | WB02X1626 BAFFLE | - |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 274 | | WB2X1908replaces WB02X1908 KNOCKOUT PLATE | - |
| 275 | – | WB59X0173 GUARD TERMINAL | - |
| 276 | – | WB49X0392 COVER BACK | - |
| 300 | – | WB02X7052 TIE WIRE | - |
| 342 | – | WB02X7524 RETAINER LEG | - |
| 348 | | WB2X646replaces WB02X0646 PLATE-GROUND | - |
| 350 | – | WB55X5275 DOOR LINER | - |
| 351 | – | WB02X6270 SPACER PANEL | - |
| 356 | – | WB02X6574 CLIP TRIM (4) | - |
| 358 | – | WB02X3140 INSULATION | - |
| 358 | | WB36X5557replaces WB36X0554 GLASS BLACK | $252.87 RepairClinic |
| 359 | | WB7X6886replaces WB07X5637 TRIM DOOR | - |
| 362 |  | WB02X32440replaces WB01X0119 CONTOURED WASHER | $9.20 ApplianceParts Pro |
| 363 | | WB02X6204NLA SPACER PANEL | Discontinued |
| 364 | – | WB02X3258 GROMMET HANDLE | - |
| 365 |  | WB15X10225replaces WB15X0147 HANDLE | $90.95 ApplianceParts Pro |
| 365 | | WB15X0148NLA HANDLE | Discontinued |
| 385 | | WB7X5631replaces WB07X5631 CAP TRIM | - |
| 387 | – | WB02X6575 CLIP TRIM | - |
| 389 | – | WB07X5629 TRIM DOOR | - |
| 394 | – | WB07X5636 TRIM TOP | - |
| 395 | – | WB02X3053 CLIP MTG DOOR TRIMS | - |
| 396 | – | WB56X1466 PANEL DOOR | - |
| 399 | – | WB02X3285 PAD | - |
| 402 | – | WB01X0591 SPEEDNUT | - |
| 409 | – | WB02X3470 COUNTERWEIGHT | - |
| 440 | | WB1X585replaces WB01X0585 SPEEDNUT | - |
| 451 | | WB58X0050NLA DRAWER ASM | Discontinued |
| 452 | | WB02X0840NLA SLIDE TOP | Discontinued |
| 453 | | WB02X0841NLA SLIDE BOTTOM | Discontinued |
| 453 | | WB02X3394NLA PLUG BUTTON | Discontinued |
| 454 | | WB02X0584NLA BUMPER | Discontinued |
| 455 | – | WBO1X0560 SPACER | - |
| 456 | – | WZ04X0395 HANDLE SCREW | - |
| 457 | – | WB56X1396 DRAWER PANEL WH | - |
| 457 | – | WB56X1399 DRAWER PANEL HA | - |
| 457 | – | WB56X1400 DRAWER PANEL AD | - |
| 457 | – | WB56X5977 DRAWER PANEL DS | - |
| 457 | – | WB56X5978 DRAWER PANEL SL | - |
| 458 | – | WB02X3387 SPACER PANEL | - |
| 461 |  | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 520 | – | WB02X3141 INSULATION | - |
| 520 | – | WB53X0227 OVEN LINER | - |
| 521 | – | WB09X0088 LOCKWASHER | - |
| 522 | – | WB02X3393 TRIM CLIP | - |
| 528 | | WB48X5044NLA OVEN RACKS | Discontinued |
| 529 |  | WB48X10056replaces WB49X0088 BROIL PAN | $16.74 Part Advantage |
| 530 | | WB48X10056replaces WB48X5002 BROILER PAN RACK | $16.74 Part Advantage |
| 532 | – | WB38X0072 TUBE VENT | - |
| 534 |  | WB2X1522replaces WB02X1522 GASKET SILICONE | $87.97 Parts Dr |
| 650 |  | BAKE UNIT 208/240V | $31.77 Part Advantage |
| 651 |  | WB44X173replaces WB44X0185 BROIL UNIT 208/240V L.O. | $22.62 Part Advantage |
| 652 | | WB02X1452NLA SUPPORT BROIL | Discontinued |
| 740 | – | WB02X7226 CLIP WIRE | - |
| 978 | | WB2X1126replaces WB02X1126 PLUG BUTTON | $2.95 ApplianceParts Pro |
| 1218 | – | WZ04X0412 SCREW MTG GRILLE | - |
| 32767 | – | 03-9156 INSTALL INSTRUCTIONS | - |
| 32767 | – | 31-0415 INSTALL INSTRUCTIONS | - |
| 32767 | – | 39-4524 MANUAL USERS | - |
| 32767 | – | WB01X0448 WASHER | - |
| 32767 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 32767 | | WB1X536replaces WB01X0536 SCREW | $16.81 Parts Dr |
| 32767 | | WB1X536replaces WB01X0536 SCREW | $16.81 Parts Dr |
| 32767 | – | WB01X0549 SCR 10-12 A IHW 3/8 S | - |
| 32767 | – | WB01X5550 SCR 8/32 TF FLR 1/4 S | - |
| 32767 | | WB2X1222replaces WB02X1222 PAD GLASS (FELT) | - |
| 32767 | – | WB02X3141 INSULATION | - |
| 32767 | – | WB09X0088 LOCKWASHER | - |
| 32767 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 32767 | – | WZ04X0413 SCREW | - |
| 32767 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 32767 | – | WZ07X0035 NUT HEX | - |
