Hotpoint RB525G*J3
Electric Range
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB525G*J3Electric Range
1 diagram109 parts
Parts Sections (1)

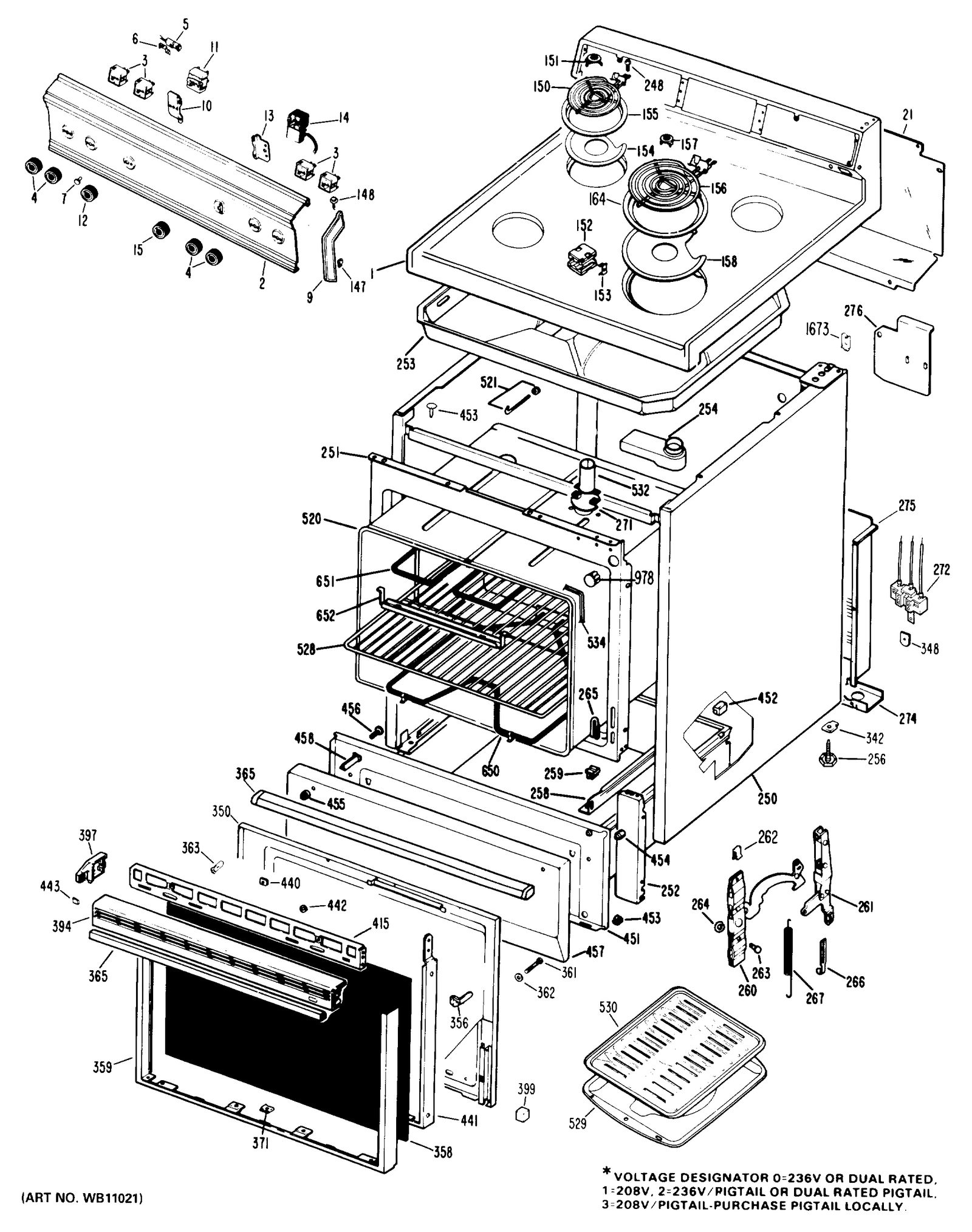

Diagram
Parts List
Parts in Parts List
109 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X1474 COOKTOP WH | - |
| 1 | – | WB62X1477 COOKTOP HA | - |
| 1 | – | WB62X1478 COOKTOP AD | - |
| 2 | – | WB07X7018 TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB03X5636NLA KNOB SURFACE UNIT | Discontinued |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 6 | | WB02X1185NLA CLIP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | – | WB07X6824 END CAP RH BLK | - |
| 9 | – | WB07X6825 END CAP LH BLK | - |
| 10 | – | WB02X3261 BRACKET LH | - |
| 11 | – | WB22X5022 SWITCH, OVEN | - |
| 12 | | WB3X5637replaces WB03X5637 KNOB OVEN SWITCH | - |
| 13 | – | WB02X3262 BRACKET RH | - |
| 14 | | WB02X1394NLA SLEEVE | Discontinued |
| 14 | | THERMOSTAT, OVEN L.O. | - |
| 15 | | WB3X5638replaces WB03X5638 KNOB THERMOSTAT | - |
| 21 | – | WB49X0390 COVER BACK | - |
| 147 | – | WB01X0578 SPEEDNUT CAP | - |
| 148 | | WB01X5716NLA SCREW (BLK) | Discontinued |
| 150 |  | WB30X359replaces WB30X0359 SURFACE UNIT, 6" | $32.93 Part Advantage |
| 151 | | WB32X0052NLA CENTER TRIM 6" UNIT | Discontinued |
| 152 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 152 | | WB2X2398replaces WB02X2398 TERM BLOCK SINGLE COIL | - |
| 153 | | WB02X0574NLA CLIP INSULATOR | Discontinued |
| 154 |  | WB32X10012replaces WB32X0036 UNIT PAN 6" | $2.88 Part Advantage |
| 155 |  | TRIM RING 6" | $3.45 Part Advantage |
| 156 |  | WB30X348replaces WB30X0348 SURFACE UNIT, 8" | $45.43 Part Advantage |
| 157 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 158 |  | WB32X10013replaces WB32X5013 UNIT PAN 8" | $4.03 Part Advantage |
| 164 |  | TRIM RING 8" | $14.08 Parts Dr |
| 248 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 250 | – | NOT AVAIL CAVITY | - |
| 251 | – | WB56X6050 FRAME FRONT | - |
| 252 | – | WB49X5399 FILLER PANEL WH | - |
| 252 | – | WB49X5400 FILLER PANEL HA | - |
| 252 | – | WB49X5401 FILLER PANEL AD | - |
| 253 | – | WB49X5384 BOX COOKTOP | - |
| 254 | – | WB38X0050 VENT BODY | - |
| 256 | | WB02X7701NLA GLIDER | Discontinued |
| 258 | | WB39X0051NLA DRAWER GUIDE RH & LH | Discontinued |
| 259 | | WB02X0831NLA SLIDE GUIDE | Discontinued |
| 260 | – | WB10X5148 HINGE LEVER | - |
| 261 | | WB10X0148NLA HINGE SPT RH | Discontinued |
| 261 | | WB10X149replaces WB10X0149 HINGE SPT LH | - |
| 263 | | WB02X6195NLA PIN HINGE DOOR | Discontinued |
| 264 | | WB2X1082replaces WB02X1082 RING RETAINING | - |
| 265 | – | WB02X6342 GUIDE HINGE LEVER | - |
| 266 | | WB02X2506NLA HOOK DOOR SPRING | Discontinued |
| 267 | | WB09X0144NLA SPRING DOOR | Discontinued |
| 271 | – | WB02X1626 BAFFLE | - |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 274 | | WB2X1908replaces WB02X1908 KNOCKOUT PLATE | - |
| 275 | – | WB59X0173 GUARD TERMINAL | - |
| 276 | – | WB49X0392 COVER BACK | - |
| 342 | – | WB02X7700 RETAINER LEG | - |
| 348 | | WB2X646replaces WB02X0646 PLATE-GROUND | - |
| 350 | – | WB02X3140 INSULATION | - |
| 350 | | DOOR LINER | - |
| 356 | – | WB02X6574 CLIP TRIM (4) | - |
| 358 | | GLASS BLACK | $252.87 RepairClinic |
| 359 | | WB7X6886replaces WB07X6886 TRIM DOOR | - |
| 361 |  | WB1X5731Dreplaces WB01X5731 SCREW | $25.74 ApplianceParts Pro |
| 362 |  | WB02X32440replaces WB01X0119 CONTOURED WASHER | $9.20 ApplianceParts Pro |
| 363 | | WB2X3030replaces WB02X3030 SPACER DOOR | $12.58 RepairClinic |
| 365 | – | WB15X5154 HANDLE DOOR | - |
| 365 | | WB15X5160NLA HANDLE | Discontinued |
| 371 | – | WB01X5732 SPEEDNUT | - |
| 394 | – | WB07X6893 TRIM TOP | - |
| 397 | | WB7X6887replaces WB07X6887 END CAP ASM RH | $97.24 PartSelect |
| 397 | – | WB07X6888 END CAP ASM LH | - |
| 397 | – | WZ04X0384 SCREW MTG END CAP | - |
| 399 | – | WB02X3285 PAD | - |
| 409 | – | WB02X3470 COUNTERWEIGHT | - |
| 415 | | WB02X7608NLA BRACE TOP | Discontinued |
| 440 |  | WB01K10093replaces WB01X5736 SPEEDNUT | $7.94 RepairClinic |
| 441 | | WB2X7609replaces WB02X7609 BRACE SIDE LH | - |
| 441 | | WB2X7610replaces WB02X7610 BRACE SIDE RH | - |
| 442 | | WB01X5743NLA SPEEDNUT | Discontinued |
| 443 | – | WB01X5734 CLIP END CAP | - |
| 452 | | WB02X0840NLA SLIDE TOP | Discontinued |
| 453 | | WB02X7654NLA SLIDE BOTTOM | Discontinued |
| 454 | | WB02X0584NLA BUMPER | Discontinued |
| 455 | – | WBO1X0560 SPACER | - |
| 456 | – | WZ04X0395 HANDLE SCREW | - |
| 457 | – | WB56X1396 DRAWER PANEL WH | - |
| 457 | – | WB56X1399 DRAWER PANEL HA | - |
| 457 | – | WB56X1400 DRAWER PANEL AD | - |
| 458 | – | WB02X3387 SPACER PANEL | - |
| 461 |  | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 520 | – | WB02X3141 INSULATION | - |
| 520 | | WB02X3471NLA CLIP CAPILLARY TUBEOVEN | Discontinued |
| 520 | – | WB53X5097 OVEN LINER | - |
| 521 | – | WB09X0088 LOCKWASHER | - |
| 528 | | WB48X5044NLA OVEN RACKS | Discontinued |
| 529 |  | WB48X10056replaces WB49X5380 BROIL PAN | $16.74 Part Advantage |
| 530 | | WB48X10056replaces WB48X5002 BROILER PAN RACK | $16.74 Part Advantage |
| 532 | – | WB38X0072 TUBE VENT | - |
| 534 |  | WB2X1522replaces WB02X1522 GASKET SILICONE | $87.97 Parts Dr |
| 650 |  | BAKE UNIT 208/240V | $31.77 Part Advantage |
| 651 |  | WB44X173replaces WB44X0185 BROIL UNIT 208/240V L.O. | $22.62 Part Advantage |
| 652 | | WB02X1452NLA SUPPORT BROIL | Discontinued |
| 740 | – | WB02X7226 CLIP WIRE | - |
| 790 | – | WB01X0365 SPEEDNUT | - |
| 978 | | WB2X1126replaces WB02X1126 PLUG BUTTON | $2.95 ApplianceParts Pro |
| 32767 | – | 31-0674 INSTALL INSTRUCTIONS | - |
| 32767 | – | 31-0675 INSTALL INSTRUCTIONS | - |
| 32767 | – | 39-4600 MANUAL USERS | - |
