Model
Hotpoint RB525GS2
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB525GS2Electric Range
3 diagrams81 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
28 parts

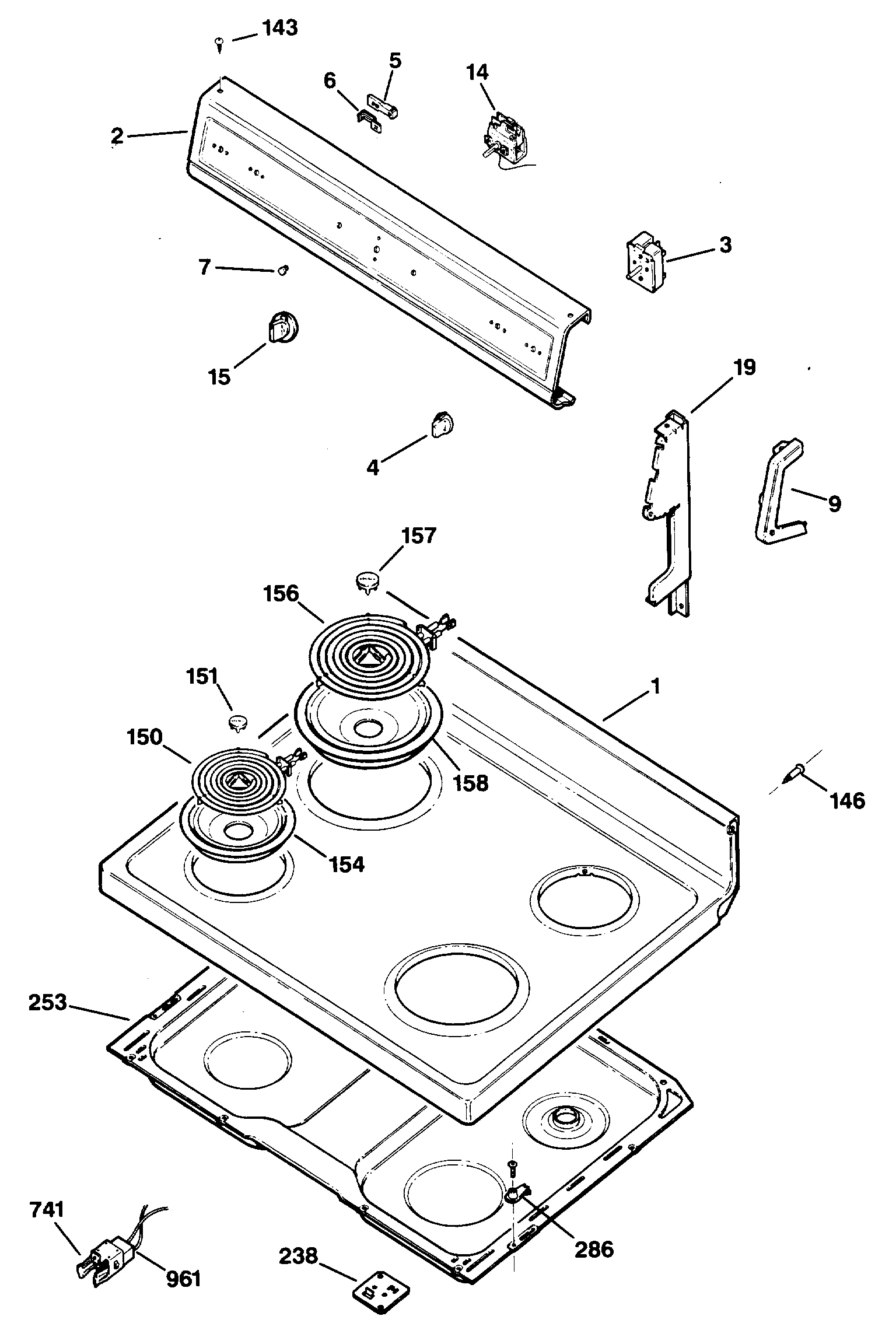

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | WB07X7138 TRIM CONTROL | - |
| 4 |  | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB21X5304NLA THERMOSTAT | Discontinued |
| 15 | | WB03X5793NLA KNOB THERMOSTAT | Discontinued |
| 19 | | WB07X7165NLA PLATE END R | Discontinued |
| 19 | | WB07X7166NLA PLATE END | Discontinued |
| 47 |  | WB30M1replaces WB30X5121 UNIT ASM 6" P I | $32.76 Part Advantage |
| 48 |  | WB30M2replaces WB30X5122 UNKNOWN | $44.65 Part Advantage |
| 146 | – | WB01X5832 SCREW SHOULDER | - |
| 151 | | WB32X5089NLA TRIM CENTER | Discontinued |
| 152 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 154 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 158 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 253 | | WB49X5566replaces WB49X5499 BOX COOKTOP | - |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 364 | | WB2X8245replaces WB02X8245 SPACER HANDLE | $40.77 RepairClinic |
| 409 | – | WB02X3470 COUNTERWEIGHT | - |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 961 | | WB02X1185NLA CLIP | Discontinued |
| 9999 | – | WB07X7186 TRIM VENT | - |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 31-1424 PM MANUAL | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
