Model
Hotpoint RB526C2WW
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB526C2WWElectric Range
3 diagrams107 parts
Parts Sections (3)
Diagram

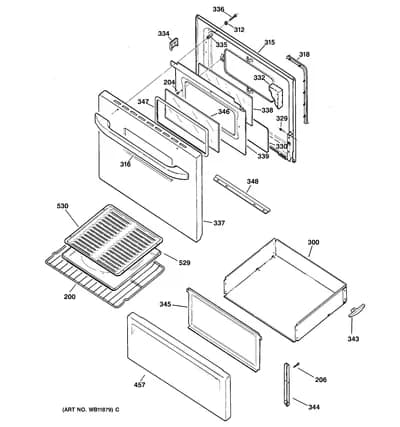

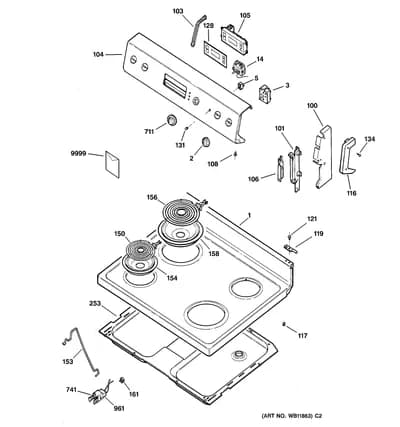

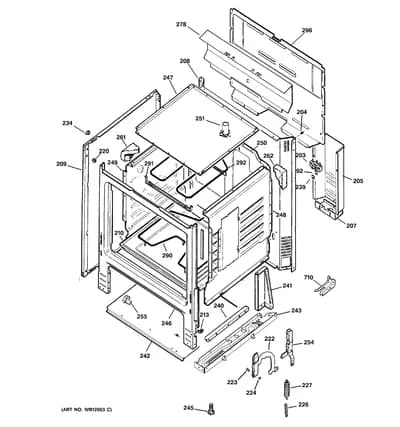

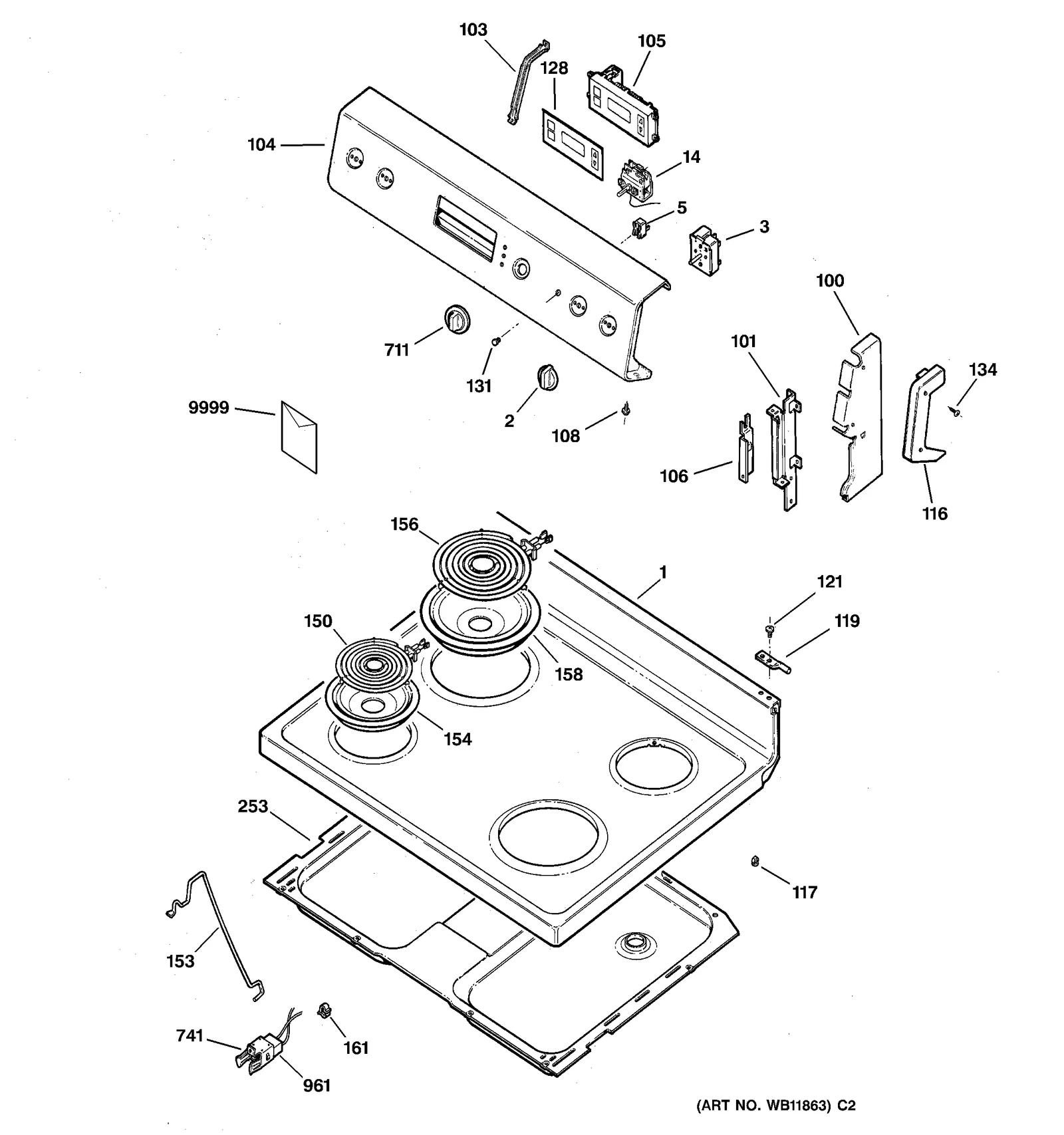

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WB62K10080replaces WB62K10041 COOKTOP (WH) | $126.74 PartSelect |
| 2 |  | WB03K10086NLA INF KNOB (WH) | Discontinued |
| 3 |  | INF SWITCH CONTROL 1250W | $88.15 Part Advantage |
| 3 |  | INF SW CTN (2100W) | $83.71 Part Advantage |
| 5 |  | LAMP PILOT | $10.20 Part Advantage |
| 14 | | WB02X8441NLA CLIP THERMOSTAT | Discontinued |
| 14 |  | THERMOSTAT TOP HEAT SP | $129.57 Part Advantage |
| 100 | | COVER END RT (WH) | $8.56 RepairClinic |
| 100 | | COVER END LT (WH) | $8.98 RepairClinic |
| 101 | | WB37K17replaces WB37K0017 PLATE END RIGHT | - |
| 101 | | WB37K18replaces WB37K0018 PLATE END LEFT | - |
| 103 | | BRACKET MTG TIMER | - |
| 104 | – | WB36K10191 TRIM CONTROL (WH) | - |
| 105 |  | WB27T10469replaces WB27K10028 CLOCK TOD LED-(THERMO) | $83.15 Part Advantage |
| 106 | | SUPPORT HINGE CKTP RT | - |
| 106 | | SUPPORT HINGE CKTP LT | $7.50 ApplianceParts Pro |
| 108 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 108 | | SCREW WH | Discontinued |
| 116 |  | END CAP RT (WH) | $63.05 Parts Dr |
| 116 |  | END CAP LT (WH) | $63.02 Parts Dr |
| 117 | | WB2K17replaces WB02K0017 PIN LOCATOR FRONT | - |
| 119 |  | PIN HINGE | Discontinued |
| 121 |  | WB1K5119replaces WB01K0001 SCREW | $7.18 Parts Dr |
| 128 | | WB11K0052NLA OVERLAY (WH) | Discontinued |
| 131 |  | WB25T10041replaces WB25K0002 LENS | $5.09 Part Advantage |
| 134 | | WB01K10004NLA SCREW-MTG END CAP (WH) | Discontinued |
| 150 |  | SURFACE UNIT ASM 6" | $61.31 Part Advantage |
| 153 |  | ROD SUPPORT | $5.84 Part Advantage |
| 154 |  | 6 INCH CHROME BURNER BOWL - ELEC | $7.42 Part Advantage |
| 156 |  | SURFACE UNIT ASM 8" | $38.74 Part Advantage |
| 158 |  | 8 INCH CHROME BURNER BOWL - ELEC | $9.50 Part Advantage |
| 161 | | WB02X8115NLA CLIP WIRE | Discontinued |
| 253 | | WB64K10002NLA BOX-COOKTOP | Discontinued |
| 711 | | KNOB THERMOSTAT (WH) | - |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 961 |  | WB17T10006replaces WB17T10001 TERMINAL BLOCK | $15.34 Part Advantage |
| 9999 | – | 31-20763 MANUAL MINI/ELEC. DIAG. | - |
| 9999 | – | 49-80053 MANUAL-USE & CARE | - |
