Model
Hotpoint RB526DH1BB
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB526DH1BBElectric Range
3 diagrams106 parts
Parts Sections (3)

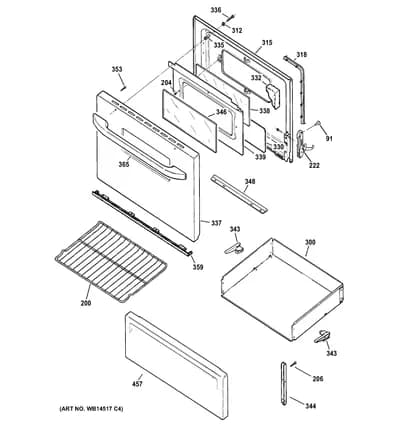

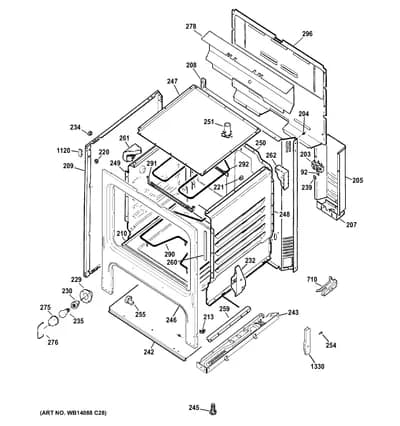

Diagram

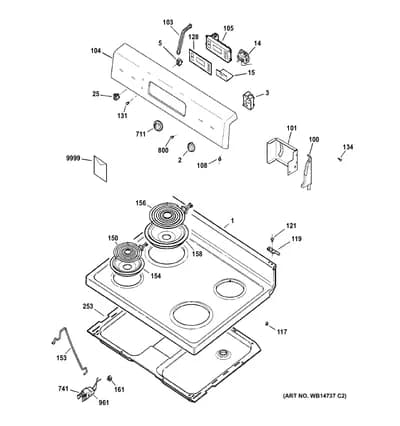

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | COOKTOP BLACK | $132.58 Parts Dr |
| 2 |  | KNOB | $8.87 Part Advantage |
| 3 |  | INF SWITCH CONTROL 1250W | $88.15 Part Advantage |
| 3 |  | INF SW CTN (2100W) | $83.71 Part Advantage |
| 5 |  | LAMP PILOT | $10.20 Part Advantage |
| 14 |  | THERMOSTAT ELECTRIC | $51.67 Part Advantage |
| 15 |  | CARTON COVER THERMOSTAT | $20.27 ApplianceParts Pro |
| 25 |  | SWITCH ROCKER SEALED | $13.72 Parts Dr |
| 100 |  | END SUPPORT GLOSS BLACK RT | $9.37 RepairClinic |
| 100 |  | END SUPPORT GLOSS BLACK LF | $13.27 RepairClinic |
| 101 |  | BRACKET COOK TOP | $7.95 ApplianceParts Pro |
| 101 |  | WB37X20193replaces WB37X20286 BRACKET COOK TOP | - |
| 103 | | BRACKET CONTROL | - |
| 104 | | TRIM CONTROL | - |
| 105 |  | TIMER TOD LED | $83.15 Part Advantage |
| 117 | | WB2K17replaces WB02K0017 PIN LOCATOR FRONT | - |
| 117 |  | PIN LOCATOR REAR | $15.00 PartSelect |
| 119 |  | PIN HINGE | Discontinued |
| 121 |  | WB1K5119replaces WB01K0001 SCREW | $7.18 Parts Dr |
| 128 |  | WB27X22606NLA FACEPLATE | Discontinued |
| 131 |  | WB25T10041replaces WB25K0002 LENS | $5.09 Part Advantage |
| 134 | | WB01X5716NLA SCREW (BLK) | Discontinued |
| 150 |  | WB30K10002replaces WB30K10023 SURFACE UNIT ASM 6" | $61.31 Part Advantage |
| 153 |  | ROD SUPPORT | $5.84 Part Advantage |
| 154 |  | BOWL BURNER 6 (CH) | $4.94 Part Advantage |
| 156 |  | SURFACE UNIT ASM 8" | $55.13 Part Advantage |
| 158 |  | BOWL BURNER 8 (CH) | $5.43 Part Advantage |
| 161 | | WB02X8115NLA CLIP WIRE | Discontinued |
| 253 |  | BOX COOKTOP | $87.54 ApplianceParts Pro |
| 711 |  | KNOB THERMOSTAT ASM. | $12.90 Parts Dr |
| 741 |  | CLIP RECEPTICAL | $4.76 Part Advantage |
| 800 |  | WB01X23501replaces WB01T10020 SCREW 8-32 TPT FLR 215 SN | $9.71 Parts Dr |
| 961 |  | WB17T10006replaces WB17K10003 BLOCK INSULATOR | $15.34 Part Advantage |
| 9999 | – | 31-17110 PM MINI MANUAL | - |
| 9999 | – | 49-88057 PM OWNERS MANUAL | - |
| 9999 |  | HINGE SERVICE KIT | - |
