Model
Hotpoint RB526DP1CC
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB526DP1CCElectric Range
3 diagrams117 parts

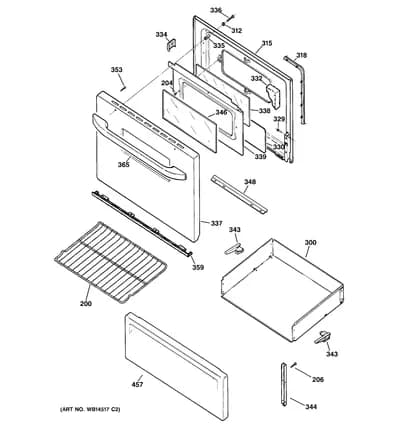

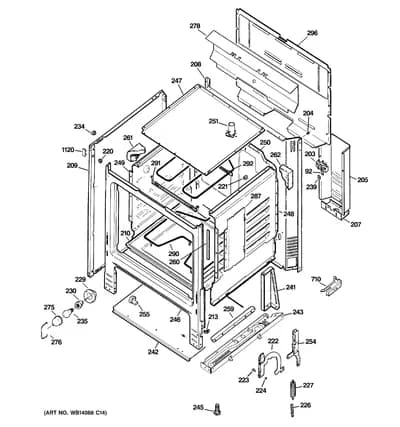

Parts Sections (3)
Diagram

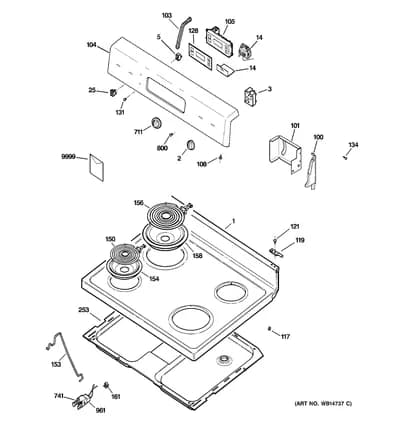

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | RANGE TOP | - |
| 2 |  | WB03T10129NLA INF KNOB (GE) BISQUE | Discontinued |
| 3 |  | INF SWITCH CONTROL 1250W | $88.15 Part Advantage |
| 3 |  | INF SW CTN (2100W) | $83.71 Part Advantage |
| 5 |  | LAMP PILOT | $10.20 Part Advantage |
| 14 |  | CARTON COVER THERMOSTAT | $20.27 ApplianceParts Pro |
| 14 |  | THERMOSTAT ELECTRIC | $51.67 Part Advantage |
| 25 |  | SWITCH ROCKER (BISQUE) | - |
| 100 | | END SUPPORT RT (BSQT) | - |
| 100 | | END SUPPORT LF (BSQT) | - |
| 101 |  | BRACKET COOK TOP RG | $3.58 RepairClinic |
| 101 |  | BRACKET COOK TOP LF | $3.57 RepairClinic |
| 103 | | BRACKET CONTROL | - |
| 104 | | TRIM CONTROL | - |
| 105 |  | TIMER TOD LED | $83.15 Part Advantage |
| 108 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 117 | | WB2K17replaces WB02K0017 PIN LOCATOR FRONT | - |
| 117 |  | PIN LOCATOR REAR | $15.00 PartSelect |
| 119 |  | PIN HINGE | Discontinued |
| 121 |  | WB1K5119replaces WB01K0001 SCREW | $7.18 Parts Dr |
| 128 | | WB27K10133replaces WB27K10249 FACEPLATE | - |
| 131 |  | WB25T10041replaces WB25K0002 LENS | $5.09 Part Advantage |
| 134 | | WB1X5364replaces WB01K10018 SCREW 8-18 (BISQUE) | $5.09 Part Advantage |
| 150 |  | WB30K10002replaces WB30K10023 SURFACE UNIT ASM 6" | $61.31 Part Advantage |
| 153 |  | ROD SUPPORT | $5.84 Part Advantage |
| 154 |  | 6 INCH CHROME BURNER BOWL - ELEC | $7.42 Part Advantage |
| 156 |  | SURFACE UNIT ASM 8" | $55.13 Part Advantage |
| 158 |  | 8 INCH CHROME BURNER BOWL - ELEC | $9.50 Part Advantage |
| 161 | | WB02X8115NLA CLIP WIRE | Discontinued |
| 253 |  | BOX COOKTOP | $87.54 ApplianceParts Pro |
| 711 |  | ASM KNOB GE THERMOSTAT | $7.70 Part Advantage |
| 741 |  | CLIP RECEPTICAL | $4.76 Part Advantage |
| 800 |  | SCR 8-18 AB IHW 3/8 SN | $8.98 RepairClinic |
| 800 |  | WB01X23501replaces WB01T10020 SCREW 8-32 TPT FLR 215 SN | $9.71 Parts Dr |
| 961 |  | WB17T10006replaces WB17K10003 BLOCK INSULATOR | $15.34 Part Advantage |
| 9999 | – | 31-10781 PM INSTALL INSTRUCTIONS | - |
| 9999 | – | 31-10831 INSTALL INSTRUCTIONS | - |
| 9999 | – | 31-21268 PM MINI-MANUAL | - |
| 9999 | – | 49-88045-2 PM OWNERS AND INSTALL | - |
