Model
Hotpoint RB526S2
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB526S2Electric Range
3 diagrams80 parts
Parts Sections (3)

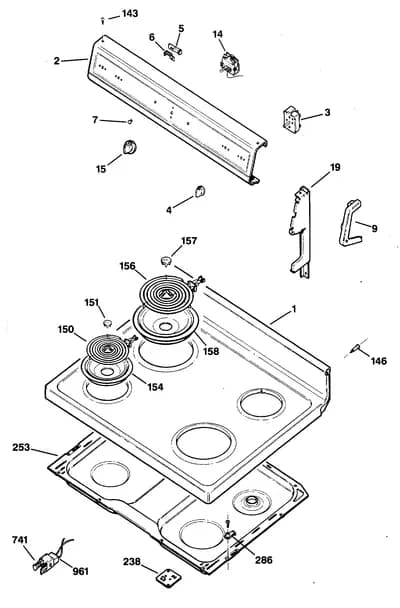

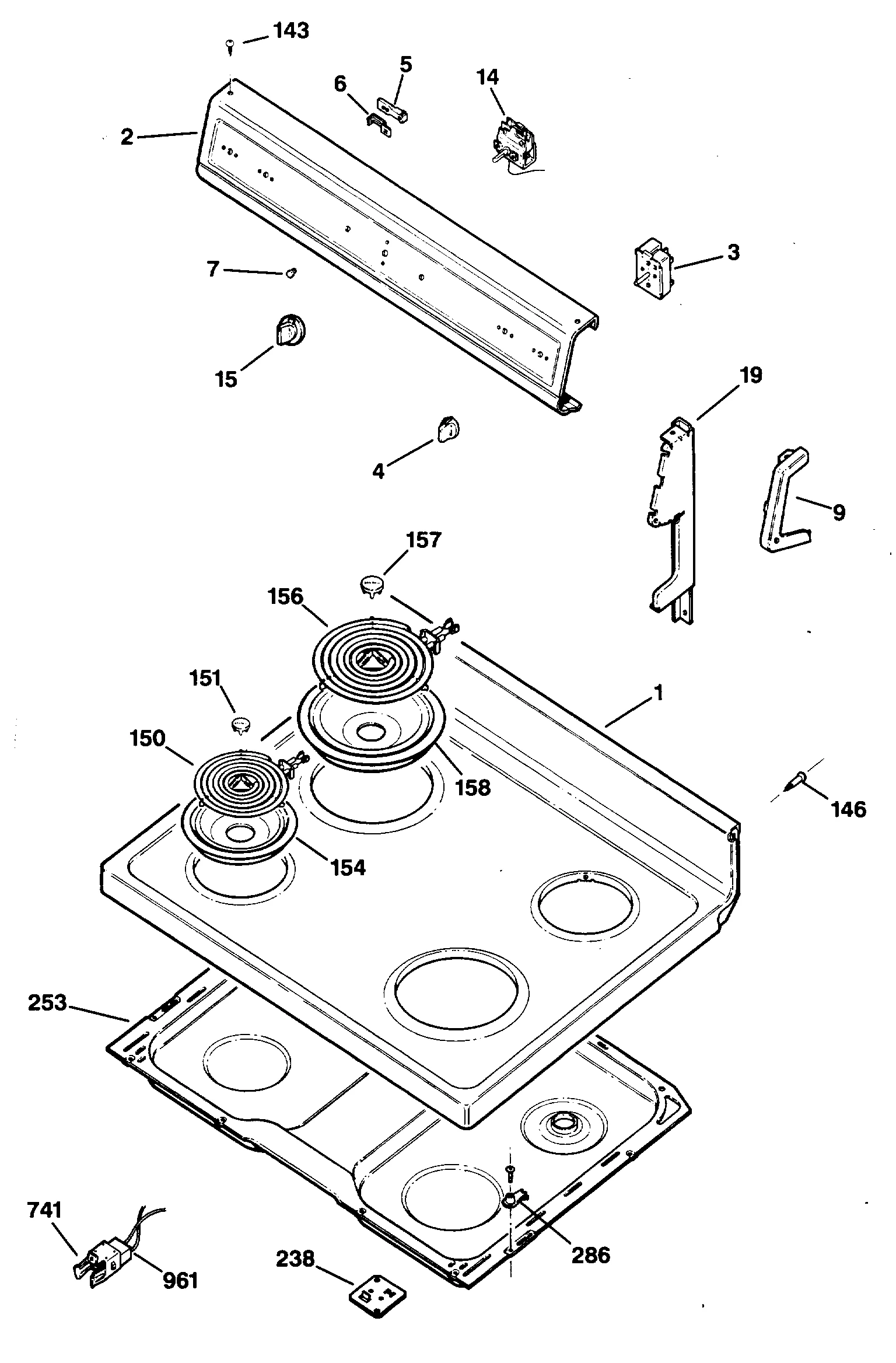

Diagram
Parts List
Parts in Parts List
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X5408 COOKTOP WH | - |
| 1 | – | WB62X5409 COOKTOP AD | - |
| 2 | – | WB07X7194 TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB03X5808NLA KNOB INFINITE | Discontinued |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | | SCREW WH | Discontinued |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB21X5304NLA THERMOSTAT | Discontinued |
| 15 | – | WB03X5809 THERMOSTAT KNOB | - |
| 19 | | WB7X7143replaces WB07X7143 CAP END LH WH | - |
| 19 | – | WB07X7144 CAP END RH WH | - |
| 19 | | WB07X10127replaces WB07X7161 PLATE END | - |
| 19 | | WB07X10130replaces WB07X7164 PLATE END | - |
| 146 | – | WB01X5832 SCREW SHOULDER | - |
| 150 |  | WB30M1replaces WB30X5121 UNIT ASM 6" P I | $32.76 Part Advantage |
| 151 | | WB32X5089NLA TRIM CENTER | Discontinued |
| 152 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 154 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 156 |  | WB30M2replaces WB30X5122 UNKNOWN | $44.65 Part Advantage |
| 158 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 253 | | WB49X5566replaces WB49X5499 BOX COOKTOP | - |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 397 | – | WB07X7145 CAP END LEFT | - |
| 397 | – | WB07X7146 CAP END RIGHT | - |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 961 | | WB02X1185NLA CLIP | Discontinued |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 31-1424 PM MANUAL | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
