Model
Hotpoint RB526WW3
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB526WW3Electric Range
3 diagrams90 parts

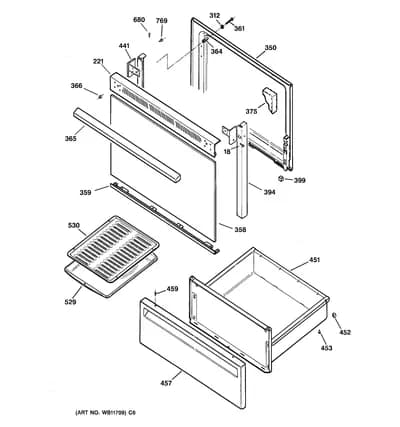

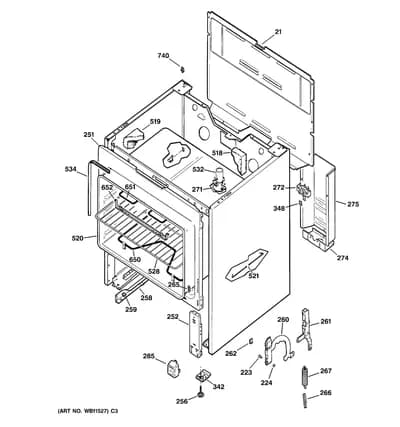

Parts Sections (3)
Diagram

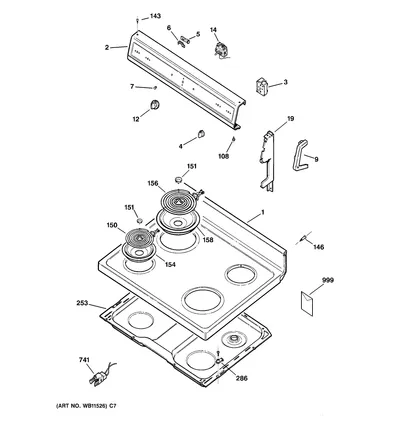

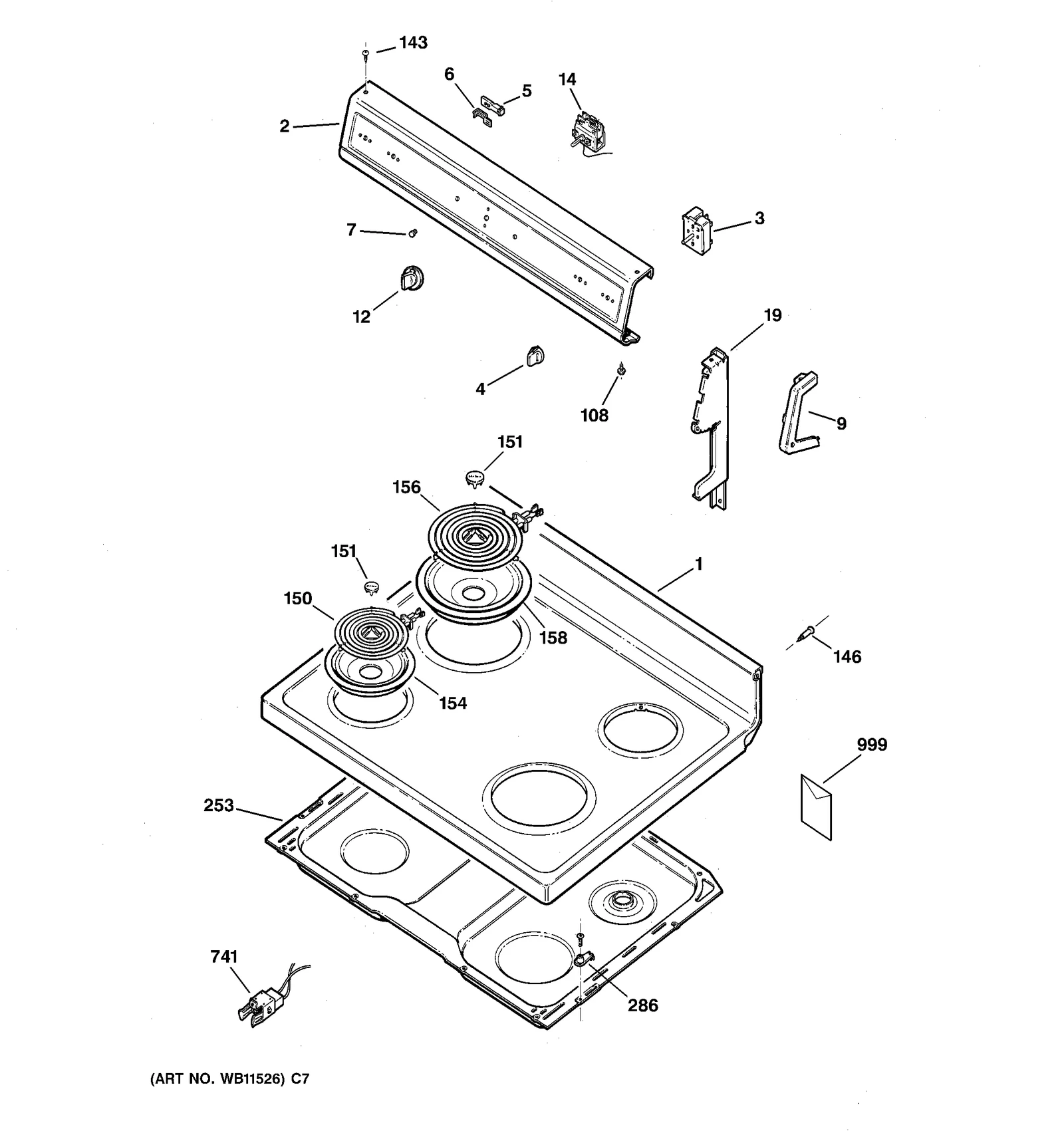

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X5455 WELD ASM RANGETOP WH | - |
| 2 |  | TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB23X5092 SW INF. CONTROL | $35.64 Part Advantage |
| 3 | | WB21X36771replaces WB32X5095 SWITCH INFINITE CONTROL | $35.64 Part Advantage |
| 4 | | WB03X5808NLA KNOB INFINITE | Discontinued |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 6 | | WB02X1185NLA CLIP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | – | WB07X7145 CAP END LEFT | - |
| 9 | – | WB07X7146 CAP END RIGHT | - |
| 12 | – | WB03X5861 KNOB SKIRT ASM | - |
| 14 |  | THERMOSTAT TOP HEAT SP | $141.32 Part Advantage |
| 19 | | WB07X10127replaces WB07X7268 PLATE END WH RH | - |
| 19 | | WB07X7269NLA PLATE END WH LH | Discontinued |
| 108 |  | WB1X5904replaces WB01X5904 SCR 8-18 BA POR 3/4 SN | $3.36 RepairClinic |
| 143 | | SCREW WH | Discontinued |
| 146 | – | WB01X5832 SCREW SHOULDER | - |
| 150 |  | WB30M1replaces WB30X5129 6" P.I. S/U Y SUPPORT | $32.76 Part Advantage |
| 151 | | TRIM CENTER | $3.06 RepairClinic |
| 154 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 156 |  | WB30M2replaces WB30X5130 8" P.I. S/U ALUM | $44.65 Part Advantage |
| 158 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 253 | | BOX COOKTOP | - |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 999 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 999 | – | 31-20431 PM MANUAL MINI | - |
| 999 | – | 49-8853 PM MANUAL USE & CARE | - |
| 999 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
