Model
Hotpoint RB533GV3
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB533GV3Electric Range
3 diagrams110 parts

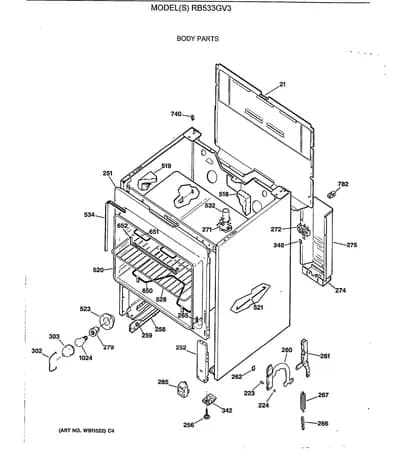

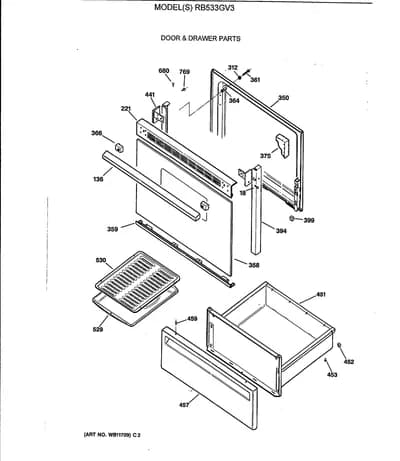

Parts Sections (3)
Diagram

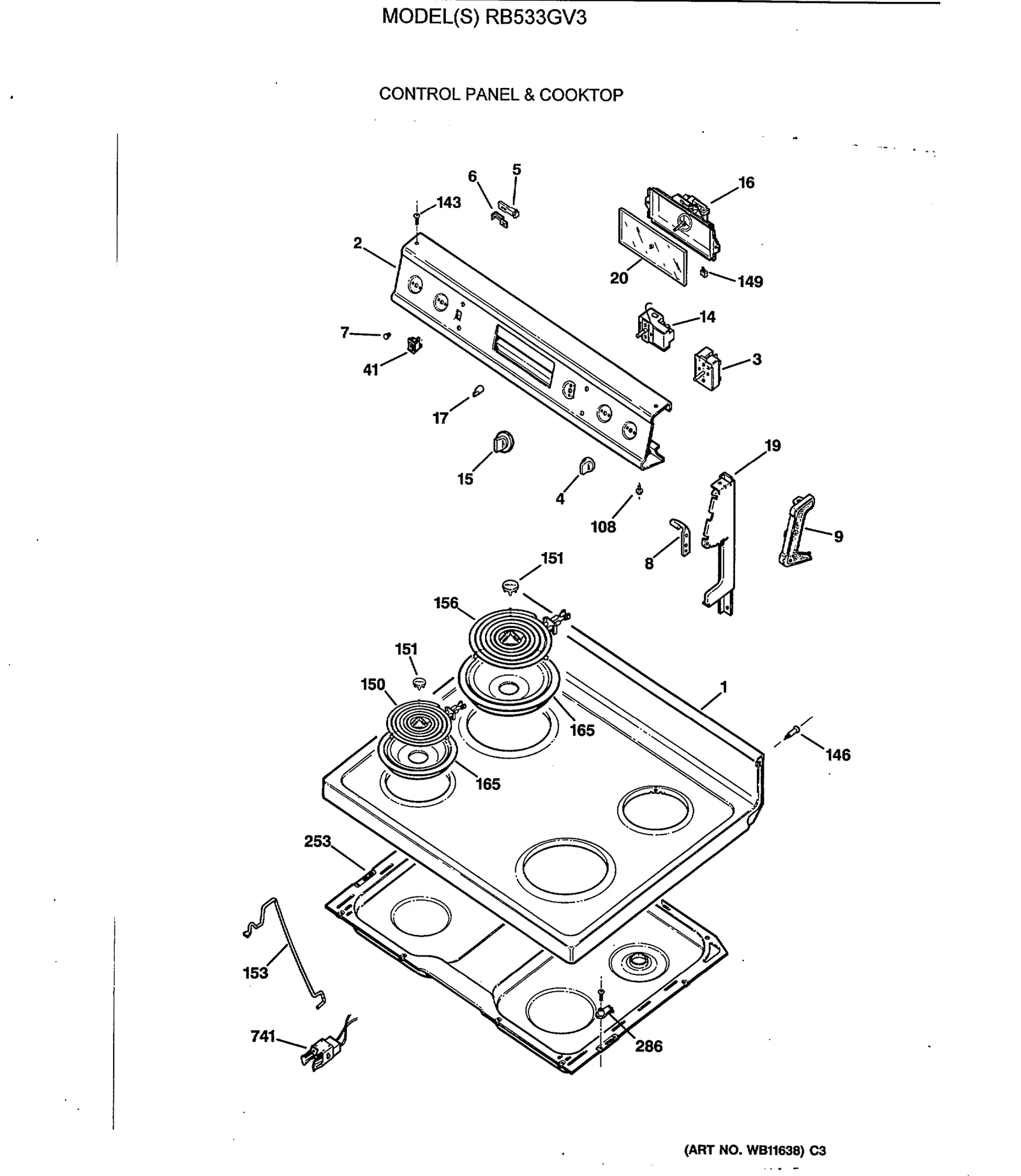

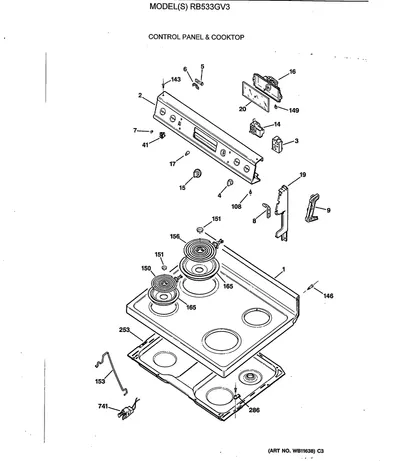

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | COOKTOP WH | - |
| 1 | | WB62X5406replaces WB62X5452 WELD ASM RANGETOP AD | - |
| 2 | | TRIM & BRACKET ASM | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 | | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 6 | | WB02X1185NLA CLIP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 8 | | WB2X8126replaces WB02X8126 PIN HINGE R | - |
| 8 | – | WB02X8127 PIN HINGE L | - |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 14 |  | THERMOSTAT TOP HEAT SP | $141.32 Part Advantage |
| 15 | | WB03X5793NLA KNOB THERMOSTAT | Discontinued |
| 16 |  | WB19X10008replaces WB19X5305 TIMER (BLACK) | - |
| 17 |  | WB3X5699replaces WB03X5814 KNOB, OVEN SET | $14.95 Part Advantage |
| 19 | | WB07X7272NLA PLATE END RH - BLACK | Discontinued |
| 19 | | WB07X7273NLA PLATE END LH - BLACK | Discontinued |
| 19 | – | WB07X7274 PLATE END RH - ALMOND | - |
| 19 | – | WB07X7275 PLATE END LH - ALMOND | - |
| 20 | | CRYSTAL TIMER | - |
| 41 |  | WB24T10042replaces WB24X5347 SWITCH OVEN LAMP - BLK | - |
| 108 |  | WB1X5904replaces WB01X5904 SCR 8-18 BA POR 3/4 SN | $3.36 RepairClinic |
| 143 | | WB01X5860NLA SCREW | Discontinued |
| 146 | – | WB01X5832 SCREW SHOULDER | - |
| 149 | – | WB02X7702 CLIP CRYSTAL | - |
| 150 |  | WB30M1replaces WB30X5129 6" P.I. S/U Y SUPPORT | $32.76 Part Advantage |
| 151 | | TRIM CENTER | $3.06 RepairClinic |
| 153 | | WB02X8114NLA ROD SUPPORT | Discontinued |
| 156 |  | WB30M2replaces WB30X5130 8" P.I. S/U ALUM | $44.65 Part Advantage |
| 165 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 165 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 253 | | BOX COOKTOP | - |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 752 | – | WB00X6542 340531 | - |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 31-20213 PM MANUAL MINI | - |
| 32767 | – | 39-4755 PM MANUAL USE & CARE | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
| 32767 | | WB17X171replaces WB17X0171 TERMINAL MALE & FEMALE | - |
