Model
Hotpoint RB533GW2
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB533GW2Electric Range
3 diagrams105 parts
Parts Sections (3)

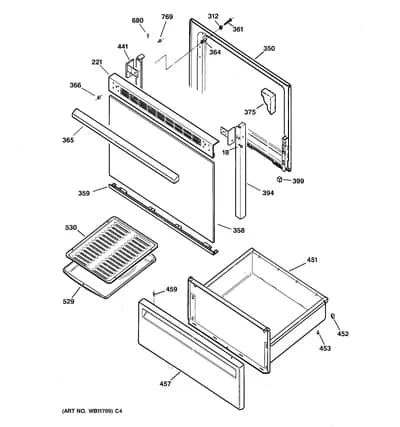

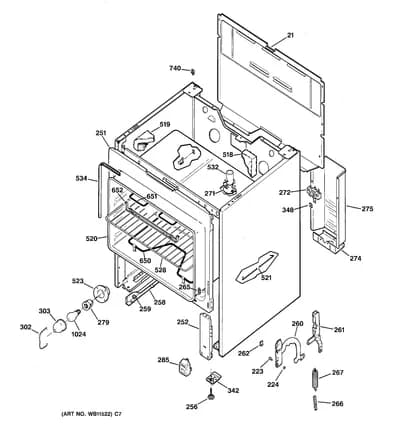

Diagram

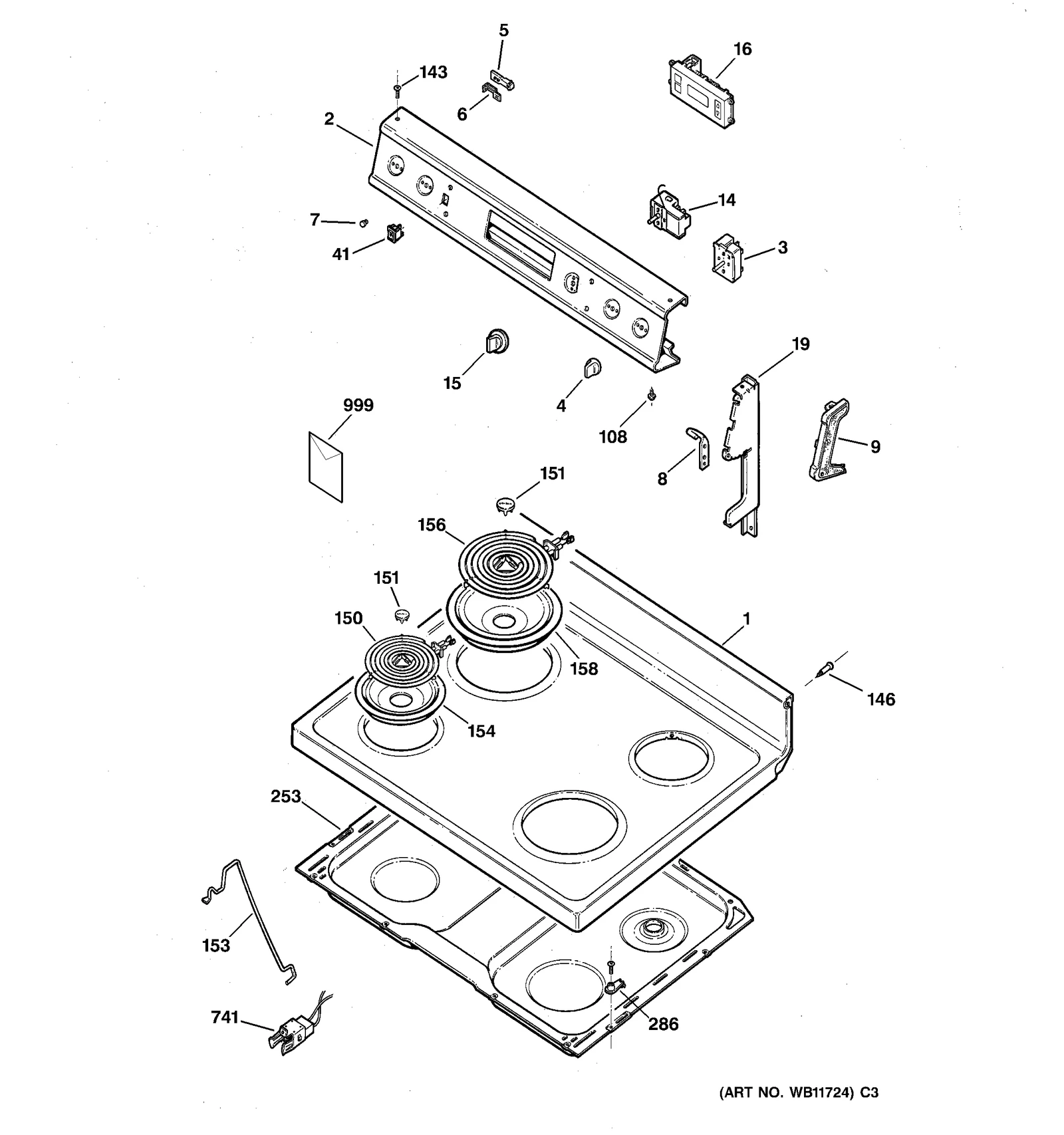

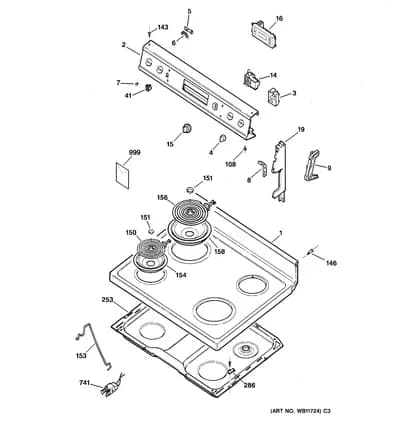

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | COOKTOP WH | - |
| 1 | | COOKTOP AD | - |
| 2 | | TRIM BRACKET ASM | - |
| 3 |  | WB21X36771replaces WB23X5092 SW INF. CONTROL | $35.64 Part Advantage |
| 3 | | WB21X36771replaces WB32X5095 SWITCH INFINITE CONTROL | $35.64 Part Advantage |
| 4 | | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 6 | | WB02X1185NLA CLIP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 8 | | WB2X8126replaces WB02X8126 PIN HINGE R | - |
| 8 | – | WB02X8127 PIN HINGE L | - |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 14 |  | THERMOSTAT TOP HEAT SP | $141.32 Part Advantage |
| 15 | | WB03X5793NLA KNOB THERMOSTAT | Discontinued |
| 16 | | WB27X5598NLA TIMER TOD LED ASM | Discontinued |
| 19 | | WB07X10129replaces WB07X7270 END PLATE AD RH | - |
| 19 | | WB07X10130replaces WB07X7271 PLATE END LH AD | - |
| 19 | | WB07X7272NLA PLATE END RH - BLACK | Discontinued |
| 19 | | WB07X7273NLA PLATE END LH - BLACK | Discontinued |
| 41 |  | WB24T10042replaces WB24X5347 SWITCH OVEN LAMP - BLK | - |
| 108 |  | WB1X5904replaces WB01X5904 SCR 8-18 BA POR 3/4 SN | $3.36 RepairClinic |
| 143 | | WB01X5860NLA SCREW | Discontinued |
| 146 | – | WB01X5832 SCREW SHOULDER | - |
| 150 |  | WB30M1replaces WB30X5129 6" P.I. S/U Y SUPPORT | $32.76 Part Advantage |
| 151 | | TRIM CENTER | $3.06 RepairClinic |
| 153 | | WB02X8114NLA ROD SUPPORT | Discontinued |
| 154 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 156 |  | WB30M2replaces WB30X5130 8" P.I. S/U ALUM | $44.65 Part Advantage |
| 158 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 253 | | BOX COOKTOP | - |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 999 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 999 | – | 31-20432 PM MANUAL MINI | - |
| 999 | – | 39-4761 PM MANUAL USE & CARE | - |
| 999 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
