Model
Hotpoint RB536*A1
Electric Range
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB536*A1Electric Range
1 diagram135 parts

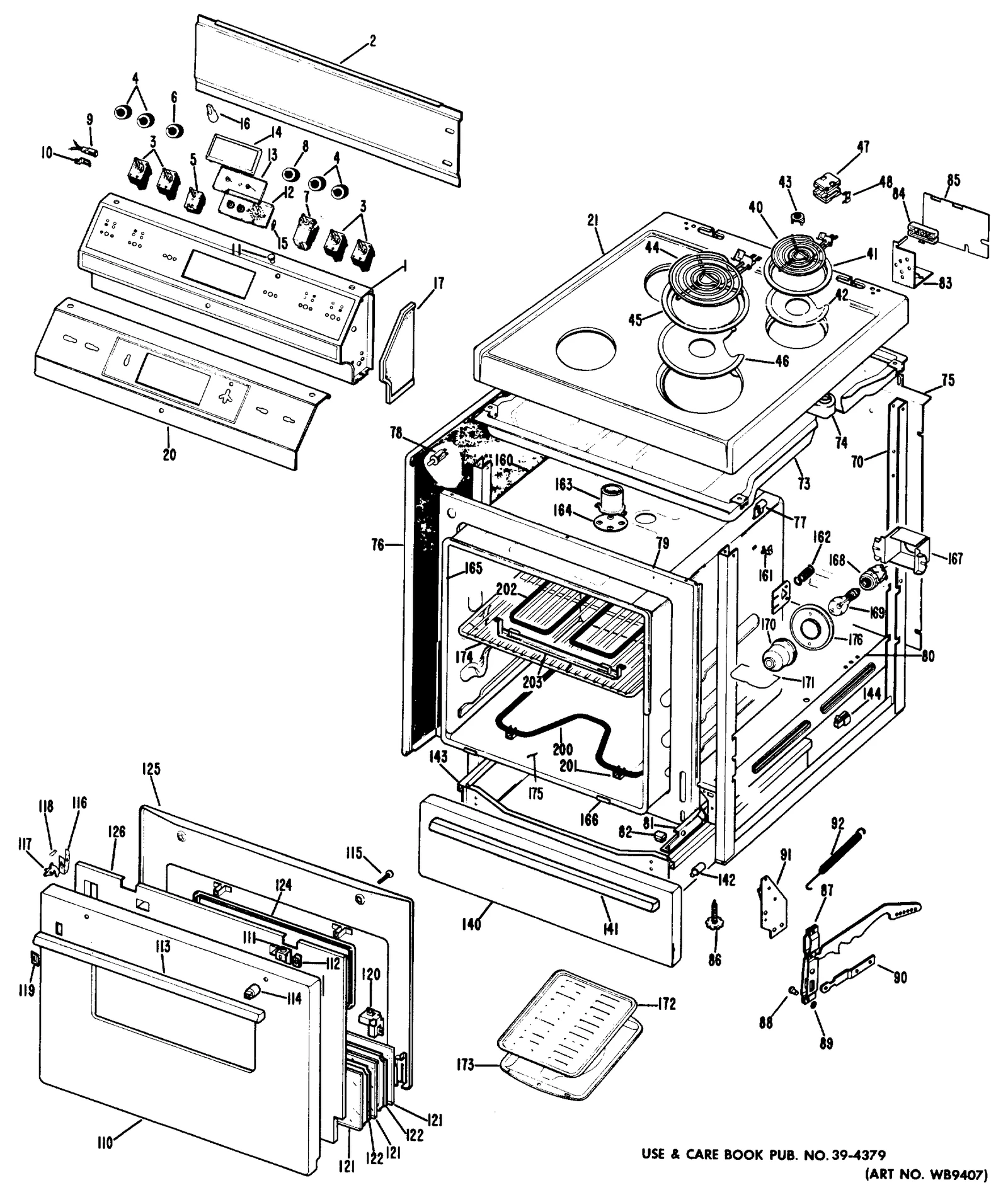

Parts Sections (1)
Diagram
Parts List
Parts in Parts List
143 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB61X5992 CONTROL PANEL - WH | - |
| 1 | – | WB61X5993 CONTROL PANEL - CF | - |
| 1 | – | WB61X5994 CONTROL PANEL - FA | - |
| 1 | – | WB61X5995 CONTROL PANEL - HA | - |
| 1 | – | WB61X5996 CONTROL PANEL - AD | - |
| 2 | – | WB63X5193 BACK COVER | - |
| 3 | – | WB01X5218 SCREW MTG. S.U. SWITCH | - |
| 3 |  | WB21X36771replaces WB21X0242 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB3X5479replaces WB03X5479 KNOB SURFACE UNIT | - |
| 5 | – | WB01X5218 SCREW MTG. S.U. SWITCH | - |
| 5 | – | WB22X5022 SWITCH, OVEN | - |
| 6 | | WB03X5503NLA KNOB - SWITCH OVEN | Discontinued |
| 7 | – | WB01X5218 SCREW MTG. S.U. SWITCH | - |
| 7 | – | WB02X5760 SLEEVING | - |
| 7 | – | WB21X0177 THERMOSTAT, OVEN L.O. | - |
| 8 | | WB03X5481NLA KNOB THERMOSTAT | Discontinued |
| 9 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 10 | | WB02X1185NLA CLIP | Discontinued |
| 11 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 12 | – | WB19X0148 TIMER | - |
| 13 | | CRYSTAL TIMER | - |
| 14 | – | WB07X5607 BEZEL | - |
| 15 | | WB2X3325replaces WB02X3325 CLIP MTG TIMER | - |
| 16 |  | KNOB TIMER | Discontinued |
| 17 | – | WB07X6691 END CASTING - RH | - |
| 17 | – | WB07X6692 END CASTING - LH | - |
| 17 | – | WZ05X0250 SCR 8-32 T HXW 5/16 S | - |
| 20 | – | WB01X5371 NUT 700626A | - |
| 20 | – | WB02X5165 CLIP CABLE | - |
| 20 | – | WB07X5638 OVERLAY | - |
| 20 | – | WB62X5281 COOKTOP - WH | - |
| 20 | – | WB62X5282 COOKTOP - CF | - |
| 20 | – | WB62X5283 COOKTOP - FA | - |
| 20 | – | WB62X5284 COOKTOP - HA | - |
| 20 | – | WB62X5285 COOKTOP - AD | - |
| 20 | – | WZ04X0319 SCR 8-18 BA OPR 1 7/16 S | - |
| 20 | – | WZ04X0350 SCR 10-16 B HXW 5/8 S | - |
| 40 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 40 | – | WB01X5485 SCREW MTG. - UNITS TO CO | - |
| 40 |  | WB30X342replaces WB30X0342 SURFACE UNIT, 6" | $38.67 Part Advantage |
| 41 |  | TRIM RING 6" | $3.45 Part Advantage |
| 42 |  | WB32X10012replaces WB32X0036 UNIT PAN 6" | $2.88 Part Advantage |
| 43 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 43 | | WB32X0052NLA CENTER TRIM 6" UNIT | Discontinued |
| 44 | | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 44 | – | WB01X5485 SCREW MTG. - UNITS TO CO | - |
| 44 |  | WB30X348replaces WB30X0348 SURFACE UNIT, 8" | $45.43 Part Advantage |
| 45 |  | TRIM RING 8" | $14.08 Parts Dr |
| 46 |  | WB32X10013replaces WB32X5013 UNIT PAN 8" | $4.03 Part Advantage |
| 47 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 47 | | WB2X2398replaces WB02X2398 TERM BLOCK SINGLE COIL | - |
| 48 | | WB02X0574NLA CLIP INSULATOR | Discontinued |
| 70 | – | WB63X5096 "U" FRAME ASSEMBLY | - |
| 73 | – | WB63X5132 TOP INSULATION COVER | - |
| 74 | – | WB38X5032 OVEN VENT | - |
| 75 | – | WB56X5728 SIDE PANEL - WH | - |
| 75 | – | WB56X5729 SIDE PANEL - CF | - |
| 75 | – | WB56X5730 SIDE PANEL - FA | - |
| 75 | – | WB56X5731 SIDE PANEL - HA | - |
| 75 | – | WB56X5732 SIDE PANEL - AD | - |
| 75 | – | WB63X5191 BACK COVER | - |
| 77 | – | WB02X5522 MOUNTING CLIP | - |
| 78 | – | WB02X5828 SLEEVING AT TERMINALS | - |
| 78 | – | WB24X0105 SWITCH, OVEN LIGHT | - |
| 79 | – | WB63X5094 OVEN FRONT | - |
| 80 | – | WB63X5190 LOWER COVER ASSEMBLY | - |
| 81 | | DRAWER GUIDE | - |
| 82 | – | WB02X5115 SLIDE - NYLON (AT FRONT OF GUIDE) | - |
| 83 | – | WB02X6519 BRACKET TERMINAL BLOCK | - |
| 84 | | WB2X646replaces WB02X0646 PLATE-GROUND | - |
| 84 |  | WB17X5095replaces WB17X0168 TERMINAL BLOCK, POWER | $69.99 Parts Dr |
| 85 | – | WB02X6521 TERMINAL BOX COVER | - |
| 86 | | WB1X5516replaces WB01X0450 LEG LEVELING | - |
| 87 | | WB10X5109NLA DOOR GUIDE ASM.-LH & RH | Discontinued |
| 88 | – | WB02X5682 HINGE PIN FOR SERVICE 3/16" DIA. | - |
| 89 | – | WB02X5681 RETAINING RING FOR HINGE PIN | - |
| 90 | – | WB01X5134 SPEC. SCREW - TRIMMED HD. 1/2-28X3/8" | - |
| 90 | | DOOR SUPPORT - LH & RH | - |
| 90 | | HINGE SUPPORT ASM. - RH | - |
| 90 | | HINGE SUPPORT ASM. - LH | - |
| 92 | – | WB09X5018 DOOR SPRING | - |
| 110 | – | WB02X6530 INSULATION | - |
| 110 | – | WB56X5713 PANEL - WH | - |
| 110 | – | WB56X5714 PANEL - CF | - |
| 110 | – | WB56X5715 PANEL - FA | - |
| 110 | – | WB56X5716 PANEL - HA | - |
| 110 | – | WB56X5717 PANEL - AD | - |
| 111 | – | WB02X6036 HANDLE SUPPORT | - |
| 112 | – | WB01X5065 SPEEDNUT ON HANDLE SUPPORT | - |
| 113 | – | WB15X5125 HANDLE | - |
| 114 | – | WB01X5530 GROMMET | - |
| 115 | – | WB01X5272 HANDLE MTG. SCREW | - |
| 116 | – | WB02X5218 PEEK LIGHT SPRING | - |
| 117 | – | WB02X5410 CAM | - |
| 118 | – | WB02X5217 LINK CAM | - |
| 119 | – | WB07X5022 TRIM PLATE LOWER OVEN | - |
| 120 | – | WB01X5484 SCREW MTG. - WINDOW TO L | - |
| 120 | – | WB02X5505 WINDOW BRACKET | - |
| 121 | | WINDOW - OUTER MIDDLE IN | - |
| 122 | – | WB02X6528 FRAME WINDOW | - |
| 124 | – | WB02X5500 WINDOW GASKET | - |
| 125 | – | WB01X5136 SCREW - INCL. WASHERS NO. 10-24X1/2" | - |
| 125 | – | WB55X5123 INNER DOOR LINER | - |
| 126 | – | WB01X5484 SCREW MTG. - WINDOW TO L | - |
| 126 | – | WB01X5493 SPEEDNUT MTG. HEAT SHIEL | - |
| 126 | – | WB02X6821 HEAT SHIELD | - |
| 140 | – | WB56X5820 PANEL - WH | - |
| 140 | – | WB56X5821 PANEL - CF | - |
| 140 | – | WB56X5822 PANEL - FA | - |
| 140 | – | WB56X5823 PANEL - HA | - |
| 140 | – | WB56X5824 PANEL - AD | - |
| 141 | | WB1X560Dreplaces WB01X0560 FIBER WASHER | - |
| 141 | – | WB01X5203 MOUNTING SCREW | - |
| 141 | – | WB15X5125 HANDLE | - |
| 142 | – | WB02X5521 BUMPER | - |
| 143 | – | WB58X5003 DRAWER ASSEMBLY | - |
| 144 | – | WB02X5116 DRAWER SLIDE - NYLON (AT REAR OF DRAWER) | - |
| 160 |  | WB02X32440replaces WB01X0119 CONTOURED WASHER | $9.20 ApplianceParts Pro |
| 160 | – | WB02X5206 LINER INSULATION WRAP | - |
| 160 | – | WB02X5208 INSULATION BACK | - |
| 160 | – | WB53X5062 OVEN LINER PACKAGE | - |
| 160 | – | WZ05X0196 SCREWBOTTOM | - |
| 161 |  | WB2X5041Dreplaces WB02X5041 CLIP FOR THERMOSTAT TUBE | - |
| 162 | – | WB09X5022 SPRING FOR OVEN LINER | - |
| 163 | – | WB38X5037 VENT TUBE | - |
| 164 | – | WB49X5005 VENT TUBE BAFFLE | - |
| 165 | | GASKET - TOP & SIDES | Discontinued |
| 166 | – | WB02X5084 GASKET - BOTTOM (1-1/2") | - |
| 167 | – | WB02X3447 BRACKET SUPPORT | - |
| 168 | | WB08X0191NLA RECEPTACLE | Discontinued |
| 170 |  | WB36X192replaces WB36X0389 OVEN LAMP LENS | $9.75 Part Advantage |
| 171 | – | WB02X2885 BAIL | - |
| 172 |  | WB48X10056replaces WB48X5002 BROILER PAN RACK | $16.74 Part Advantage |
| 173 | | WB48X10056replaces WB49X0088 BROIL PAN | $16.74 Part Advantage |
| 174 | | WB48X5012NLA SHELF STRAIGHT | Discontinued |
| 176 | – | WB02X3448 TRIM LAMP | - |
| 200 | | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 200 |  | WB44X5099replaces WB44X5083 BAKE UNIT 240V | $27.21 Part Advantage |
| 201 | – | WB02X5729 FOOT FOR BAKE UNIT | - |
| 202 | | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 202 | | BROIL UNIT 240V L.O. | $79.95 ApplianceParts Pro |
| 203 |  | WZ4X345Dreplaces WB01X5166 SCREW MT. SUPPORT | - |
| 203 | | WB02X1452NLA SUPPORT BROIL | Discontinued |
