Hotpoint RB536*JX
Electric Range
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB536*JXElectric Range
1 diagram128 parts
Parts Sections (1)

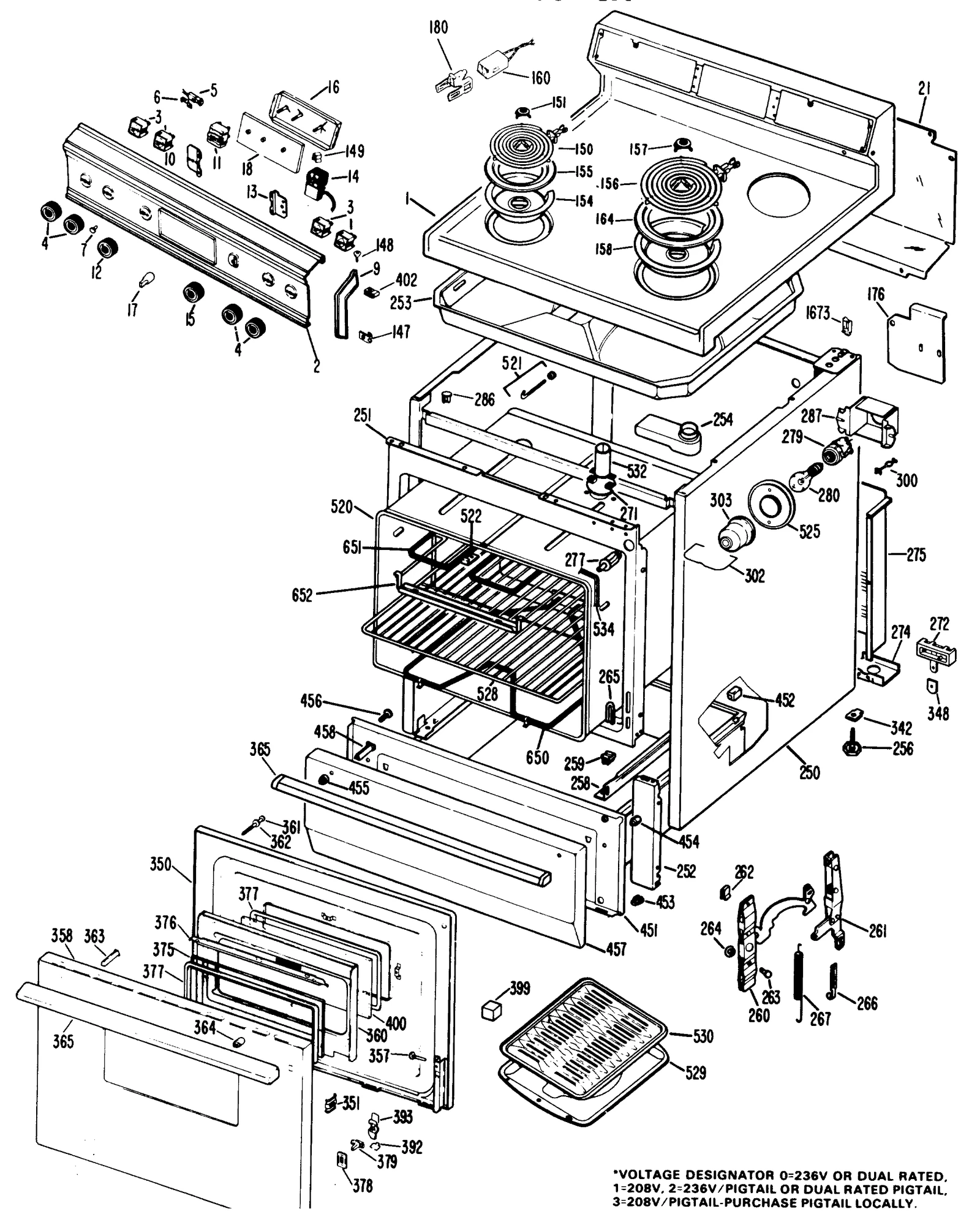

Diagram
Parts List
Parts in Parts List
131 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WB62X1469NLA COOKTOP WH | Discontinued |
| 1 | – | WB62X1472 COOKTOP HA | - |
| 1 | | COOKTOP AD | - |
| 2 | – | WB07X6827 TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 | | WB03X5636NLA KNOB SURFACE UNIT | Discontinued |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 6 | | WB02X1185NLA CLIP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | – | WB07X1083 END CAP RH | - |
| 9 | – | WB07X1084 END CAP LH | - |
| 10 | – | WB02X3261 BRACKET LH | - |
| 11 |  | WB22X5131NLA SWITCH, OVEN | Discontinued |
| 12 | – | WB03X5639 KNOB OVEN SWITCH | - |
| 13 | – | WB02X3262 BRACKET RH | - |
| 14 | | WB02X1394NLA SLEEVE | Discontinued |
| 14 | | THERMOSTAT, OVEN L.O. | - |
| 15 | | WB3X5638replaces WB03X5638 KNOB THERMOSTAT | - |
| 16 | – | WB19X5289 TIMER | - |
| 17 |  | WB3X5699replaces WB03X5699 "TIMER-KNOB" | $14.95 Part Advantage |
| 18 | – | WB36X0404 CRYSTAL TIMER | - |
| 21 | – | WB49X0390 COVER BACK | - |
| 147 | – | WB01X0578 SPEEDNUT CAP | - |
| 148 | | WB01X5716NLA SCREW (BLK) | Discontinued |
| 149 | – | WB02X2901 CLIP CRYSTAL | - |
| 150 |  | WB30M1replaces WB30X5071 SURFACE UNIT, 6" | $32.76 Part Advantage |
| 151 | | WB32X0052NLA CENTER TRIM 6" UNIT | Discontinued |
| 154 | – | WB32X5051 PAN 6" PORC. GRAY | - |
| 155 |  | WB31X5013replaces WB31X5015 TRIM RING 6" | $3.45 Part Advantage |
| 156 |  | WB30M2replaces WB30X5072 SURFACE UNIT, 8" | $44.65 Part Advantage |
| 157 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 158 |  | WB32X5060replaces WB32X5052 PAN 8" PORC. GRAY | $11.80 RepairClinic |
| 160 |  | WB17X5113replaces WB17X5094 RECEPTACLE ASM | $20.05 Part Advantage |
| 164 |  | WB31X5014replaces WB31X5012 TRIM RING 8" | $14.08 Parts Dr |
| 176 | – | WB49X0391 COVER LIGHT | - |
| 180 | | WB17X5113replaces WB02X7618 BRACKET MTG RECEPTACLE | $20.05 Part Advantage |
| 251 | – | WB56X6050 FRAME FRONT | - |
| 252 | – | WB49X0322 FILLER PANEL | - |
| 253 | – | WB49X0341 COOKTOP BOX | - |
| 254 | – | WB38X0050 VENT BODY | - |
| 256 |  | WR2X4978replaces WR02X4978 LEVELING LEG | - |
| 258 | | WB39X0051NLA DRAWER GUIDE RH & LH | Discontinued |
| 259 | | WB02X0831NLA SLIDE GUIDE | Discontinued |
| 260 | – | WB10X5148 HINGE LEVER | - |
| 261 | | WB10X0148NLA HINGE SPT RH | Discontinued |
| 261 | | WB10X149replaces WB10X0149 HINGE SPT LH | - |
| 263 | | WB02X6195NLA PIN HINGE DOOR | Discontinued |
| 264 | | WB2X1082replaces WB02X1082 RING RETAINING | - |
| 265 | – | WB02X6342 GUIDE HINGE LEVER | - |
| 266 | | WB02X2506NLA HOOK DOOR SPRING | Discontinued |
| 267 | – | WB09X5100 SPRING DOOR | - |
| 271 | – | WB02X1626 BAFFLE | - |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 274 | | WB2X1908replaces WB02X1908 KNOCKOUT PLATE | - |
| 275 | – | WB59X0173 GUARD TERMINAL | - |
| 277 | – | WB24X0105 SWITCH, OVEN LIGHT | - |
| 279 | | WB08X0191NLA RECEPTACLE | Discontinued |
| 280 |  | 40A15replaces WX12X1510 40A15 | $8.96 Parts Dr |
| 287 | – | WB02X3447 BRACKET SUPPORT | - |
| 302 | – | WB02X2885 BAIL | - |
| 303 |  | WB36X192replaces WB36X0389 OVEN LAMP LENS | $9.75 Part Advantage |
| 342 | – | WB02X7524 RETAINER LEG | - |
| 348 | | WB2X646replaces WB02X0646 PLATE-GROUND | - |
| 350 | – | WB55X5290 DOOR LINER | - |
| 351 | – | WB02X6270 SPACER PANEL | - |
| 357 |  | WB1X558Dreplaces WB01X0558 SCREW NAIL POINT | - |
| 358 | – | WB02X3140 INSULATION | - |
| 358 | | DOOR PANEL WH | - |
| 358 | – | WB56X1472 DOOR PANEL HA | - |
| 358 | – | WB56X1473 DOOR PANEL AD | - |
| 360 | – | WB49X0384 GUARD INSULATION | - |
| 361 | | WZ4X423Dreplaces WZ04X0423 SCREW-MTG HDL DOOR | - |
| 362 |  | WB02X32440replaces WB01X0119 CONTOURED WASHER | $9.20 ApplianceParts Pro |
| 363 | | WB02X6204NLA SPACER PANEL | Discontinued |
| 364 | | WB2X3245replaces WB02X3245 SPACER | - |
| 365 | | WB15X5160NLA HANDLE | Discontinued |
| 375 | – | WB36X0430 CRYSTAL WINDOW | - |
| 376 | – | WB02X3282 CLIP CRYSTAL | - |
| 377 | | WB07X1031NLA TRIM CRYSTAL | Discontinued |
| 378 | – | WB07X5022 TRIM PLATE LOWER OVEN | - |
| 379 | – | WB02X5410 CAM | - |
| 392 | – | WB02X5217 LINK CAM | - |
| 393 | – | WB09X5083 CAM SPRING | - |
| 397 | | WB1X5754replaces WB01X5754 SCREW 8-18 ABT 1/2 S | - |
| 399 | – | WB02X3285 PAD | - |
| 400 | – | WB36X0526 CRYSTAL WINDOW | - |
| 402 | – | WB01X0591 SPEEDNUT | - |
| 409 | – | WB02X3470 COUNTERWEIGHT | - |
| 451 | | WB58X0050NLA DRAWER ASM | Discontinued |
| 452 | | WB02X0840NLA SLIDE TOP | Discontinued |
| 453 | | WB02X3394NLA PLUG BUTTON | Discontinued |
| 453 | | WB02X7654NLA SLIDE BOTTOM | Discontinued |
| 454 | | WB02X0584NLA BUMPER | Discontinued |
| 455 | – | WBO1X0560 SPACER | - |
| 456 | – | WZ04X0395 HANDLE SCREW | - |
| 457 | – | WB56X1396 DRAWER PANEL WH | - |
| 457 | – | WB56X1399 DRAWER PANEL HA | - |
| 457 | – | WB56X1400 DRAWER PANEL AD | - |
| 458 | – | WB02X3387 SPACER PANEL | - |
| 461 |  | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 520 | – | WB02X3141 INSULATION | - |
| 520 | | WB02X3471NLA CLIP CAPILLARY TUBEOVEN | Discontinued |
| 521 | – | WB09X0088 LOCKWASHER | - |
| 522 | – | WB02X3393 TRIM CLIP | - |
| 525 | – | WB02X3448 TRIM LAMP | - |
| 528 | | WB48X5044NLA OVEN RACKS | Discontinued |
| 529 |  | WB48X10056replaces WB49X5380 BROIL PAN | $16.74 Part Advantage |
| 530 | | WB48X10056replaces WB48X5002 BROILER PAN RACK | $16.74 Part Advantage |
| 532 | – | WB38X0072 TUBE VENT | - |
| 534 |  | WB2X1522replaces WB02X1522 GASKET SILICONE | $87.97 Parts Dr |
| 650 |  | BAKE UNIT 208/240V | $31.77 Part Advantage |
| 651 |  | WB44X173replaces WB44X0185 BROIL UNIT 208/240V L.O. | $22.62 Part Advantage |
| 652 | | WB02X1452NLA SUPPORT BROIL | Discontinued |
| 740 | – | WB02X7226 CLIP WIRE | - |
| 790 | – | WB01X0365 SPEEDNUT | - |
| 32767 | – | 31-0395 PM MANUAL MINI | - |
| 32767 | – | 31-0415 INSTALL INSTRUCTIONS | - |
| 32767 | – | 31-0476 PM INSTRUCTION INSTL | - |
| 32767 | – | 39-4552 MANUAL USERS | - |
| 32767 | – | WB01X0448 WASHER | - |
| 32767 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 32767 | | WB1X536replaces WB01X0536 SCREW | $16.81 Parts Dr |
| 32767 | | WB1X536replaces WB01X0536 SCREW | $16.81 Parts Dr |
| 32767 | – | WB01X0549 SCR 10-12 A IHW 3/8 S | - |
| 32767 | – | WB01X5550 SCR 8/32 TF FLR 1/4 S | - |
| 32767 | – | WB02X3141 INSULATION | - |
| 32767 | – | WB09X0088 LOCKWASHER | - |
| 32767 | | WB17X171replaces WB17X0171 TERMINAL MALE & FEMALE | - |
| 32767 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 32767 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 32767 | – | WZ07X0035 NUT HEX | - |
