Hotpoint RB536*N1
Electric Range
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB536*N1Electric Range

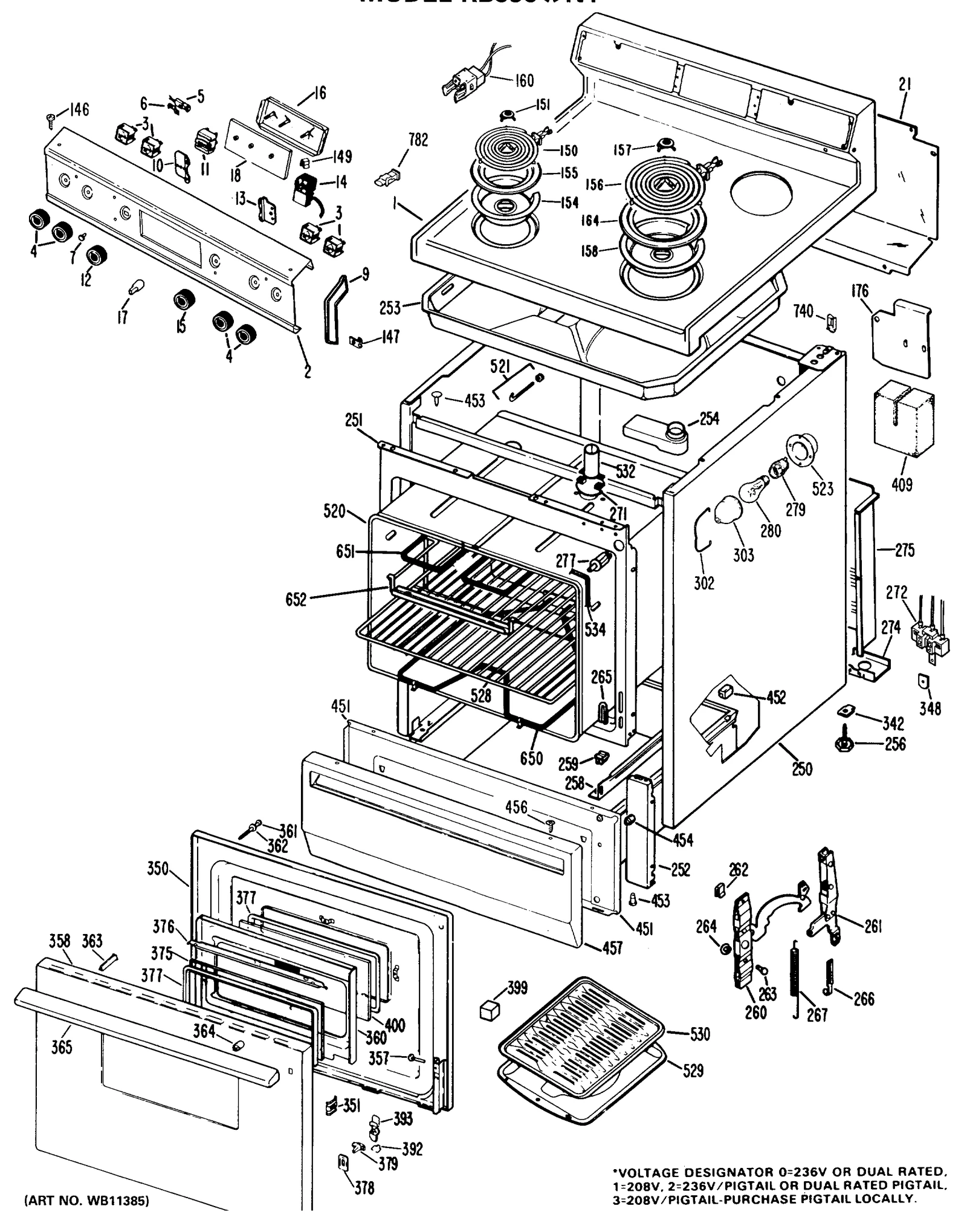

1 diagram121 parts
Parts Sections (1)
Diagram
Parts List
Parts in Parts List
121 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WB62X1469NLA COOKTOP WH | Discontinued |
| 1 | – | WB62X1472 COOKTOP HA | - |
| 1 | | COOKTOP AD | - |
| 2 | – | WB07X7051 TRIM CONTROL | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 | | WB03X5752NLA KNOB SURFACE UNIT | Discontinued |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 6 | | WB02X1185NLA CLIP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 9 | | WB07X6828NLA END CAP RH | Discontinued |
| 9 | | WB07X6829NLA END CAP LH | Discontinued |
| 10 | – | WB02X7305 BRACKET LH | - |
| 11 |  | WB22X5131NLA SWITCH, OVEN | Discontinued |
| 12 | – | WB03X5754 KNOB OVEN SWITCH | - |
| 13 | – | WB02X7306 BRACKET RH | - |
| 14 | | WB02X1394NLA SLEEVE | Discontinued |
| 14 | | WB02X6494NLA BARRIER | Discontinued |
| 14 | | THERMOSTAT, OVEN L.O. | - |
| 15 | | WB3X5751replaces WB03X5751 KNOB THERMOSTAT | - |
| 16 | – | WB19X5289 TIMER | - |
| 17 |  | WB3X5699replaces WB03X5699 "TIMER-KNOB" | $14.95 Part Advantage |
| 18 | | WB36X5574NLA CRYSTAL TIMER | Discontinued |
| 21 | – | WB49X0390 COVER BACK | - |
| 146 | – | WB01X5783 SCREW SHOULDER | - |
| 147 | – | WB01X0578 SPEEDNUT CAP | - |
| 149 | – | WB02X7702 CLIP CRYSTAL | - |
| 150 |  | WB30M1replaces WB30X5071 SURFACE UNIT, 6" | $32.76 Part Advantage |
| 151 | | WB32X0052NLA CENTER TRIM 6" UNIT | Discontinued |
| 154 |  | WB32X10012replaces WB32X0036 UNIT PAN 6" | $2.88 Part Advantage |
| 155 |  | TRIM RING 6" | $3.45 Part Advantage |
| 156 |  | WB30M2replaces WB30X5072 SURFACE UNIT, 8" | $44.65 Part Advantage |
| 157 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 158 |  | WB32X10013replaces WB32X5013 UNIT PAN 8" | $4.03 Part Advantage |
| 160 |  | RECEPTACLE ASM | $20.05 Part Advantage |
| 164 |  | TRIM RING 8" | $14.08 Parts Dr |
| 176 | – | WB49X0391 COVER LIGHT | - |
| 250 | – | NOT AVAIL CAVITY | - |
| 251 | – | WB56X6050 FRAME FRONT | - |
| 252 | – | WB49X5399 FILLER PANEL WH | - |
| 252 | – | WB49X5400 FILLER PANEL HA | - |
| 252 | – | WB49X5401 FILLER PANEL AD | - |
| 253 | – | WB49X5384 BOX COOKTOP | - |
| 254 | – | WB38X0050 VENT BODY | - |
| 256 | | WB02X7701NLA GLIDER | Discontinued |
| 258 | | WB39X0051NLA DRAWER GUIDE RH & LH | Discontinued |
| 259 | | WB02X0831NLA SLIDE GUIDE | Discontinued |
| 260 | – | WB10X5148 HINGE LEVER | - |
| 261 | | WB10X0148NLA HINGE SPT RH | Discontinued |
| 261 | | WB10X149replaces WB10X0149 HINGE SPT LH | - |
| 263 | | WB02X6195NLA PIN HINGE DOOR | Discontinued |
| 264 | | WB2X1082replaces WB02X1082 RING RETAINING | - |
| 265 | – | WB02X6342 GUIDE HINGE LEVER | - |
| 266 | | WB02X2506NLA HOOK DOOR SPRING | Discontinued |
| 267 | – | WB09X5100 SPRING DOOR | - |
| 271 | – | WB02X1626 BAFFLE | - |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 274 | | WB2X1908replaces WB02X1908 KNOCKOUT PLATE | - |
| 275 | – | WB59X0173 GUARD TERMINAL | - |
| 277 | – | WB24X0105 SWITCH, OVEN LIGHT | - |
| 279 |  | WB08T10026replaces WB08X5095 RECEPTACLE | $5.29 Part Advantage |
| 280 |  | 40A15replaces WX12X1510 40A15 | $8.96 Parts Dr |
| 302 | | WB2X7694replaces WB02X7694 LIGHT LENS BAIL | - |
| 303 |  | WB36X192replaces WB36X0389 OVEN LAMP LENS | $9.75 Part Advantage |
| 342 | – | WB02X7700 RETAINER LEG | - |
| 348 | | WB2X646replaces WB02X0646 PLATE-GROUND | - |
| 350 | – | WB55X5290 DOOR LINER | - |
| 351 | – | WB02X6270 SPACER PANEL | - |
| 357 |  | WB1X558Dreplaces WB01X0558 SCREW NAIL POINT | - |
| 358 | – | WB02X3140 INSULATION | - |
| 358 | | DOOR PANEL AD | - |
| 358 | – | WB56X7002 DOOR PANEL WH | - |
| 360 | – | WB49X0384 GUARD INSULATION | - |
| 361 | | WZ4X423Dreplaces WZ04X0423 SCREW-MTG HDL DOOR | - |
| 362 |  | WB02X32440replaces WB01X0119 CONTOURED WASHER | $9.20 ApplianceParts Pro |
| 363 | | WB02X6204NLA SPACER PANEL | Discontinued |
| 364 | | WB2X3245replaces WB02X3245 SPACER | - |
| 365 | | WB15X5160NLA HANDLE | Discontinued |
| 375 | – | WB36X0430 CRYSTAL WINDOW | - |
| 376 | – | WB02X2978 CLIP CRYSTAL | - |
| 377 | | WB07X1031NLA TRIM CRYSTAL | Discontinued |
| 378 | – | WB07X5022 TRIM PLATE LOWER OVEN | - |
| 379 | – | WB02X5410 CAM | - |
| 392 | – | WB02X5217 LINK CAM | - |
| 393 | – | WB09X5083 CAM SPRING | - |
| 397 | | WB1X5754replaces WB01X5754 SCREW 8-18 ABT 1/2 S | - |
| 399 | – | WB02X3285 PAD | - |
| 400 | – | WB36X0526 CRYSTAL WINDOW | - |
| 409 | – | WB02X3470 COUNTERWEIGHT | - |
| 451 | – | WB58X5011 DRAWER ASM | - |
| 452 | | WB02X0840NLA SLIDE TOP | Discontinued |
| 453 | | WB02X3394NLA PLUG BUTTON | Discontinued |
| 454 | | WB02X0584NLA BUMPER | Discontinued |
| 456 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 457 | | DRAWER PANEL WH | - |
| 457 | – | WB56X6091 DRAWER PANEL HA | - |
| 457 | – | WB56X6092 DRAWER PANEL AD | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 459 | – | WB01X5782 SCREW | - |
| 461 |  | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 520 | – | WB02X3141 INSULATION | - |
| 520 | | WB02X3471NLA CLIP CAPILLARY TUBEOVEN | Discontinued |
| 520 | – | WB53X5115 OVEN LINER | - |
| 521 | – | WB09X0088 LOCKWASHER | - |
| 523 | | WB02X7693NLA OVEN LIGHT CUP | Discontinued |
| 528 | | WB48X5044NLA OVEN RACKS | Discontinued |
| 529 |  | WB48X10056replaces WB49X5380 BROIL PAN | $16.74 Part Advantage |
| 530 | | WB48X10056replaces WB48X5002 BROILER PAN RACK | $16.74 Part Advantage |
| 532 | – | WB38X0072 TUBE VENT | - |
| 534 |  | WB2X1522replaces WB02X1522 GASKET SILICONE | $87.97 Parts Dr |
| 650 |  | BAKE UNIT 208/240V | $31.77 Part Advantage |
| 651 |  | WB44X173replaces WB44X0185 BROIL UNIT 208/240V L.O. | $22.62 Part Advantage |
| 652 | | WB02X1452NLA SUPPORT BROIL | Discontinued |
| 740 | – | WB02X7226 CLIP WIRE | - |
| 782 |  | TERMINAL BLOCK ASSY (2 P | - |
| 790 | – | WB01X0365 SPEEDNUT | - |
| 32767 | – | 31-0395 PM MANUAL MINI | - |
| 32767 | – | 31-0638 INSTALL INSTRUCTIONS | - |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 31-0860 INSTALL INSTR | - |
| 32767 | – | 39-4649 MANUAL USERS | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
