Model
Hotpoint RB536*R3
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB536*R3Electric Range
3 diagrams114 parts

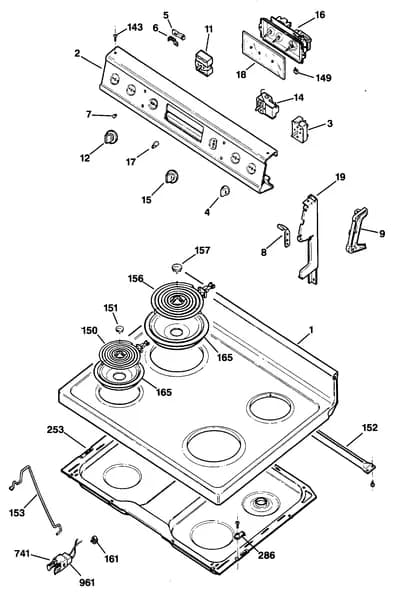

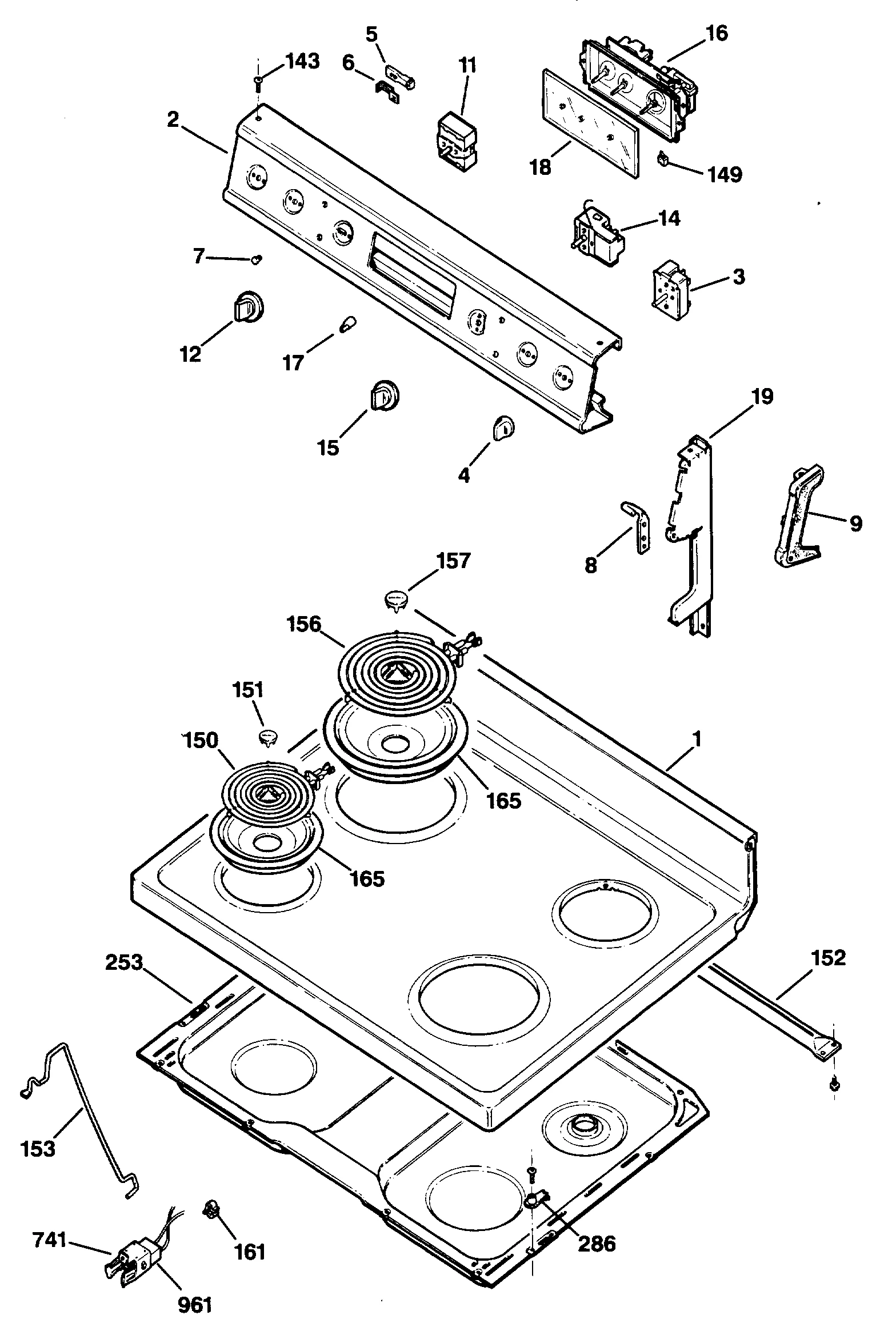

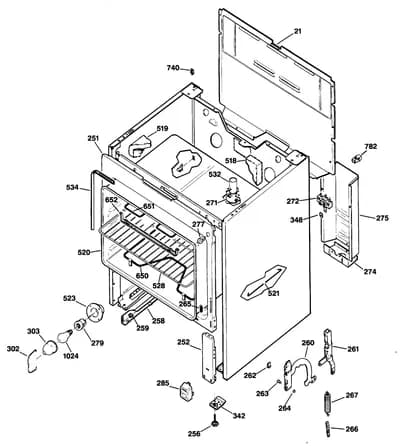

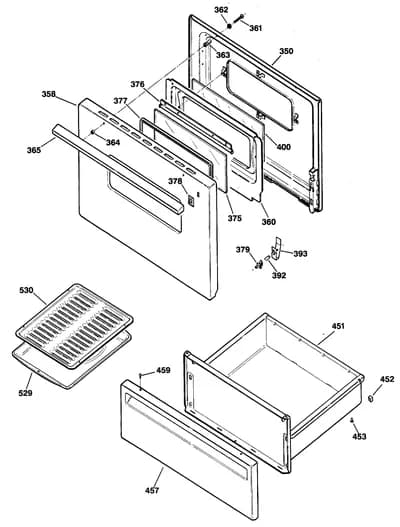

Parts Sections (3)
Diagram
Parts List
Parts in Parts List
48 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X5410 COOKTOP WH | - |
| 1 | – | WB62X5411 COOKTOP AD | - |
| 2 | – | WB36X5672 TRIM BRACKET ASM | - |
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 8 | | WB2X8126replaces WB02X8126 PIN HINGE R | - |
| 8 | – | WB02X8127 PIN HINGE L | - |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 11 |  | WB22X5131NLA SWITCH, OVEN | Discontinued |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB02X6494NLA BARRIER | Discontinued |
| 14 | | THERMOSTAT, OVEN L.O. | - |
| 16 |  | WB19X10008replaces WB19X5306 TIMER | - |
| 17 |  | WB3X5699replaces WB03X5699 "TIMER-KNOB" | $14.95 Part Advantage |
| 18 | | WB36X5574NLA CRYSTAL TIMER | Discontinued |
| 19 | | WB07X7165NLA PLATE END R | Discontinued |
| 19 | | WB07X7166NLA PLATE END | Discontinued |
| 143 | | WB01X5860NLA SCREW | Discontinued |
| 149 | – | WB02X7702 CLIP CRYSTAL | - |
| 150 |  | WB30M1replaces WB30X5109 UNIT ASM 6 INCH PLUG IN | $32.76 Part Advantage |
| 151 | | WB32X0052NLA CENTER TRIM 6" UNIT | Discontinued |
| 152 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 152 | – | WB02X8128 BAR TORSION | - |
| 153 | | WB02X8114NLA ROD SUPPORT | Discontinued |
| 156 |  | WB30M2replaces WB30K5027 8" SURFACE ELEMENT | $44.65 Part Advantage |
| 157 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 161 | | WB02X8115NLA CLIP WIRE | Discontinued |
| 165 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 165 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 253 | | WB49X5566replaces WB49X5499 BOX COOKTOP | - |
| 254 | – | WB01X0549 SCR 10-12 A IHW 3/8 S | - |
| 276 | – | WB2X8105 DIVIDER WIRING | - |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 354 |  | WB1X536replaces WB01X0536 SCREW | $16.81 Parts Dr |
| 461 | | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 530 |  | WB48X10056replaces WB48X5093 BROILER PAN RACK | $16.74 Part Advantage |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 741 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 752 | – | WB00X6542 340531 | - |
| 904 | – | WB01X5550 SCR 8/32 TF FLR 1/4 S | - |
| 961 |  | RECPT. ASM | $51.97 Parts Dr |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 31-1066 PM MANUAL MINI | - |
| 32767 | – | 39-4700 MANUAL USER | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
