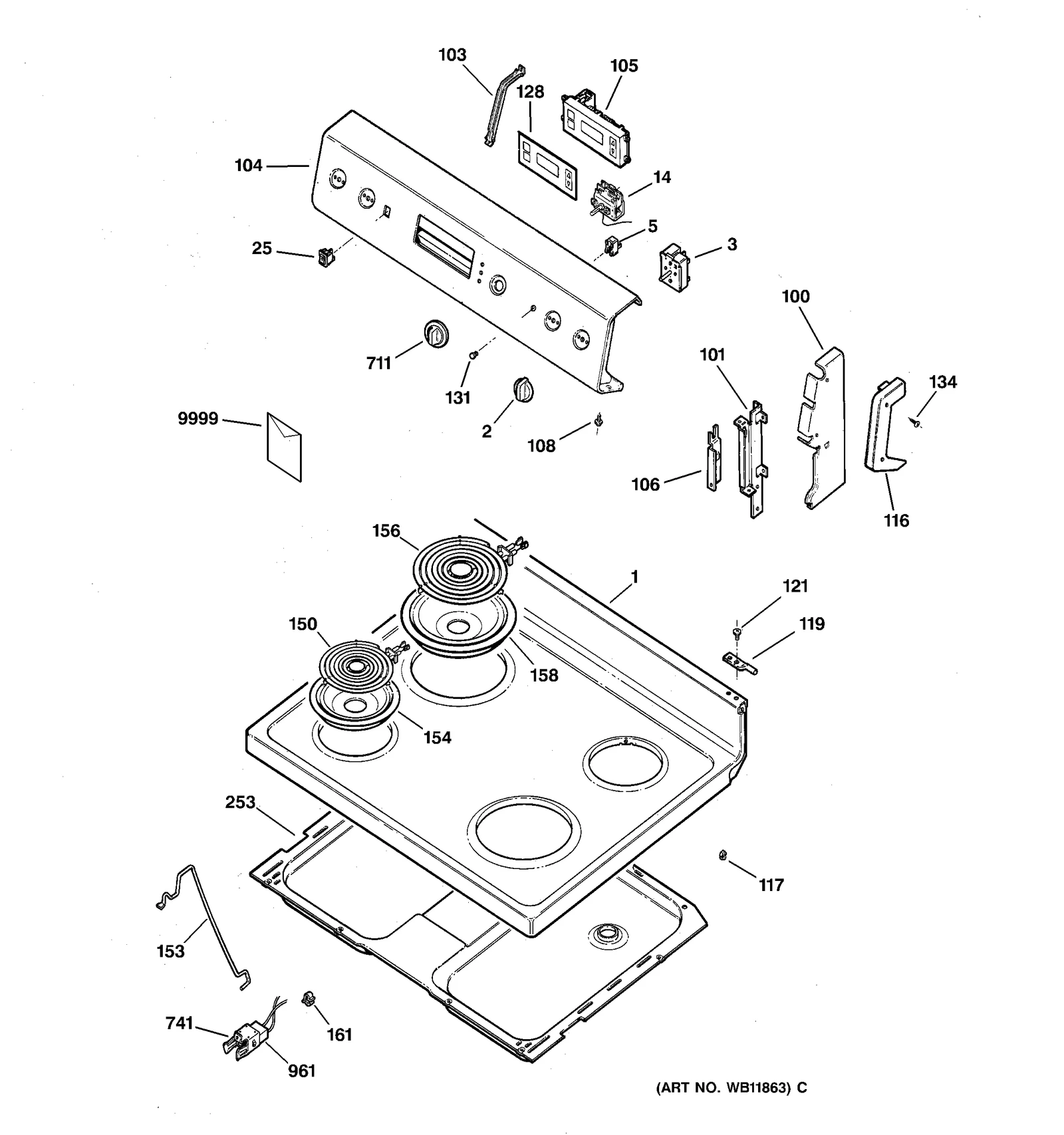

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | COOKTOP (AL) | - |
| 2 | | WB03K10084NLA INF KNOB (BLK) | Discontinued |
| 3 |  | INF SW CONTROL (2500W) | $28.40 Part Advantage |
| 3 |  | CONTROL INFINITE SWITCH | $30.50 Part Advantage |
| 5 |  | LAMP PILOT | $10.20 Part Advantage |
| 14 | | WB02X8441NLA CLIP THERMOSTAT | Discontinued |
| 14 |  | THERMOSTAT TOP HEAT SP | $129.57 Part Advantage |
| 25 | | WB24K10011NLA ROCKER LIGHT SWITCH (BK) | Discontinued |
| 100 | | COVER END RT (BLACK) | - |
| 100 | | COVER END LT (BLACK) | - |
| 101 | | WB37K17replaces WB37K0017 PLATE END RIGHT | - |
| 101 | | WB37K18replaces WB37K0018 PLATE END LEFT | - |
| 103 | | BRACKET MTG TIMER | - |
| 104 | – | WB36K10185 TRIM CONTROL (BLK) | - |
| 105 |  | WB27T10469replaces WB27K10028 CLOCK TOD LED-(THERMO) | $83.15 Part Advantage |
| 106 | | SUPPORT HINGE CKTP RT | - |
| 106 | | SUPPORT HINGE CKTP LT | $7.50 ApplianceParts Pro |
| 108 |  | WB01X23501replaces WB01T10020 SCREW 8-32 TPT FLR 215 SN | $9.71 Parts Dr |
| 108 | | WB01X5716NLA SCREW (BLK) | Discontinued |
| 116 |  | END CAP RT (BLACK) | - |
| 116 | | WB07K10004NLA END CAP LT (BLACK) | Discontinued |
| 117 | | WB2K17replaces WB02K0017 PIN LOCATOR FRONT | - |
| 119 |  | PIN HINGE | Discontinued |
| 121 |  | WB1K5119replaces WB01K0001 SCREW | $7.18 Parts Dr |
| 128 | – | WB11K10018 OVERLAY (BLK) | - |
| 131 |  | WB25T10041replaces WB25K0002 LENS | $5.09 Part Advantage |
| 134 | | SCREW-MTG END CAP (BLACK | - |
| 150 |  | WB30X24401replaces WB30T10027 SURFACE UNIT ASSY 6" | $43.06 Part Advantage |
| 153 |  | ROD SUPPORT | $5.84 Part Advantage |
| 154 |  | 6 INCH CHROME BURNER BOWL - ELEC | $7.42 Part Advantage |
| 156 |  | WB30T10074replaces WB30T10033 SURFACE UNIT ASSY 8" | $49.42 Part Advantage |
| 158 |  | 8 INCH CHROME BURNER BOWL - ELEC | $9.50 Part Advantage |
| 161 | | WB02X8115NLA CLIP WIRE | Discontinued |
| 212 |  | WB1K2replaces WB01K0002 SPEEDNUT | $7.95 ApplianceParts Pro |
| 253 | | WB64K10002NLA BOX-COOKTOP | Discontinued |
| 711 | | KNOB THERMOSTAT (BLK) | - |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 961 |  | WB17T10006replaces WB17T10001 TERMINAL BLOCK | $15.34 Part Advantage |
| 9999 | – | 31-20763 MANUAL MINI/ELEC. DIAG. | - |
| 9999 | – | 49-8971 MANUAL USE & CARE | - |
